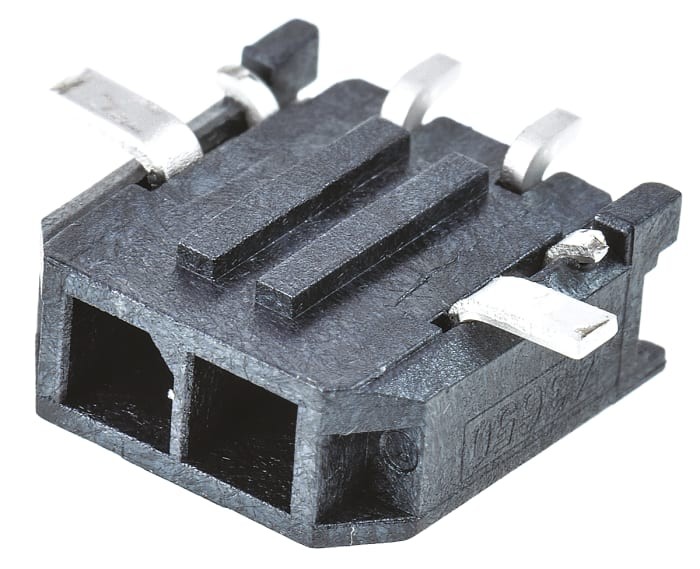

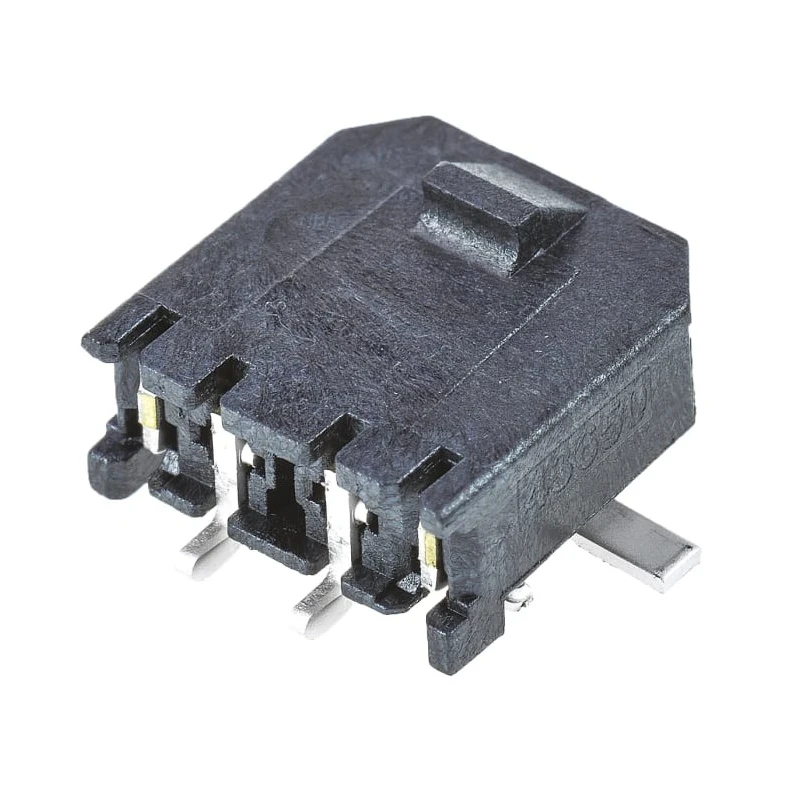

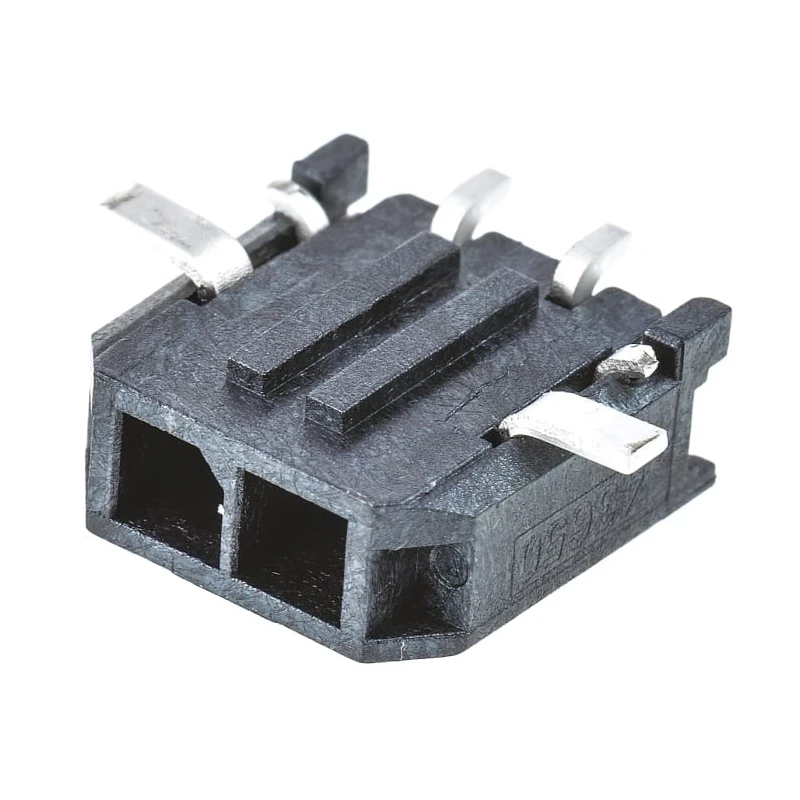

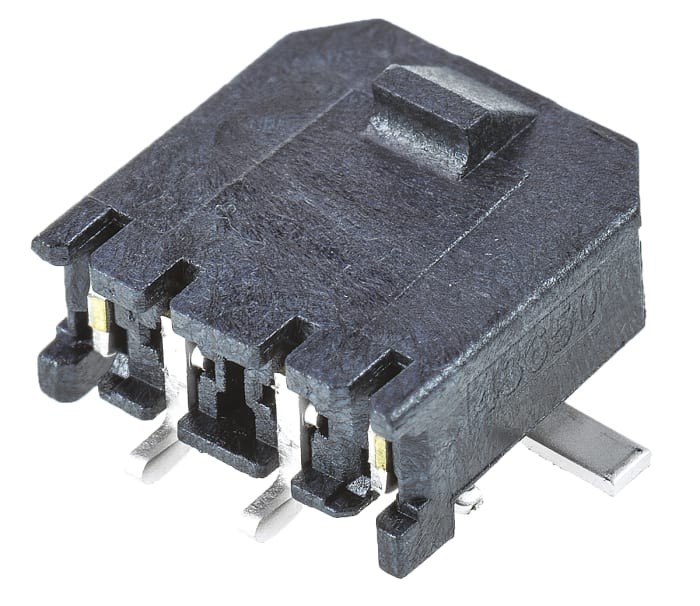

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 2 Contacts 3 mm Pitch 1 Row Shrouded 43650-0214
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating up to 5A ensuring reliable power delivery.
- Constructed with high temperature thermoplastic housing suitable for IR reflow soldering.
- Features a positive latching system for secure mating and prevention of accidental disconnection.
- Brass contacts plated with gold provide durable and corrosion-resistant connectivity.
- Right angle orientation optimized for surface mounting on PCB boards.
- Operating temperature range from -40°C to 105°C for varied industrial environments.
- Designed for wire-to-board connector systems with single row configuration.
- Solder termination type includes tabs for firm connection to PCB.
Product Description
Molex 43650-0214 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a compact power distribution connector designed for electronic applications requiring reliable current handling and secure connections. This PCB header features a 3 mm pitch with 2 contacts in a single row and a shrouded housing to protect terminals.
The high temperature thermoplastic housing is rated to withstand IR reflow soldering temperatures up to 265°C, ensuring durability during manufacturing processes. Brass contacts with gold plating provide excellent conductivity and resistance to corrosion, supporting a maximum current of 5A and a voltage rating of 250V. The positive latching mechanism enhances connection security by preventing accidental disconnection in industrial and commercial applications.
This right angle, surface-mount PCB header is ideal for wire-to-board systems and incorporates solder tabs for a robust mechanical and electrical attachment to the PCB. Its operating temperature range from -40°C to 105°C makes it suitable for a wide variety of operating environments including industrial controls, telecommunications, consumer electronics, and medical devices.
High current capability up to 5A with compact 3 mm pitch format. Durable high temperature thermoplastic housing ensures manufacturability with IR reflow. Positive latching locking ramps prevent accidental connector disconnection.
Gold-plated brass contacts provide stable and reliable electrical connections. Right angle orientation optimizes PCB mounting and wire routing. Solder tabs secure the header firmly to the PCB surface. Wide operating temperature range enables use in harsh environments.
Manufactured in Mexico, meeting international quality standards.
This Molex Micro-Fit 3.0 Series PCB header is widely applied in low to mid-range power electronic products including communication equipment, consumer appliances, medical technology, and industrial automation. Its robust design and secure connections make it a preferred choice for engineers seeking reliable wire-to-board PCB Headers.
Explore our extensive catalog for more Molex connectors and PCB header solutions suitable for demanding industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 5A, ensuring reliable power delivery for various applications.
The voltage rating for this header is 250V, making it suitable for a range of electronic applications.
It operates within a temperature range of -40°C to 105°C, allowing for use in diverse industrial environments.
The housing is made from high temperature thermoplastic, while the contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
It features solder termination with tabs that provide a firm connection to the PCB, ensuring mechanical stability.
This header is designed for wire-to-board connector systems, facilitating secure connections between wires and PCB.
The pitch size is 3 mm, which is compact and suitable for various electronic applications.
This model has 2 contacts in a single row configuration, optimized for surface mounting.
It features a right angle orientation, which is optimized for surface mounting on PCB boards.
This product is manufactured in Mexico, adhering to international quality standards.
It is widely applied in low to mid-range power electronic products, including communication equipment, consumer appliances, medical technology, and industrial automation.
Yes, it includes a positive latching system that enhances connection security and prevents accidental disconnection.
