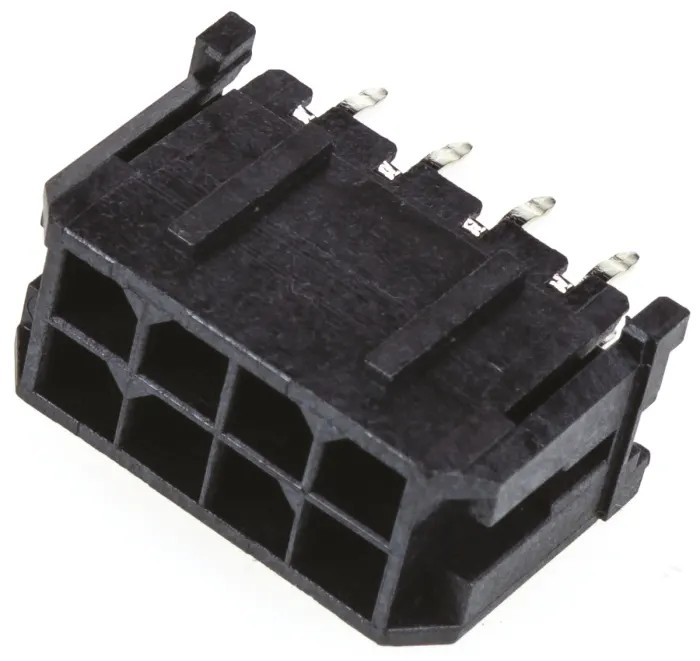

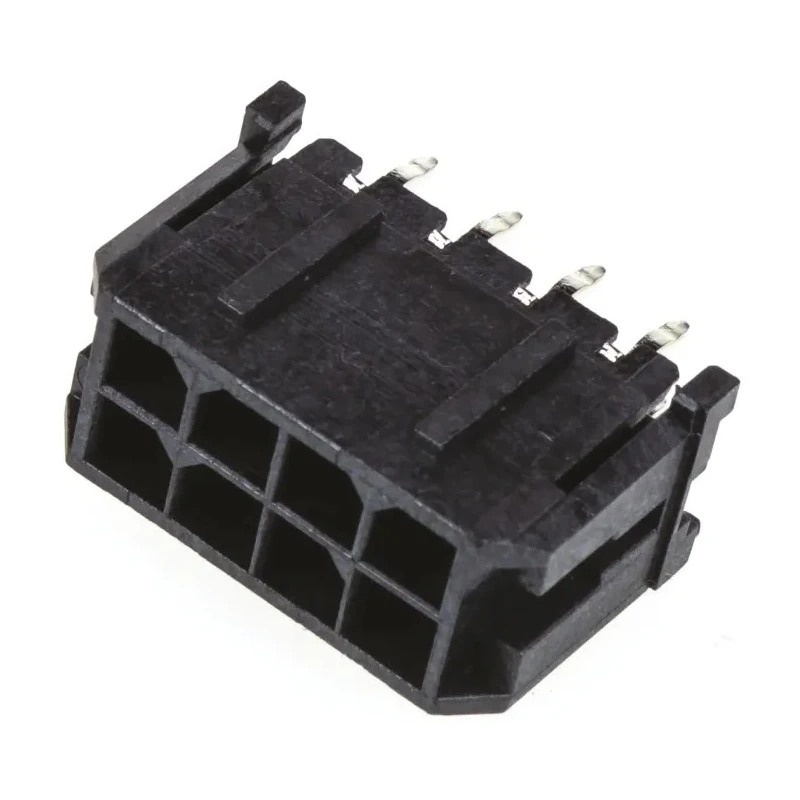

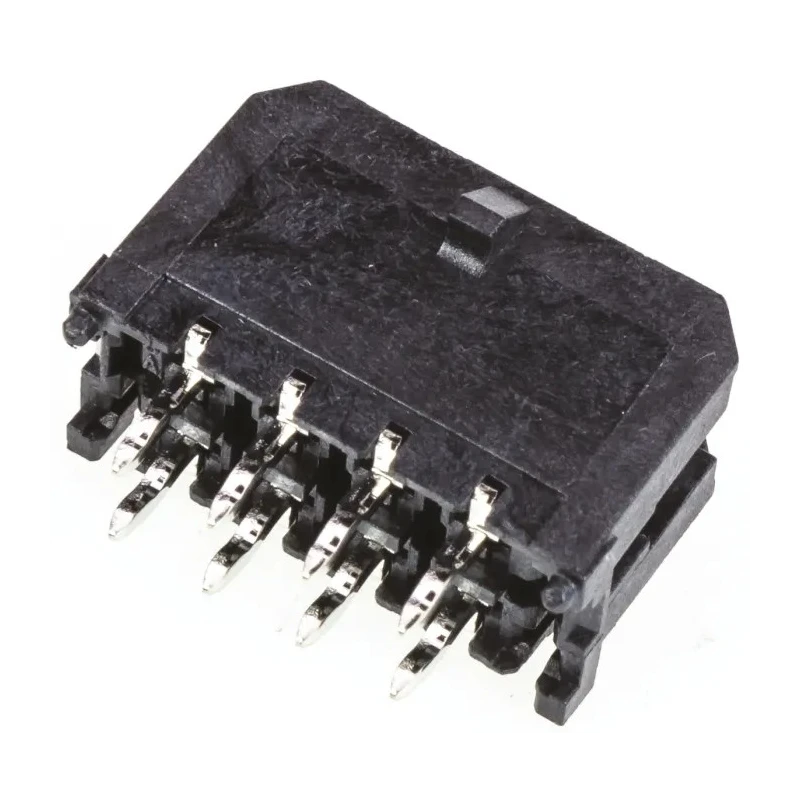

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header, 8 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0813

Molex 43045-0813 Micro-Fit 3.0 Series Straight Through Hole PCB Header is a wire-to-board connector featuring 8 gold plated brass male contacts arranged in 2 rows with a 3 mm pitch. This shrouded header is housed in high temperature thermoplastic material that complies with UL 94V-0 standard, capable of withstanding reflow soldering temperatures up to 265°C. The product delivers a current rating of 5A and is rated for up to 250V voltage applications.

The design incorporates positive latching housing locks to ensure secure mating and prevent accidental disconnection. The PCB header includes polarizing pegs for precise alignment and kinked solder legs on certain part numbers to enhance PCB retention. Its versatile through hole mounting method is compatible with SMT processes, making it suitable for efficient assembly with reduced costs.

This connector is ideal for low to mid power applications across various industries including military (COTS), solar power systems, consumer electronics such as dryers, freezers, refrigerators, washing machines, as well as data communications equipment like routers and servers, medical devices, telecommunications, and gaming terminals.

Provides high current carrying capacity in a compact form factor reducing board space requirements. Housing material ensures durability and stability under high temperature soldering processes. Brass contacts with gold plating offer excellent electrical conductivity and corrosion resistance.

Secure mating is guaranteed through positive latching mechanisms complemented by PCB polarizing pegs. Wide operating temperature range enables diverse environmental usage. Through hole mount design supports reliable mechanical and electrical connection to PCBs.

Compatible with SMT manufacturing processes, promoting cost-effective production. Fully isolated dual beam terminal contacts reduce electrical arcing and improve safety.

Molex Micro-Fit 3.0 Series PCB Headers support industrial and laboratory applications requiring dependable wire-to-board power distribution connectors. These connectors cater to manufacturing, HVAC, telecommunications, and commercial electronics, enhancing reliability and ease of assembly. Explore the full Molex Micro-Fit 3.0 range and related connectors on EnvMart for your electronic component needs.
