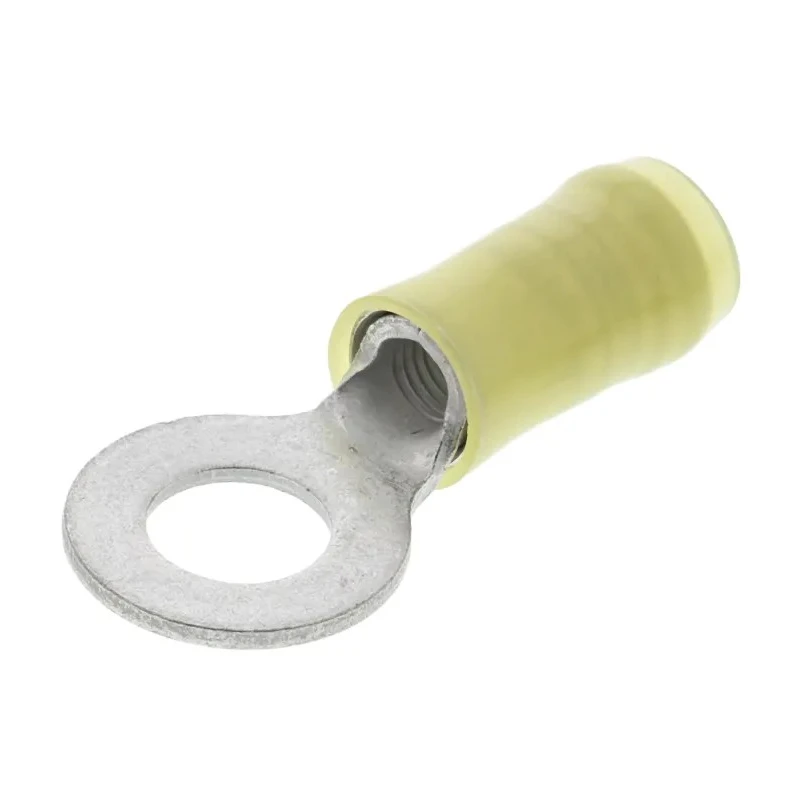

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size, 12 AWG to 10 AWG Yellow Nylon Sleeve 35273

TE Connectivity 35273 PIDG Insulated Ring Terminal is a high-quality wire crimp terminal designed for dependable and uniform electrical connections in challenging circuit environments. It accommodates wire sizes from 12 AWG up to 10 AWG and features an M6 stud size with a yellow nylon insulation sleeve for quick and reliable wire identification.

The terminal body is precision-formed from high conductivity copper with a tin-plated contact surface ensuring low resistance and enhanced conductivity. The barrel incorporates serrations to provide maximum contact and tensile strength following crimping, while the internal copper sleeve enhances insulation support and protects against wire fraying. The nylon insulation sleeve is color-coded yellow to aid in size recognition and tooling identification.

Innovation in design includes a funnelled wire entry that prevents wire strands from turning back, enabling efficient wire insertion in high-speed production environments. The construction process supported by specialized tooling ensures a reliable uniform crimp essential for electrical performance and durability.

These PIDG insulated ring terminals comply with recognized industry standards, including CSA LR7189, RoHS, and UL E13288. Their robustness and versatility make them suitable for a broad array of industrial, commercial, and aerospace applications, including instrumentation, control systems, panel boxes, and motors.

Constructed with a high conductivity copper contact body for efficient electrical performance. Features a color-coded yellow nylon insulation sleeve for enhanced wire size identification. Includes serrations in the wire barrel to maximize contact and tensile strength after crimping.

Barrel contains a copper sleeve to improve wire insulation support and prevent fraying. Designed with a funnelled wire entry for easy and fast wire insertion. Meets or exceeds requirements of MIL-T-7928, Type II, Class 1 and 2 standards.

Supports wire sizes from 12 AWG (2.6 mm²) up to 10 AWG (6.6 mm²). Rated for maximum operating temperature of 105°C, suitable for high-temperature applications. Suitable for diverse applications including instruments, control panels, lighting, power supplies, transportation, lifting equipment, motors, aerospace, and appliances.
