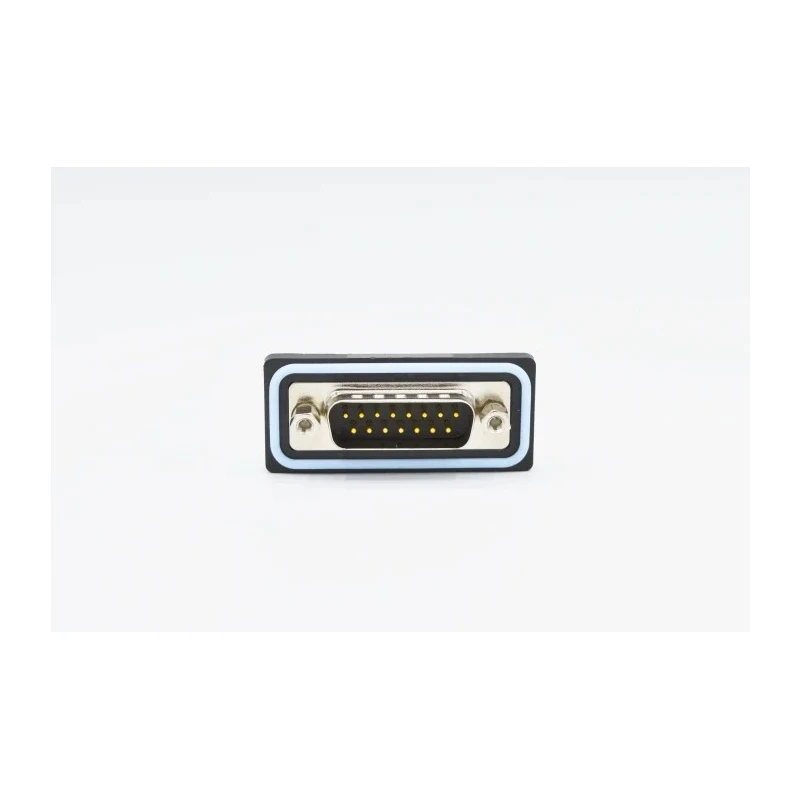

Norcomp SDF 15-Way Right Angle 2.74 mm Pitch Surface D-Sub Connector with 4-40 Screw Male SDF-R15-113L011

The Norcomp SDF-R15-113L011 is a high-performance 15-way right angle surface D-Sub connector engineered for printed circuit board mounting applications. Designed with a robust polybutylene terephthalate housing and gold-plated brass contacts, this connector ensures reliable electrical transmission and long-term operational stability. Its standard D-Sub configuration and right-angle orientation facilitate efficient PCB integration, especially in compact or high-density designs.

With a voltage rating of 1000V and a current capacity of 5A, the SDF-R15-113L011 is suitable for a wide range of industrial, computing, and general electronic applications. The connector is equipped with 4-40 screw mounting hardware, allowing for secure mechanical attachment to substrates or panel interfaces. Its male gender and standard D layout make it compatible with established D-Sub interfaces used across electronic equipment and control systems.

This connector operates reliably in environments with temperatures ranging from -25°C up to 85°C, and its insulator is rated UL 94V-0 for enhanced safety and performance under thermal stress. The nickel-plated steel shell combined with a silicon O-ring offers improved resistance against corrosion and environmental contaminants, contributing to product longevity and continuous operation.

The 2.74 mm contact pitch supports efficient space utilization on PCBs, and the gold plating on contacts optimizes conductivity and minimizes signal loss. This makes the SDF series connector ideal for applications requiring secure and high-quality signal transmission, including data acquisition, embedded systems, industrial controls, and instrumentation panels.

Industrial users benefit from a connector that is easy to mount via surface technology, fulfills stringent electrical specifications, and is built to withstand vibration and handling stress encountered in industrial, laboratory, and commercial electronics environments.

Offers secure PCB integration for industrial, computing, and embedded system applications. Standard D-Sub flange with robust mounting provides reliability under harsh conditions. UL 94V-0 rated insulator and nickel-plated steel shell deliver safety and durability.

Ideal for signal, control, and interface connections in leading-edge industrial designs. Designed for high-density layouts with a fine contact pitch for space-limited electronics. Explore more D-Sub Connectors and Norcomp products in the Electronics & Electricals category to find solutions tailored to your project needs and application requirements.
