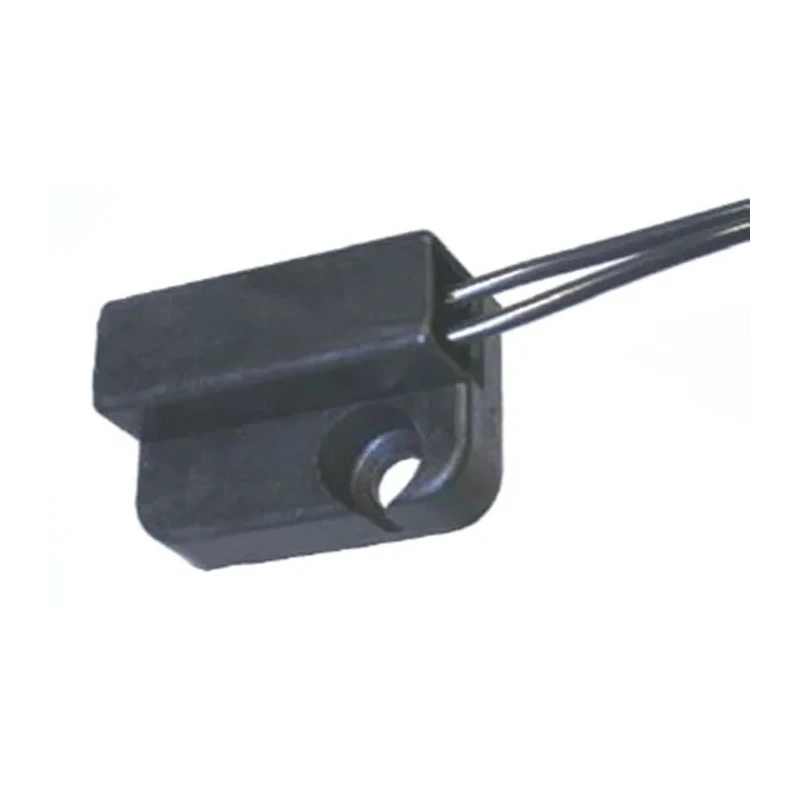

RS PRO Reed Switch Rectangular ABS Housing NO/NC 2.75A 140V AC 200V DC 100Hz 42x27x24.5 mm 136-5756

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Reed Switch Rectangular ABS Housing NO/NC 2.75A 140V AC 200V DC 100Hz 42x27x24.5 mm 136-5756

Name: RS PRO Reed Switch Rectangular ABS Housing NO/NC 2.75A 140V AC 200V DC 100Hz 42x27x24.5 mm 136-5756
Brand: RS PRO
SKU: 206090
Price: 22.6 USD
Availability: InStock



Category Magnetic Proximity Switch Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Length	42mm
Model	136-5756
Depth	24.5mm
Width	27mm
Housing Material	ABS
Series	RS PRO
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Switching Current	2.75A
Switching Frequency	100Hz
Terminal type	Wire
Body Style	Rectangular
Output Function	NO/NC
Standards/Approvals	RoHS
Switching DC Voltage	200V dc
Switching AC Voltage	140V ac

Key Features

Rectangular ABS housing ensures durability and easy installation.
Normally open and normally closed contact function for versatile circuit control.
Rated switching current of 2.75 amperes for reliable performance.
Supports switching voltages of 140V AC and 200V DC.
High switching frequency of 100 Hz suitable for rapid response.
Operates reliably between -40°C to 85°C temperature range.
Compact dimensions of 42 mm length, 27 mm width, and 24.5 mm depth.
Equipped with 2 core black hook up wires of 0.34 mm² PVC insulation.

Product Description

RS PRO 136-5756 is a rectangular reed switch designed with an ABS plastic housing, providing robust durability and electrical insulation. This reed switch features a normally open (NO) and normally closed (NC) output function and is well suited for use in magnetic proximity sensing applications where ferrous metal detection is required.

The device supports a switching current of 2.75 amperes and a maximum switching voltage of 140 volts AC and 200 volts DC, making it suitable for various electrical circuit control tasks. It operates at a switching frequency of 100 Hz, allowing for quick activation and deactivation cycles, which is valuable in automation and robotics scenarios.

With an operating temperature range of -40°C to 85°C, the switch performs reliably under a wide range of environmental conditions. Compact physical dimensions of 42 mm length, 27 mm width, and 24.5 mm depth enable installation in confined spaces.

The reed switch includes two core cables, black 0.34 mm² hook-up wire with PVC insulation rated for 105°C, facilitating reliable electrical connections. It complies with RoHS environmental standards, ensuring the product adheres to European regulations for hazardous substances.

Rectangular ABS housing offers durability and protection. NO/NC output function for flexible electrical switching. Rated for 2.75 A switching current at 140 V AC and 200 V DC. Supports a switching frequency of 100 Hz for fast switching.

Wide operating temperature range from -40°C to 85°C. Compact dimensions suitable for various installations. Two core black 0.34 mm² wires with PVC insulation included. RoHS compliant for environmental safety and regulation adherence.

Made in the United Kingdom ensuring high manufacturing standards.

RS PRO's range of reed switches is ideal for industrial applications such as robotics, automated production lines, gate closed detection, safety guards, and other magnetic proximity sensing uses. Their reliability, compact size, and robust build make them suitable for integration into many electrical and automation systems.
