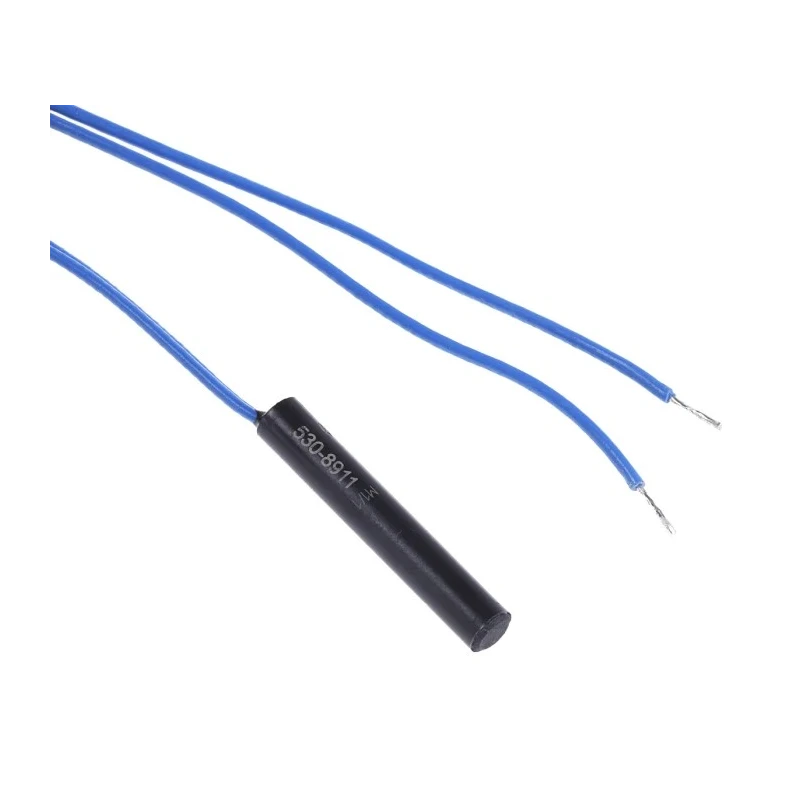

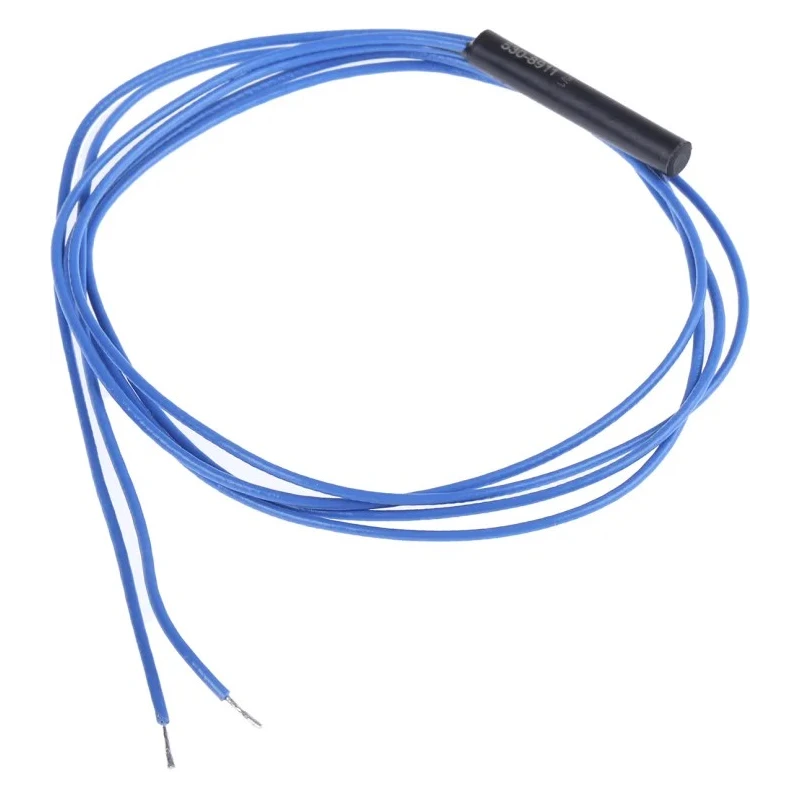

RS PRO Cylindrical Reed Switch 90V AC, 1A Surface Mount with Polyvinyl Chloride Housing 530-8911

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Cylindrical Reed Switch 90V AC, 1A Surface Mount with Polyvinyl Chloride Housing 530-8911

Name: RS PRO Cylindrical Reed Switch 90V AC, 1A Surface Mount with Polyvinyl Chloride Housing 530-8911
Brand: RS PRO
SKU: 194641
Price: 24.69 USD
Availability: InStock



Category Magnetic Proximity Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	25.5mm
Model	530-8911
Depth	4mm
Mount Type	Surface
Housing Material	Polyvinyl Chloride
Series	RS PRO
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Switching Current	1A
Terminal type	Wire
Body Style	Cylindrical
Standards/Approvals	RoHS
Switching DC Voltage	90V dc
Switching AC Voltage	90V ac
Assemtech Reed Switch 240V ac, 0.5ABrand	Assemtech
Celduc Cylindrical Magnetic Proximity Sensor, NO, 48V, 400mA, IP67Brand	Celduc
RS PRO Reed Switch 400V ac, 0.5ABrand	RS PRO

Key Features

This miniature reed switch features a 4 mm diameter cylindrical body with polyvinyl chloride housing.
It has normally open (NO) contacts that close in the presence of a magnetic field.
The switch has a switching AC voltage and DC voltage rated at 90V each.
Operates within temperature range from -20°C to 70°C for reliable performance.

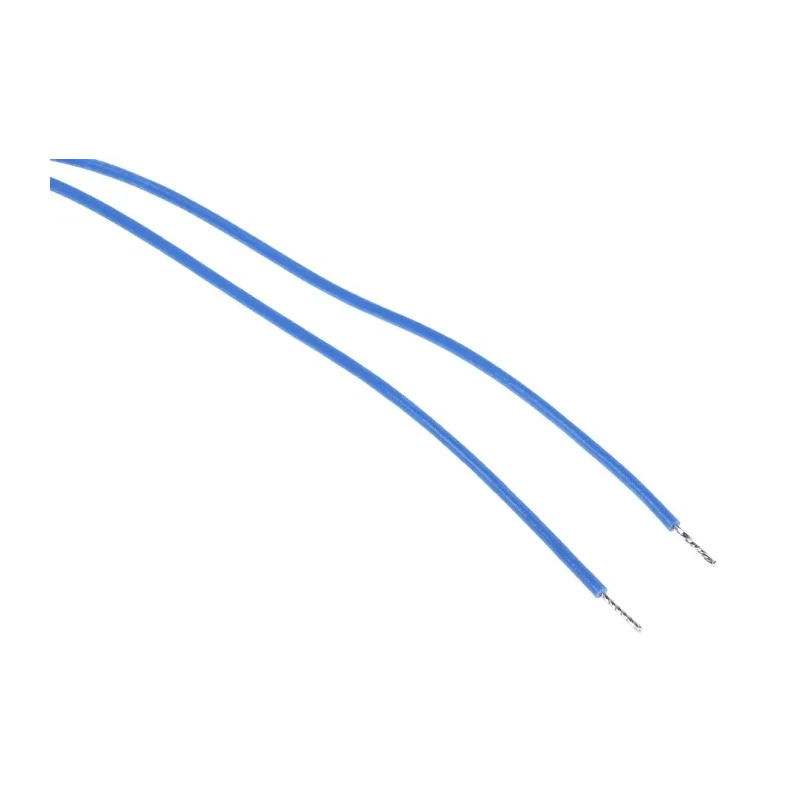

Fitted with a 500 mm PVC cable for easy electrical connection.
Designed for position sensing, limit switching, end position detection, and safety control in machinery.
The compact design allows mounting on fixed surfaces while actuating magnets can be placed on moving parts.
Complies with RoHS standards ensuring environmental safety.

Product Description

RS PRO 530-8911 Reed Switch is a high-quality cylindrical reed proximity switch featuring a compact 4 mm diameter body with robust polyvinyl chloride housing.

This miniature module is equipped with normally open contacts that activate in the presence of a magnetic field, making it ideal for applications such as position sensing, limit switching, and machinery safety control. The device is surface-mounted and includes a 500 mm PVC cable for straightforward installation and wiring.

Engineered for industrial environments, the switch reliably operates in temperatures ranging from -20°C to 70°C. Its compact size allows it to be mounted on fixed surfaces while the corresponding actuating magnet is fitted to moving parts, enabling precise end position detection and control.

4 mm diameter cylindrical polyvinyl chloride body for durability. Normally open contacts activated by magnetic proximity. Switching current rated at 1A with 90V AC and DC voltage capability. Operating temperature range from -20°C to 70°C for diverse environments.

Fitted with a 500 mm PVC cable for secure electrical connections. Complies with RoHS environmental standards. Suitable for industrial automation, security systems, linear actuators, and machinery safety applications.

The RS PRO 530-8911 Reed Switch represents a dependable component choice for engineers and system integrators seeking precision electromagnetic switching in compact form factors. It is widely used in electrical automation, industrial controls, and security switch applications worldwide.

Explore the full RS PRO range for comprehensive solutions in magnetic proximity sensing and switching technologies at EnvMart.
