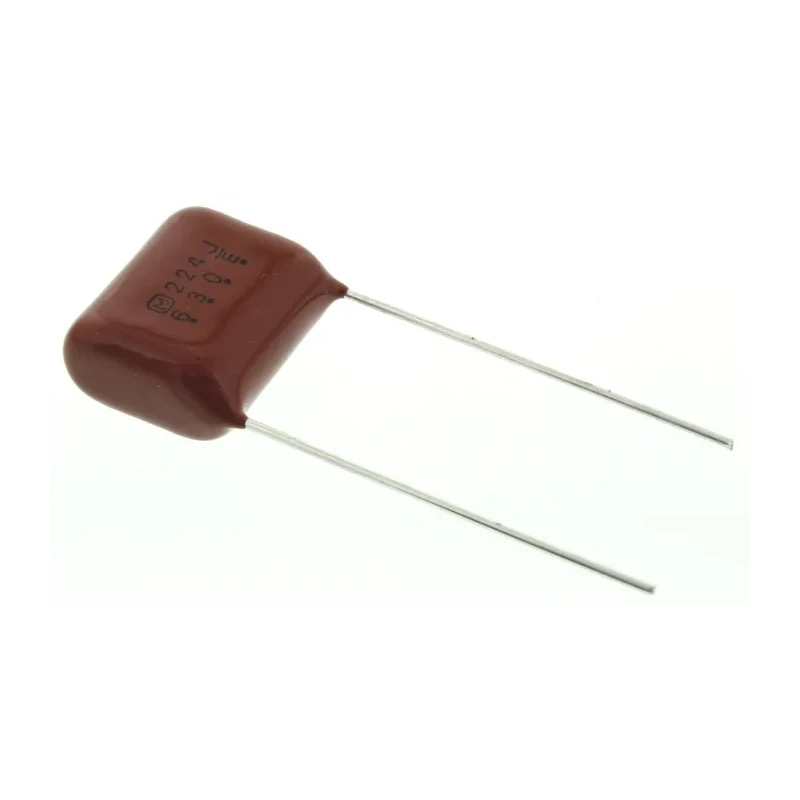

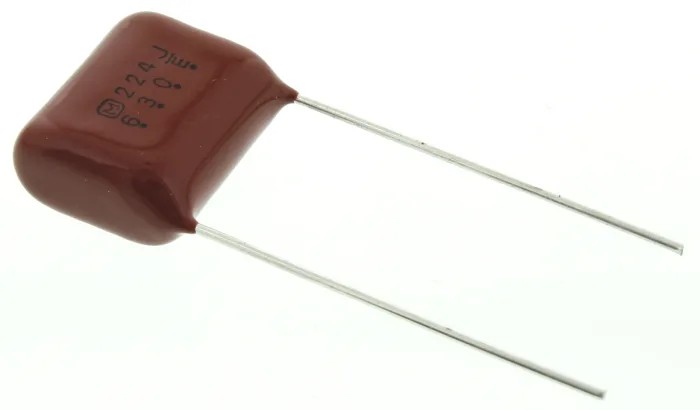

Panasonic Film Capacitor 220 nF 630V AC 630V DC Through Hole ECQE6224JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 16.5mm |
| Length | 18.5mm |
| Model | ECQE6224JF |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 220nF |
| Rated AC Voltage | 630V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Features flame retardant epoxy resin coating for safety.
- Metallised polyester film construction ensures durability and reliability.
- Self-healing and non-inductive design for optimal electrical performance.
- Lead pitch of 15 mm and lead diameter of 0.8 mm facilitate secure PCB assembly.
- Complies with automotive standard AEC-Q200 for high reliability in automotive applications.
- Operates reliably up to 105°C maximum temperature.
- Meets international standards including EN 60384-14, CSA E60384-14, and UL 60384-14.
- Recommended for general purpose applications in electronic circuits and power connectors.
Product Description
Panasonic ECQE6224JF is a polyester film capacitor offering 220 nF capacitance with a voltage rating of 630V AC and 630V DC. Designed for through hole mounting, this capacitor features a metallised polyester film construction combined with flame retardant epoxy resin coating, providing both safety and robust electrical characteristics.
The capacitor is self-healing and non-inductive, ensuring high reliability and performance in various electronic circuits. It features a lead pitch of 15 mm and lead diameter of 0.8 mm, allowing for straightforward insertion on PCBs. Dimensions include 18.5 mm length, 16.5 mm height, and 9 mm width, making it suitable for compact electronic assemblies.
Certified to automotive standard AEC-Q200, the ECQE6224JF capacitor is qualified for use in automotive environments requiring durable components. It can operate at temperatures up to 105°C, ensuring stability under demanding conditions. Compliance with EN 60384-14, CSA E60384-14, and UL 60384-14 standards further demonstrates its quality and safety for industrial and commercial electronic applications.
This capacitor is recommended for general purpose use in electronic designs, including in power and connector circuits, helping improve circuit efficiency and reliability. Flame retardant epoxy resin coating enhances safety and durability.
Metallised polyester film construction provides excellent electrical properties. Self-healing and non-inductive characteristics ensure longevity and stable performance. Lead pitch 15 mm and lead diameter 0.8 mm for easy mounting.
Qualified to AEC-Q200 automotive standard for enhanced reliability. Maximum operating temperature of 105°C for demanding environments. Compact size suitable for various PCB designs. Certified to EN 60384-14, CSA E60384-14, and UL 60384-14 standards.
Suited for general purpose and automotive electronic applications. Explore more Panasonic Film Capacitors and related electronic components on EnvMart to find reliable solutions for your industrial and automotive projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 nF.
It has a rated AC voltage of 630V and a rated DC voltage of 630V.
The maximum operating temperature is 105°C.
The dimensions are 18.5 mm in length, 16.5 mm in height, and 9 mm in width.
The lead pitch is 15 mm and the lead diameter is 0.8 mm.
This capacitor is designed for through hole mounting.
It complies with the AEC-Q200 automotive standard for high reliability.
It features a metallised polyester film construction with a flame retardant epoxy resin coating.
It meets international standards including EN 60384-14, CSA E60384-14, and UL 60384-14.
It is recommended for general purpose applications in electronic circuits and power connectors.
These features ensure optimal electrical performance and longevity in various electronic circuits.
The country of origin for this capacitor is India.
