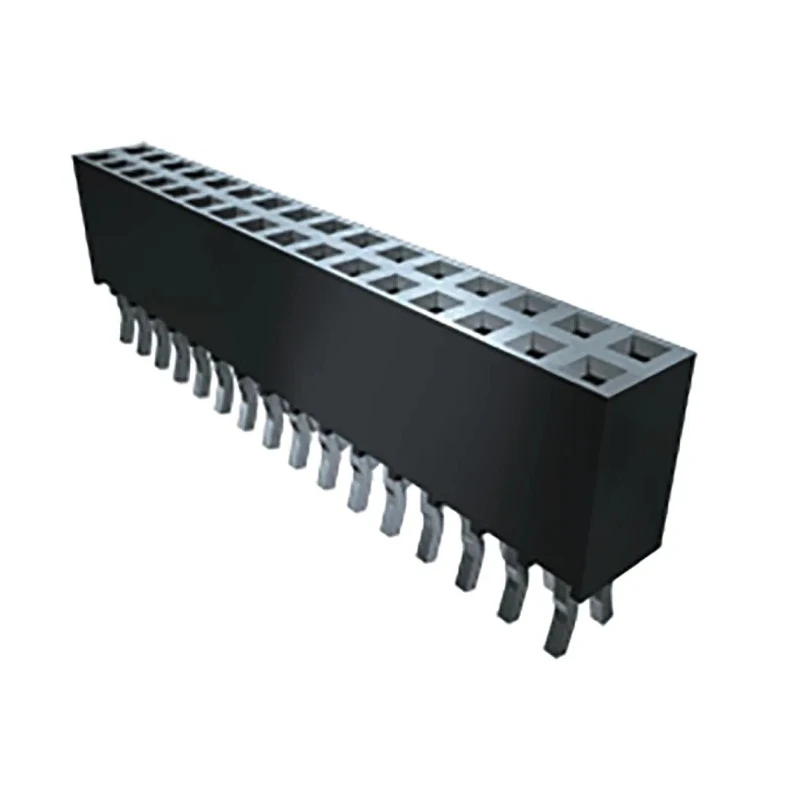

Samtec SSQ Series Straight Through Hole PCB Socket 46-Contact 2 Row 2.54 mm Pitch Solder SSQ-123-03-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 655V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.3A |
| Model | SSQ-123-03-G-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for self-nesting applications |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 46 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
| Row Pitch | 2.5mm |
Key Features
- High-quality PCB socket offering 46 female contacts.
- Two rows with 2.54 mm pitch suitable for board-to-board connectivity.
- Liquid Crystal Polymer housing ensures durability and stability.
- Gold plated bronze contacts provide excellent conductivity and corrosion resistance.
- Supports maximum continuous current of 6.3 A and voltage of 655 V.
- Designed for through-hole mounting with a straight orientation and standard termination type as solder.
- Operational temperature range from -55°C to 125°C to suit various industrial environments.
- Features Tiger Buy™ contact system with low insertion force contacts and square tails for easy assembly.
Product Description
Samtec SSQ-123-03-G-D Series Straight Through Hole PCB Socket is a high-performance connector designed for reliable board-to-board connections in industrial and electronic manufacturing applications. Featuring 46 female contacts arranged in two rows with a standardized 2.54 mm pitch, this socket supports robust current ratings up to 6.3 A and voltages up to 655 V, suitable for demanding PCB assembly environments.
The socket housing is made from durable Liquid Crystal Polymer, providing excellent mechanical strength, heat resistance, and stability. Contacts are crafted from bronze with gold plating, ensuring superior electrical conductivity and protection against corrosion, thereby enhancing long-term reliability.
Designed for through-hole mounting with straight orientation, the Samtec SSQ socket accommodates various assembly and soldering processes. Its Tiger Buy™ contact system includes both standard and low insertion force options with .025 inch (0.635 mm) square tails, facilitating self-nesting applications and ease of installation.
The product is rated for operation between -55°C and 125°C, making it suitable for diverse climatic and industrial conditions, including electronics manufacturing, testing, and automated assembly lines.
High density 46-contact configuration for compact PCB designs. Gold-plated bronze contacts for reliable signal transmission. Liquid Crystal Polymer housing ensuring longevity and thermal stability. Compatible with standard solder termination workflows.
Low insertion force contact options reduce wear during repeated connections. Wide operating temperature for harsh environments. Standard 2.54 mm pitch supports industry standard PCB layouts. Through-hole mounting type enables secure mechanical fixing.
Ideal for industrial, laboratory, and commercial electronic applications requiring quality connectors. Explore EnvMart’s extensive catalog for a wide range of industrial electronic connectors and accessories to support your precise assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous current rating for this socket is 6.3 A.
The voltage rating for the SSQ-123-03-G-D is 655 V.
The contact pitch for this model is 2.54 mm.
This socket is designed for through-hole mounting.
The contacts are made from bronze and are gold plated for enhanced conductivity and corrosion resistance.
The operational temperature range for the SSQ-123-03-G-D is from -55°C to 125°C.
This model features 46 female contacts arranged in two rows.
The housing material is Liquid Crystal Polymer, which provides durability and stability.
The contact system features standard and low insertion force contacts with .025 inch (0.635 mm) square tails for self-nesting applications.
The SSQ-123-03-G-D uses solder termination.
This socket has a straight orientation.
The country of origin for this product is India.
