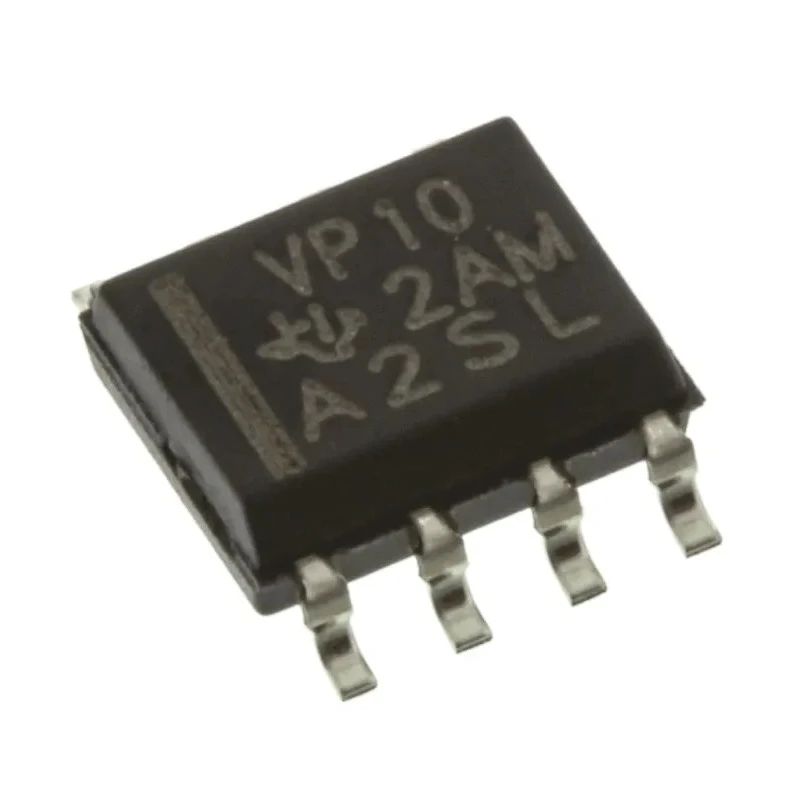

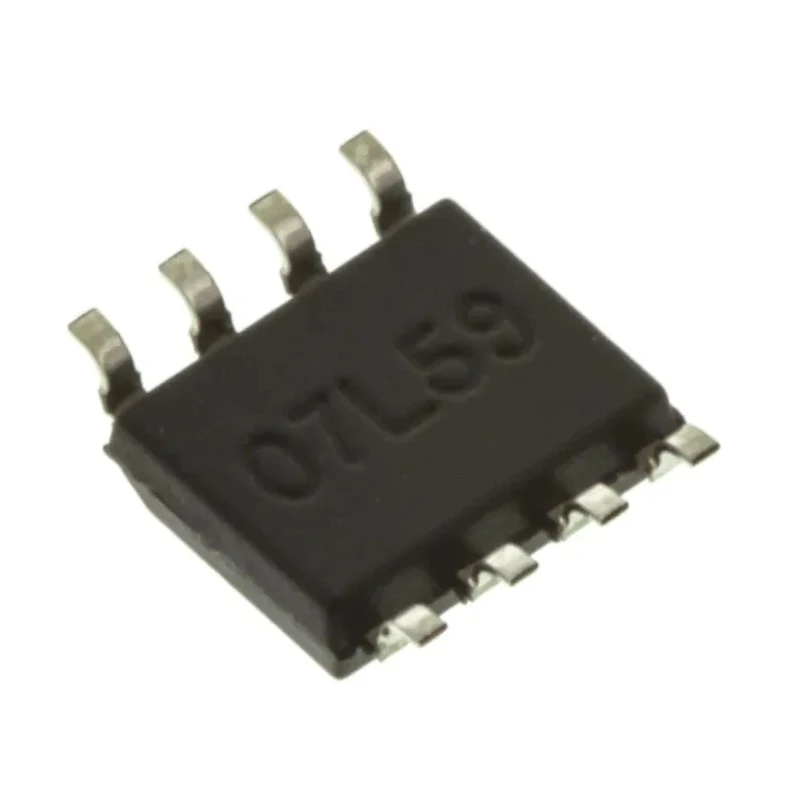

Texas Instruments Line Transceiver 1 Channel Differential Non-Inverting Surface Mount SOIC 8-Pin SN65HVD10D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD10D |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD10 |
| Input Type | Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN65 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 15.5mA |
| Maximum Low Level Output Current | 60mA |
| Texas Instruments SN65HVD10D, Line Transceiver, EIA/TIA-485-A/ ISO-8482 | 1993/ RS-485, 3.3 V, 8-Pin SOICBrand: Texas Instruments |
Key Features
- Operates with a minimum supply voltage of 4.5V and maximum of 5.5V.
- Differential input and output for noise immunity in communication systems.
- Surface mount device suitable for compact PCB integration.
- Maximum propagation delay time of 300ns ensures high-speed data communication.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Supplies a maximum low level output current of 60mA and high level of -60mA.
- Compact dimensions measuring 5mm length, 3.98mm width, and 1.75mm height.
- Supply current of 15.5mA allowing efficient power consumption.
Product Description
Texas Instruments SN65HVD10D is a high-speed line transceiver designed for robust differential data communication in RS-485 environments. Operating from 4.5V to 5.5V supply voltage, this device supports a single channel with differential non-inverting logic for noise-resistant and reliable signal transmission.
The SN65HVD10D is housed in a compact 8-pin SOIC surface mount package with dimensions of 5mm length, 3.98mm width, and 1.75mm height, making it suitable for dense PCB layouts in communication interface circuits. It delivers a supply current of 15.5mA and allows up to 60mA low level output current, supporting efficient and fast line driving capabilities with a maximum propagation delay of 300 nanoseconds.
Engineered to withstand industrial temperature extremes from -40°C up to 125°C, this transceiver ensures stability and performance in demanding environments. It complies with established RS-485 standards including EIA/TIA-485-A and ISO-8482:1993, ideal for industrial, telecommunications, and embedded system applications requiring differential signaling and noise immunity.
The transceiver’s differential input and output configuration deliver improved signal integrity, enabling reliable communication over long cable runs and in electrically noisy environments. This makes it suitable for industrial control systems, data acquisition networks, and instrumentation interfacing.
Operates on 4.5V to 5.5V supply voltage for consistent performance. Single channel differential, non-inverting line transceiver. Compact 8-pin SOIC surface mount package for easy integration. Maximum propagation delay of 300ns supports high data rates.
Designed for RS-485 / EIA/TIA-485-A standard communication interfaces. Wide temperature range operation from -40°C to 125°C ensures reliability in harsh environments. Low supply current of 15.5mA for power-efficient applications.
Maximum output currents ±60mA enable robust line driving.
This Texas Instruments line transceiver, model SN65HVD10D, is ideal for use in industrial automation, communication infrastructure, embedded controllers, and other electronic systems requiring dependable differential signaling. Integrating this device enhances signal quality and system resilience across a variety of technical applications.
Explore our range of semiconductor products and interface ICs at EnvMart for advanced industrial and electronics instrumentation solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 4.5V and a maximum of 5.5V.
The maximum propagation delay time is 300 nanoseconds, which supports high-speed data communication.
It measures 5mm in length, 3.98mm in width, and 1.75mm in height, making it suitable for compact PCB integration.
The SN65HVD10D operates within a wide temperature range from -40°C to 125°C, suitable for industrial environments.
It features a differential output type, which enhances noise immunity in communication systems.
The supply current for this model is 15.5mA, allowing for efficient power consumption.
It allows a maximum low level output current of 60mA.
This line transceiver supports a single channel with differential non-inverting logic.
It complies with RS-485 standards, including EIA/TIA-485-A and ISO-8482:1993.
The input type is differential, which contributes to its noise-resistant capabilities.
It is housed in an 8-pin SOIC surface mount package, facilitating easy integration into compact designs.
It is ideal for industrial automation, telecommunications, and embedded systems requiring robust differential signaling.
