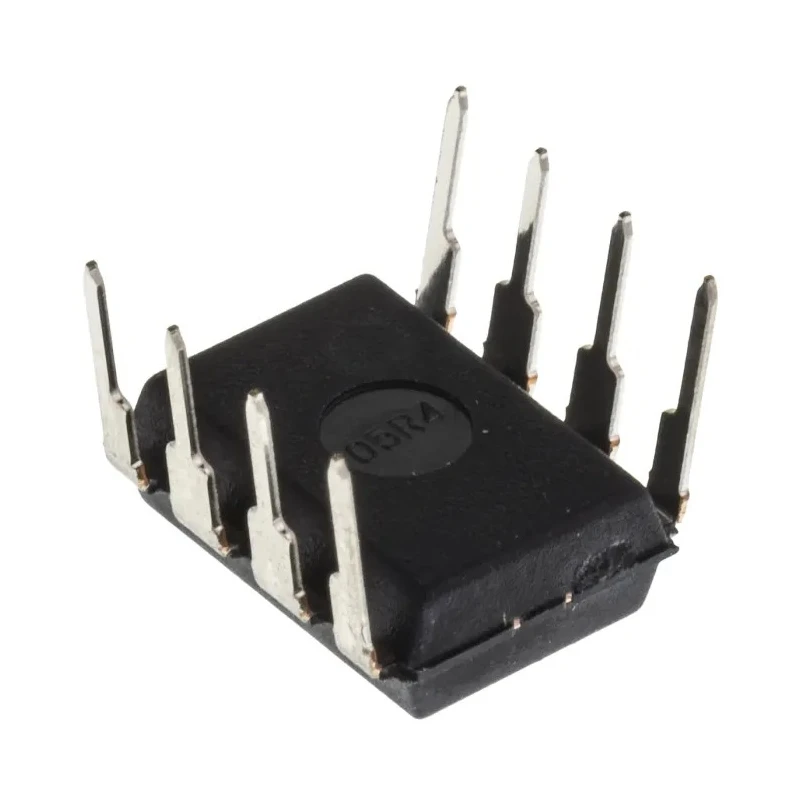

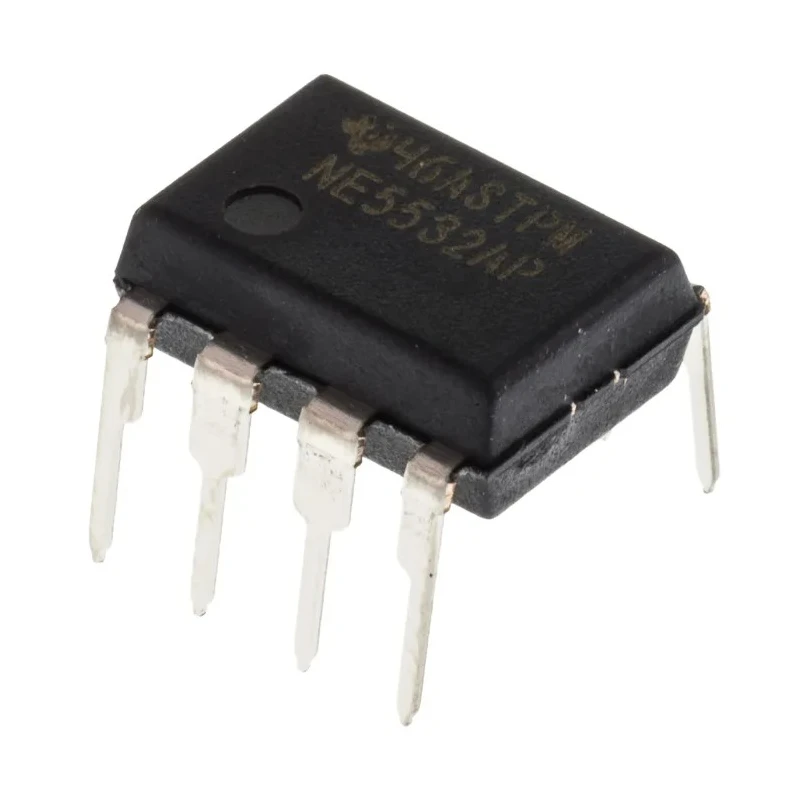

Texas Instruments Operational Amplifier 10 MHz 8-Pin 22V PDIP NE5532AP
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | NE5532AP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | NE55 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1000 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 9V/μs |
| Input Offset Current | 200 nA |
| Single audio op-amp,NE5532AN 16mA DIP8Brand | NXP |
Key Features
- Dual channel operational amplifier with low noise performance.
- Operates from a minimum supply voltage of -22V to a maximum of 22V.
- Gain bandwidth product of 10 MHz suitable for audio and signal applications.
- Input offset voltage of 5 mV and input bias current of 1000 nA.
- Slew rate of 9 V/μs supports fast transient response.
- Operating temperature range from 0°C to 70°C.
- Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height.
- Through-hole mount type in PDIP package ensures easy PCB assembly.
Product Description
Texas Instruments NE5532AP is a precision dual operational amplifier designed for audio and general-purpose applications. It offers a 10 MHz gain bandwidth product, making it suitable for circuits requiring low noise and high gain. Packaged in an 8-pin Plastic Dual In-line Package (PDIP), this device supports a dual supply voltage range from -22V to 22V, ensuring flexibility across various power systems.
Designed for through-hole PCB mounting, the NE5532AP provides low input offset voltage of 5 mV and an input bias current of 1000 nA, contributing to high-fidelity signal amplification with minimal distortion. The slew rate of 9 V/μs enables rapid response to input signal changes, making it ideal for audio amplifiers, active filters, and signal conditioning circuits.
The operational amplifier maintains stable performance across a temperature range of 0°C to 70°C. Its compact physical dimensions (9.81 mm length, 6.35 mm width, and 4.57 mm height) allow integration in space-constrained designs. The device is part of the NE55 series from Texas Instruments and is manufactured in Mexico, meeting quality standards suited for industrial and consumer electronic applications.
Dual channel low-noise operational amplifier. Wide ±22V supply voltage operation. 10 MHz gain bandwidth for audio and general use. Low input offset voltage and bias current for precise amplification. Fast slew rate ensures quick output response.
Through-hole PDIP package for robust mounting. Operates within 0°C to 70°C temperature range. Compact size enables versatility in circuit layouts.
This Texas Instruments NE5532AP operational amplifier is well-suited for use in electronics manufacturing, audio equipment, instrumentation, and signal processing systems. For engineers seeking a reliable audio op-amp solution, the NE5532AP delivers both performance and ease of integration.
Browse a wide selection of Operational Amplifiers and semiconductor components at EnvMart for your next project or industrial application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NE5532AP has a gain bandwidth product of 10 MHz, making it suitable for audio and general-purpose applications.
This model operates with a supply voltage ranging from -22V to 22V, providing flexibility for various power systems.
The dimensions of this operational amplifier are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input offset voltage for the NE5532AP is 5 mV, which contributes to its low noise performance.
The slew rate of this operational amplifier is 9 V/μs, enabling a fast response to input signal changes.
The input bias current for this model is 1000 nA, which aids in achieving precise amplification.
This operational amplifier operates within a temperature range of 0°C to 70°C.
The NE5532AP is designed for through-hole mounting, which facilitates easy PCB assembly.
This operational amplifier features two channels, allowing for dual channel applications.
The NE5532AP is packaged in an 8-pin Plastic Dual In-line Package (PDIP).
The NE5532AP is manufactured in Mexico, adhering to quality standards suitable for industrial and consumer applications.
This operational amplifier is part of the NE55 series from Texas Instruments.
