Sefram DAS60 Data Acquisition System 6-Channel USB Ethernet 1 Msps 14 Bit DAS60

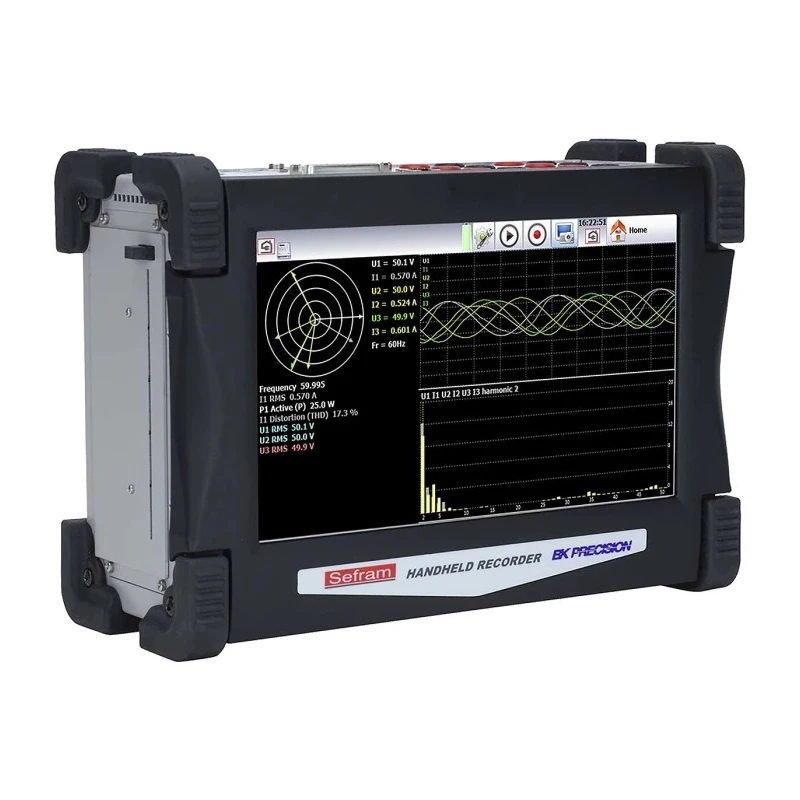

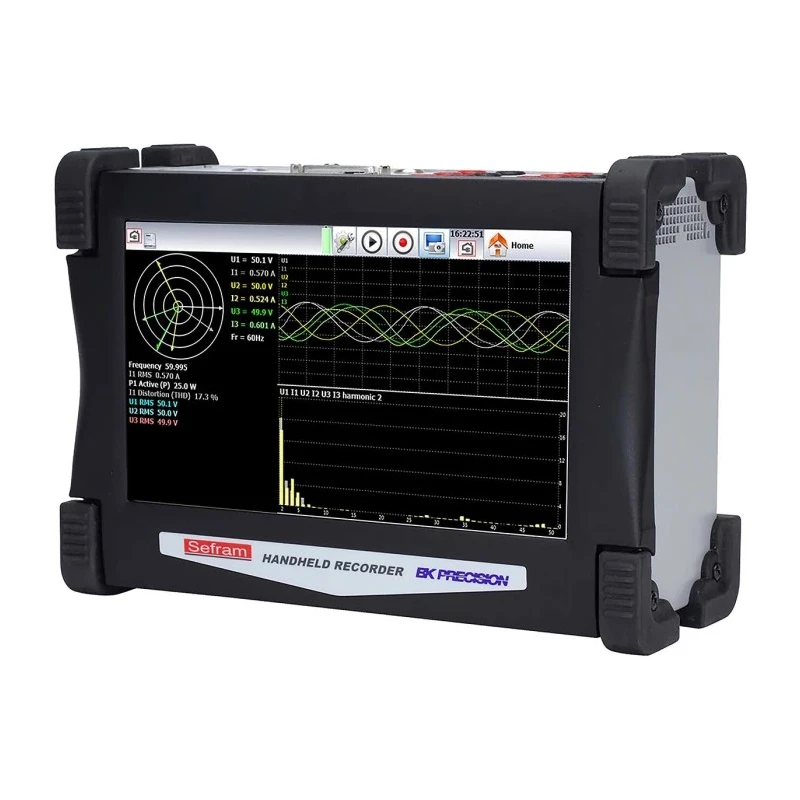

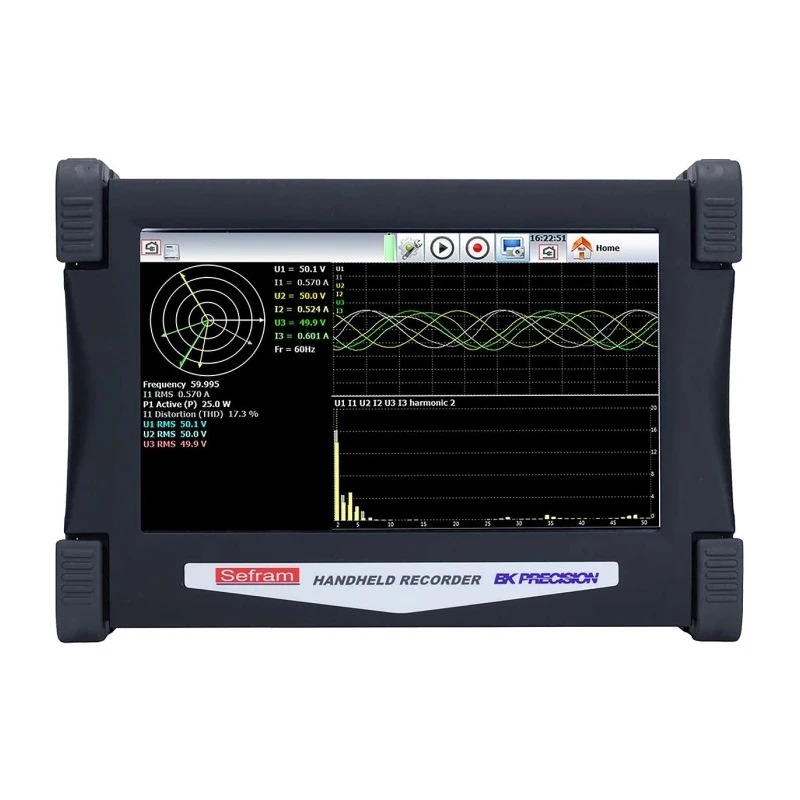

Sefram DAS60 Data Acquisition System 6-Channel DAS60 is a new generation standalone, portable, and battery-operated instrument designed for high-speed recording and detailed data acquisition with a sampling rate of 1 Msps and 14-bit resolution.

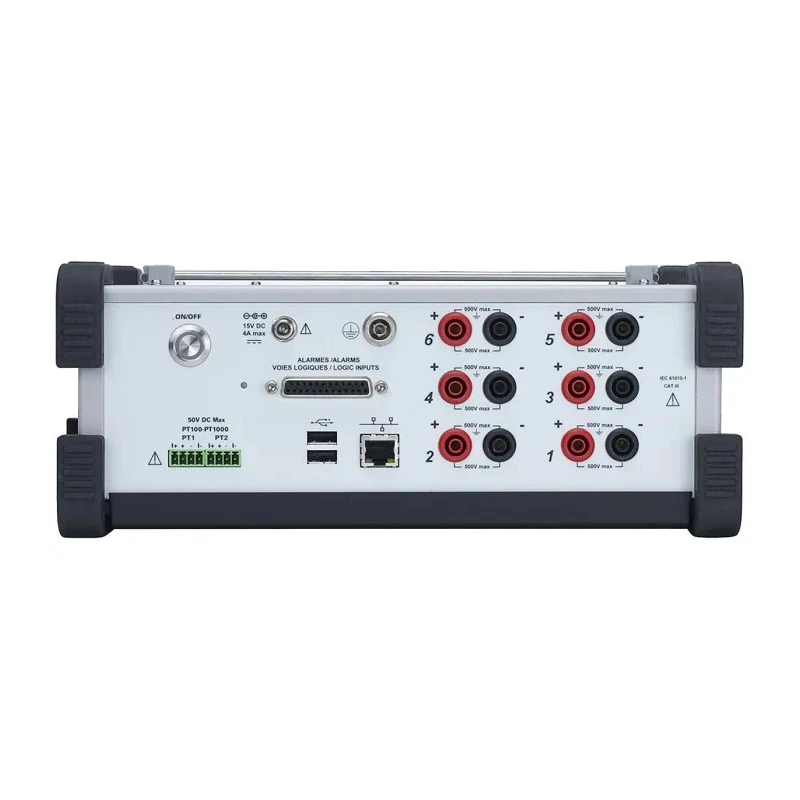

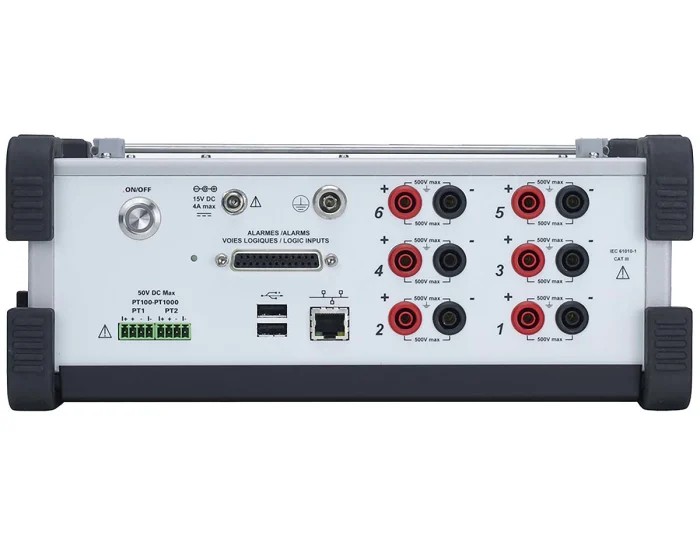

This device offers 6 isolated analogue input channels, 16 logical inputs, and 2 dedicated Pt100/Pt1000 temperature sensor channels, making it versatile for various measurement applications including voltage, frequency, current, temperature, and power analysis.

Connectivity options include USB and Ethernet interfaces facilitating seamless data transfer and remote monitoring capabilities. The lithium-ion battery provides a long autonomy of approximately 9.5 hours, supported by a substantial 64 GB internal memory for storing large volumes of data on site without interruption.

The DAS60 excels in power analysis, allowing measurement and recording of parameters on single-phase and three-phase networks up to 400 Hz frequency. Additional features include inrush current measurement and PWM measurement functionalities, enhancing its suitability for electrical and industrial diagnostics.

Constructed with durable materials, the instrument measures 295 mm in length, 210 mm in width, and 105 mm in height, weighing 2.5 kg, ensuring portability without compromising robustness. It operates within a temperature range of 0°C to 40°C, suitable for a variety of industrial environments.

Included accessories are a main adaptor (100/240V), manual on CD-ROM, rugged carrying case, red and black cables, alligator clips, and quick banana plugs, providing a complete ready-to-use solution.

Equipped with 6 isolated analogue channels for versatile measurements. Supports USB and Ethernet connectivity for flexible data transfer. Battery operated with lithium-ion battery providing up to 9.5 hours of operation. Onboard memory of 64 GB allows extensive data storage capacity.

Capable of recording power analysis parameters on single and three-phase networks up to 400 Hz. Includes thermocouple and Pt100/Pt1000 temperature sensors inputs. Robust design with dimensions 295 x 210 x 105 mm and weight of 2.5 kg.

Ideal for R&D, diagnostic, maintenance, and industrial test & measurement applications.

This Sefram DAS60 Data Acquisition System is well-suited for industrial, laboratory, electrical power analysis, and HVAC testing applications. Explore more high-quality measuring instruments and test & measurement solutions in our dedicated data acquisition category on EnvMart.
