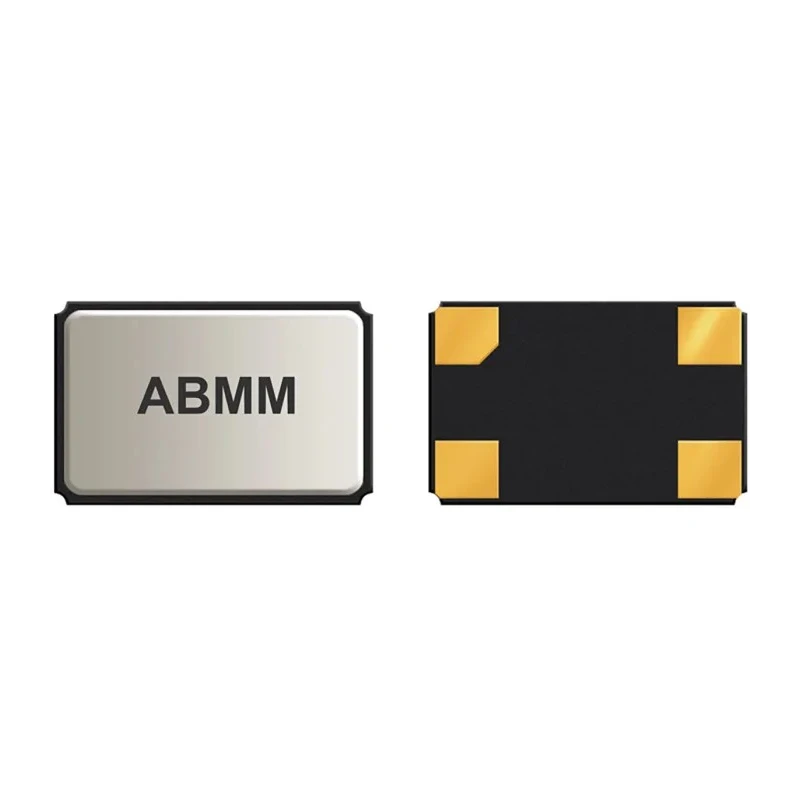

Abracon 6 MHz Crystal Unit Surface Mount 4-Pin ±20 ppm Frequency Tolerance ABMM-6.000MHZ-B2-T

The Abracon ABMM-6.000MHZ-B2-T is a 6 MHz Crystal Unit designed for high-precision electronic circuits requiring stable frequency output. This surface mount component features 4 pins and provides a frequency tolerance of ±20 ppm, making it ideal for microprocessors, communication devices, computers, modems, and test equipment.

Its compact package measures 7.2 mm in length, 5.2 mm in width, and a low height of 1.3 mm, fitting effectively on densely populated PCBs. The crystal operates reliably within a temperature range of -20°C to 70°C, with a frequency stability of ±50 ppm to ensure signal integrity over varying environmental conditions.

This crystal unit offers a load capacitance of 18 pF and a maximum series resistance of 70 Ω, optimized for standard electronic designs requiring precise timing control. It is supplied in tape and reel packaging, suitable for automated SMT assembly lines.

The product complies with REACH and RoHS directives, ensuring environmentally friendly and safe use.

Typical applications include computers, modems, microprocessors, communication systems, and test equipment, where tight frequency tolerance and stability are critical for device performance.

Standard frequency of 6 MHz for precise oscillation. Surface mount 4-pin design for easy PCB integration. Compact and low-profile package dimensions allow space-saving layouts. Wide operating temperature range from -20°C to 70°C for versatile use.

Low series resistance enhances signal quality in circuits. Load capacitance of 18 pF ensures compatibility with various loads. RoHS and REACH compliant environmental standards. Tape and reel packaging supports high-volume manufacturing processes.

Manufactured under ABMM series by Abracon in China. For more products in Crystal Units and related components, explore the Electronics Components category at EnvMart.
