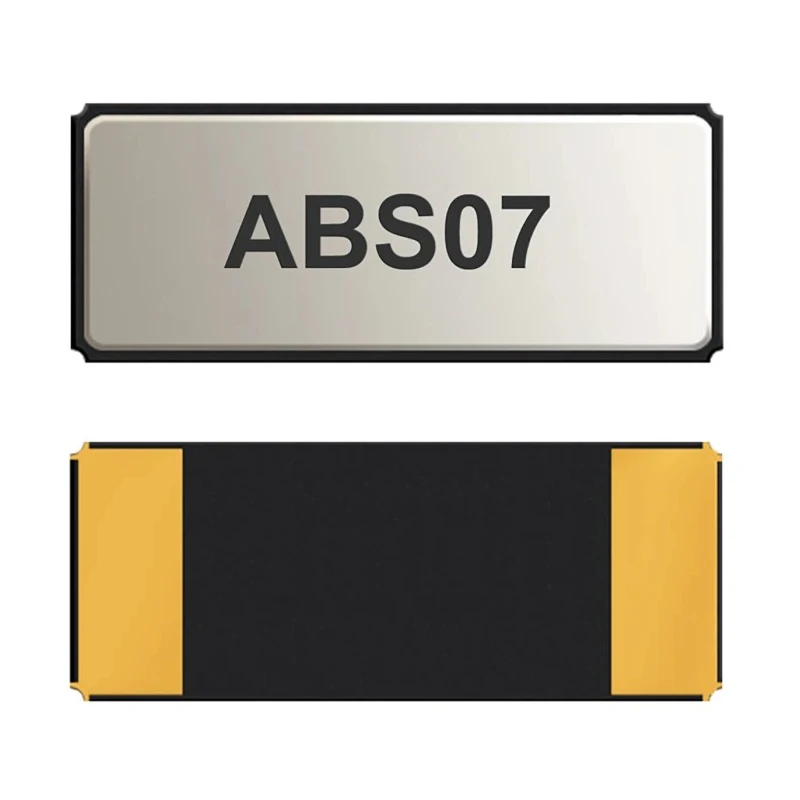

Abracon 32.768 kHz Crystal Unit Surface Mount 2-Pin 3.2mm x 1.5mm x 0.9mm ±20 ppm Frequency Tolerance ABS07-32.768KHZ-9-T
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 3.2mm |
| Model | ABS07-32.768KHZ-9-T |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | ABS07 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 9pF |
| Series Resistance | 70kΩ |
Key Features
- Standard frequency is precisely 32.768 kHz for timing applications.
- Surface mount package type with 2 pins for secure PCB mounting.
- Compact size measuring 3.2 mm length, 1.5 mm width, and 0.9 mm height.
- Equipped with a load capacitance of 9 pF for optimal circuit matching.
- Operates reliably in temperature range from -40°C to 85°C.
- Series resistance of 70 kΩ for low power consumption.
- RoHS and REACH compliant meeting environmental standards.
- Manufactured in Singapore to high quality standards.
Product Description
Abracon ABS07-32.768KHZ-9-T Crystal Unit is designed for precise frequency control in a wide range of industrial and commercial applications. This surface mount crystal operates at a standard frequency of 32.768 kHz, making it ideal for timing and oscillator circuits in electronic devices.
The crystal features a tightly controlled frequency tolerance of ±20 ppm, ensuring accurate and stable signal generation. Its compact dimensions of 3.2 mm length, 1.5 mm width, and 0.9 mm height allow easy integration into space-constrained PCB layouts.
Constructed with a plastic package containing an embedded heat resistant crystal housed in a cylindrical structure, the unit supports industrial temperature ranges from -40°C to 85°C, suitable for harsh environments. The load capacitance of 9 pF and series resistance of 70 kΩ provide optimized electrical performance for reliable oscillation.
This crystal unit is surface mount packaged with 2 pins and supplied in tape and reel for automated assembly processes. It complies with RoHS and REACH environmental regulations, underlining its suitability for modern manufacturing standards.
Typical applications include low frequency timing for wireless communications, consumer electronics, PDAs, and industrial control systems. Choose Abracon for high quality crystalline frequency components made in Singapore, ensuring durability and precision.
Standard frequency is precisely 32.768 kHz for timing applications. Surface mount package type with 2 pins for secure PCB mounting. Compact size measuring 3.2 mm length, 1.5 mm width, and 0.9 mm height. Frequency tolerance is ±20 ppm ensuring stable operation.
Equipped with a load capacitance of 9 pF for optimal circuit matching. Operates reliably in temperature range from -40°C to 85°C. Series resistance of 70 kΩ for low power consumption. RoHS and REACH compliant meeting environmental standards.
Manufactured in Singapore to high quality standards. Explore a broad range of electronic components at EnvMart, including Crystal Units for precise frequency control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is precisely 32.768 kHz, making it suitable for timing applications.
This model measures 3.2 mm in length, 1.5 mm in width, and 0.9 mm in height, allowing for easy integration into compact PCB layouts.
The crystal unit is equipped with a load capacitance of 9 pF, which optimizes circuit matching for reliable performance.
The series resistance of this unit is 70 kΩ, contributing to low power consumption during operation.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This surface mount crystal unit features 2 pins for secure PCB mounting.
The crystal unit is supplied in tape and reel packaging, which is ideal for automated assembly processes.
Yes, it is RoHS and REACH compliant, meeting modern environmental standards for manufacturing.
This model belongs to the ABS07 series of crystal units, designed for precise frequency control.
Typical applications include low frequency timing for wireless communications, consumer electronics, PDAs, and industrial control systems.
This crystal unit is manufactured in Singapore, adhering to high quality standards.
The frequency tolerance of this model is ±20 ppm, ensuring accurate and stable signal generation.
