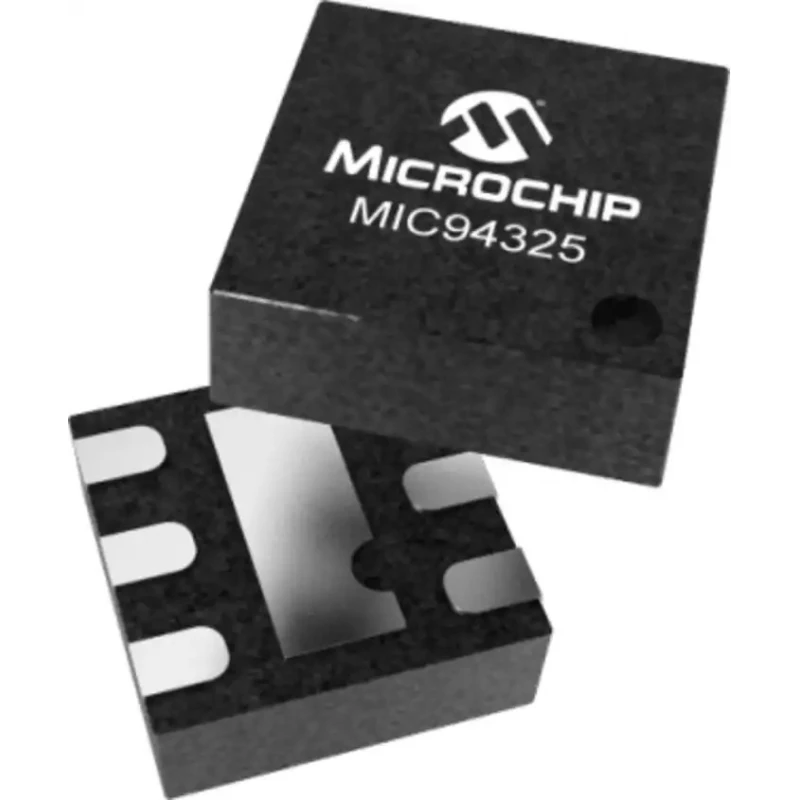

Microchip Voltage Regulator 3.6V DFN 6-Pin MIC94325YMT-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.5mm |
| Length | 1.6mm |
| Model | MIC94325YMT-TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | MIC94325 |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Polarity | Positive |
| Maximum Input Voltage | 3.6V |
| Minimum Input Voltage | 1.8V |
| Pin Count | 6 |
Key Features
- Operates with input voltages from 1.8V to 3.6V.
- Active noise rejection greater than 50dB from 10Hz to 5MHz at 500mA load.
- Supports a maximum output current of 500mA.
- Compact 1.6mm x 1.6mm Thin DFN 6-Pin surface mount package.
- Features a logic-controlled enable pin with optional output auto-discharge when disabled.
- Includes current limit and thermal limit protection for device safety.
- Junction temperature range from -40°C to +125°C for robust performance.
- Positive polarity design suited for regulated DC output requirements.
Product Description
Microchip MIC94325YMT-TR is a monolithic integrated voltage regulator designed to provide highly effective low-frequency ripple attenuation, essential for applications sensitive to switching noise such as RF circuits. The device is optimized to maintain high power supply ripple rejection (PSRR) even when input voltages closely match the output voltage, improving overall system efficiency.
This voltage regulator supports a wide input voltage range from 1.8V to 3.6V, making it versatile for battery-powered and DC/DC converter systems. It delivers a maximum output current of 500mA in a compact 1.6mm by 1.6mm Thin DFN 6-pin package for surface mounting, conserving PCB space.
The MIC94325YMT-TR features active noise rejection providing greater than 50dB attenuation from 10Hz to 5MHz at 500mA load. It includes a logic-controlled enable pin and an optional output auto-discharge function when disabled, helping to protect sensitive circuits.
Additional protections include current limit and thermal limit safeguards, ensuring device reliability under various operating conditions. The chip operates reliably across a junction temperature range of -40°C to +125°C.
This device is ideal for industrial, commercial, and laboratory applications requiring precise, low-noise voltage regulation, particularly where RF performance is critical or sensitive downstream circuitry must be protected from switching noise.
Operates with input voltages from 1.8V to 3.6V. Provides active noise rejection greater than 50dB from 10Hz to 5MHz. Maximum output current rating of 500mA. Compact and low-profile 1.6mm x 1.6mm DFN 6-pin surface mount package.
Logic-controlled enable pin and optional output auto-discharge feature. Includes current-limit and thermal-limit protections for safety. Wide junction temperature range from -40°C to +125°C for diverse environments. Positive polarity configuration suitable for regulated DC output requirements.
Explore more Microchip semiconductor products and Voltage Regulator ICs on EnvMart for your electronic system design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MIC94325YMT-TR operates with input voltages ranging from 1.8V to 3.6V.
It supports a maximum output current of 500mA.
The package dimensions are 1.6mm x 1.6mm with a height of 0.5mm.
It provides active noise rejection greater than 50dB from 10Hz to 5MHz at a 500mA load.
This model features a surface mount design.
It includes current limit and thermal limit protections for device safety.
The junction temperature range is from -40°C to +125°C.
Yes, it features a logic-controlled enable pin with an optional output auto-discharge when disabled.
It has a positive polarity design suitable for regulated DC output requirements.
This voltage regulator is ideal for industrial, commercial, and laboratory applications requiring low-noise voltage regulation, especially in RF-sensitive environments.
The PSRR is optimized to maintain high performance even when input voltages closely match the output voltage, enhancing overall system efficiency.
The country of origin for this voltage regulator is India.
