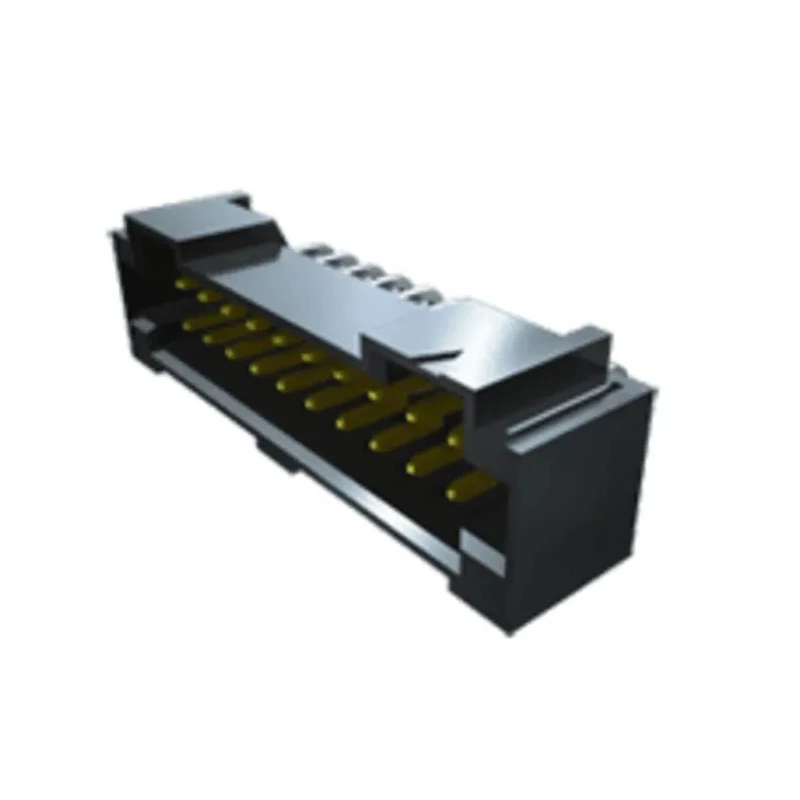

Samtec PCB Header T2M Series Right Angle Surface Mount 14 Contacts 2 mm Pitch Shrouded T2M-107-01-L-D-RA-WT

Name: Samtec PCB Header T2M Series Right Angle Surface Mount 14 Contacts 2 mm Pitch Shrouded T2M-107-01-L-D-RA-WT
Brand: Samtec
SKU: 95021
Price: 6.18 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	350V
Brand	Samtec
Orientation	Right Angle
Current	3.8A
Model	T2M-107-01-L-D-RA-WT
Mount Type	Surface
Special Features	Screw down and weld tab features available for the most rugged requirements
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	T2M
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Contact System	0.50 mm (.020") square post

Key Features

Manufactured with Liquid Crystal Polymer housing for durability.
Shrouded connector ensures secure mating and protection.
Rated for 3.8A current with gold-plated phosphor bronze contacts.
Supports operational temperature from -55°C to 125°C.
Suitable for board-to-board and wire-to-board connector systems.
Termination is solder type with through-hole and surface mount options.
Designed with 2 rows and right angle orientation for compact PCB layouts.
Contact system features 0.50 mm square posts for reliable connectivity.

Product Description

Samtec T2M-107-01-L-D-RA-WT is a high-quality PCB header from the T2M Series designed for electronic and electrical component assemblies. This right angle surface mount header offers 14 male contacts arranged in 2 rows with a precise 2.00 mm pitch, ensuring reliable board-to-board and wire-to-board connections.

The housing is made from durable Liquid Crystal Polymer, which provides excellent mechanical stability under a wide temperature range from -55°C to 125°C. The gold-plated phosphor bronze contacts enhance conductivity and corrosion resistance, supporting a steady current of up to 3.8 A and voltage rating of 350 V.

The shrouded design protects contacts and ensures secure mating, ideal for industrial, commercial, and laboratory electronics applications requiring rugged connectivity solutions. Termination is through-hole and surface mount solder type, making it versatile for various PCB assembly processes.

Special features include screw down and weld tab options for enhanced mechanical fixings, suitable for demanding environments. The 0.50 mm square post contact system guarantees precise connection and durability.

This PCB header is manufactured in the United States, adhering to high-quality standards, and fits into the Electronics & Electricals category targeting PCB headers in multiple industrial and electronic manufacturing sectors.

Manufactured with Liquid Crystal Polymer housing for durability. Shrouded connector ensures secure mating and protection. Rated for 3.8A current with gold-plated phosphor bronze contacts. Supports operational temperature from -55°C to 125°C.

Suitable for board-to-board and wire-to-board connector systems. Termination is solder type with through-hole and surface mount options. Designed with 2 rows and right angle orientation for compact PCB layouts. Voltage rating up to 350V for various electronics applications.

Contact system features 0.50 mm square posts for reliable connectivity. Includes screw down and weld tab features for rugged applications. Explore more PCB Headers and connectors designed for precision and reliability at EnvMart to meet your electronics manufacturing needs.
