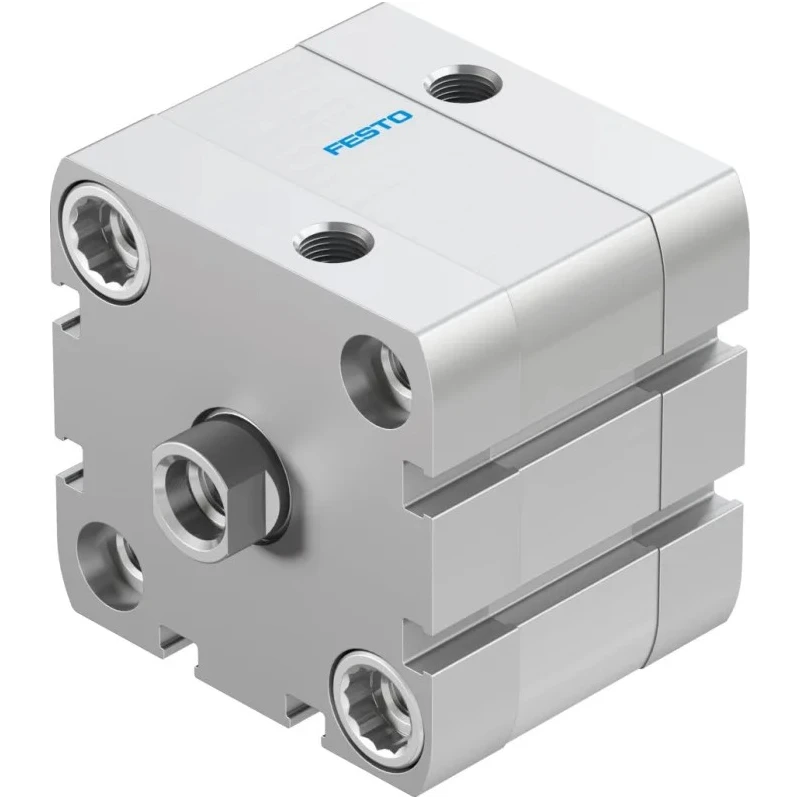

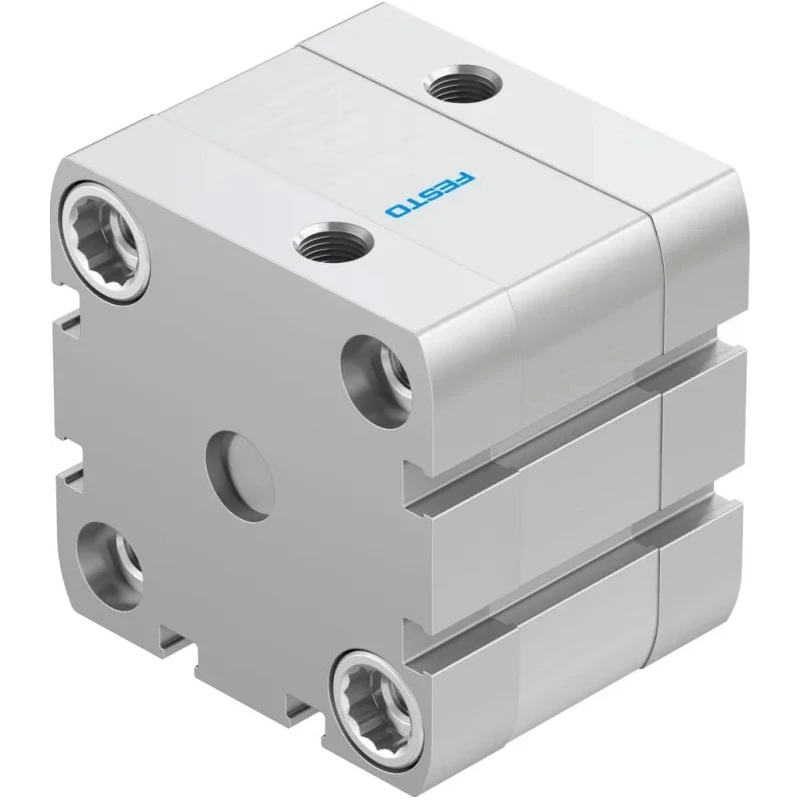

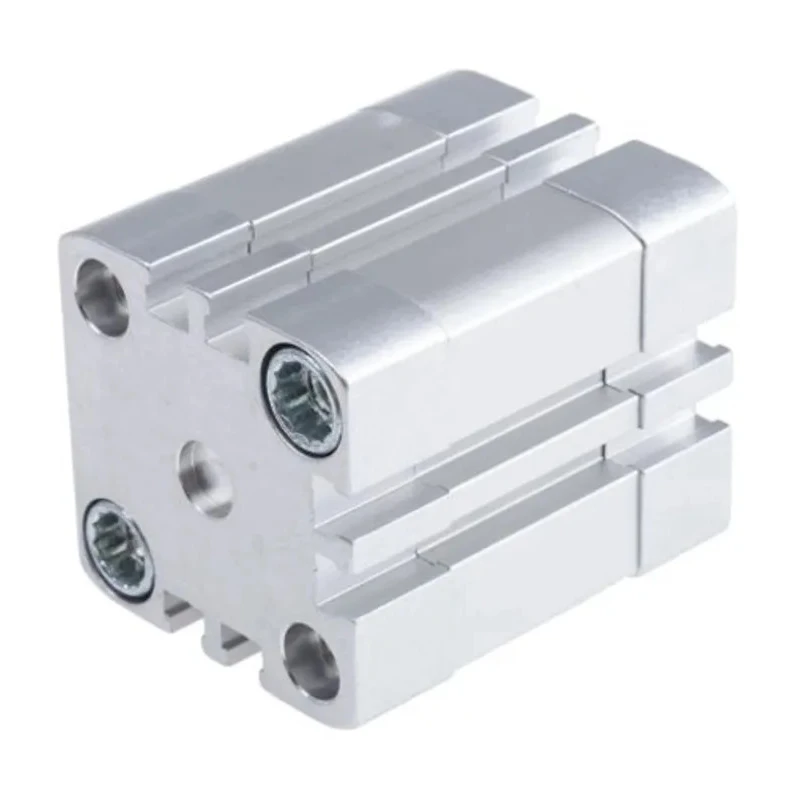

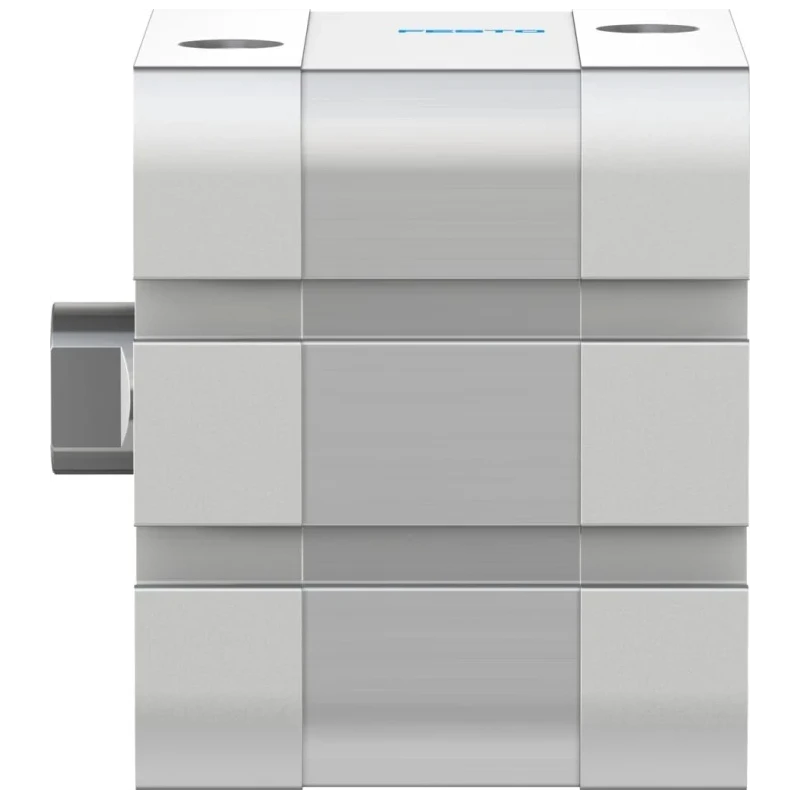

Festo Pneumatic Cylinder ADN Series 50 mm Bore, 10 mm Stroke, Double Acting Aluminium Body ADN-50-10-I-P-A

Festo ADN-50-10-I-P-A Pneumatic Cylinder is a high-quality double acting pneumatic actuator with a 50 mm bore diameter and 10 mm stroke length designed for industrial automation and fluid power applications. Featuring an aluminium body, it balances strength and reduced mass for easier mounting and faster machine response.

This pneumatic cylinder is designed for compact, repeatable short travel tasks with a maximum operating pressure of 10 bar, providing reliable thrust and load control. The elastic cushioning rings effectively reduce impact and noise at the end of the piston stroke, enhancing operational lifespan.

The piston rod is configured with a female M10 thread, allowing direct installation of rods, clevises, or custom fittings without additional adapters. The through-hole mount type ensures secure attachment to panels or brackets, making it ideal for installations with limited space or confined assemblies.

Operating over a wide temperature range from -20°C to 80°C, the cylinder is suitable for various industrial environments, including manufacturing lines, handling jigs, valve actuation, and machine tool change applications. Its compact dimensions (62.7 mm length, 65.5 mm height and width) make it well suited for integration into machine modules requiring precise short-stroke positioning.

This pneumatic cylinder is essential for fluid power automation systems requiring precise linear motion. Elastic cushioning rings provide smooth operation and reduce mechanical stress. Aluminium body ensures durable performance with lightweight design.

Female M10 piston rod thread facilitates versatile mounting options. Double acting design supports both forward and return strokes. Through-hole mounting offers secure and low-profile installation. Wide temperature range allows operation in diverse environments.

Maximum operating pressure of 10 bar delivers strong pneumatic force. Fits industrial automation, HVAC, manufacturing, and packaging applications. Explore further Pneumatic Cylinders and fluid power tools at EnvMart for high-quality industrial-grade automation components.
