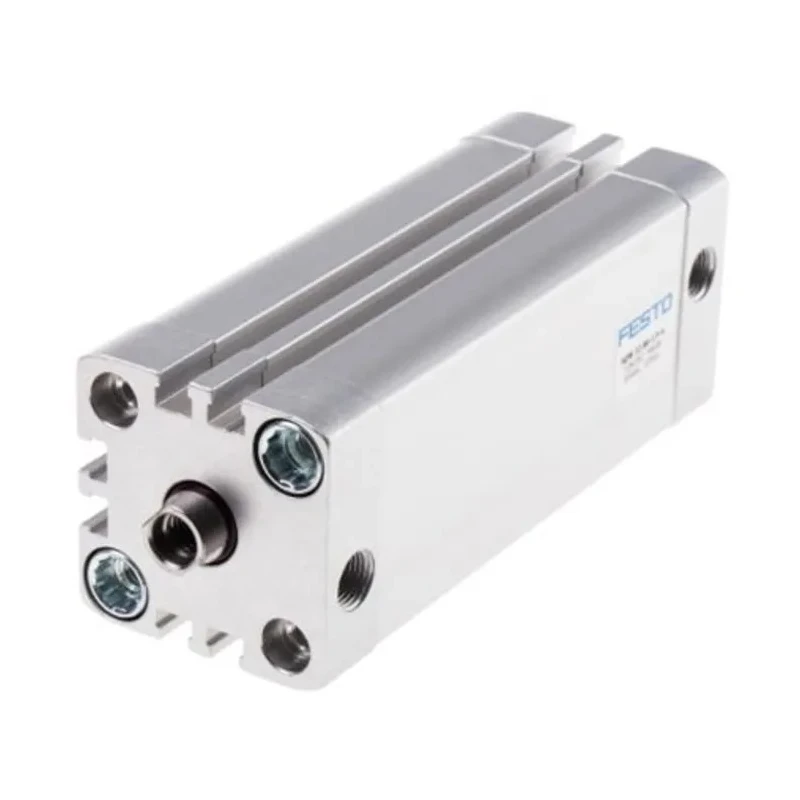

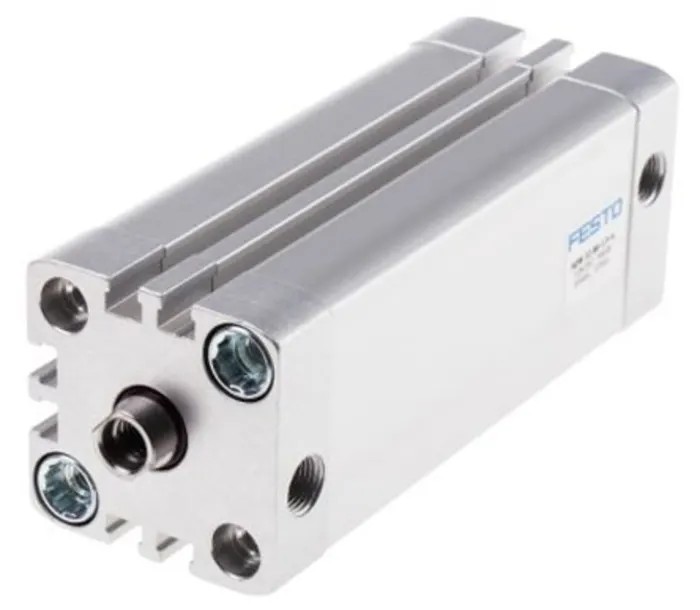

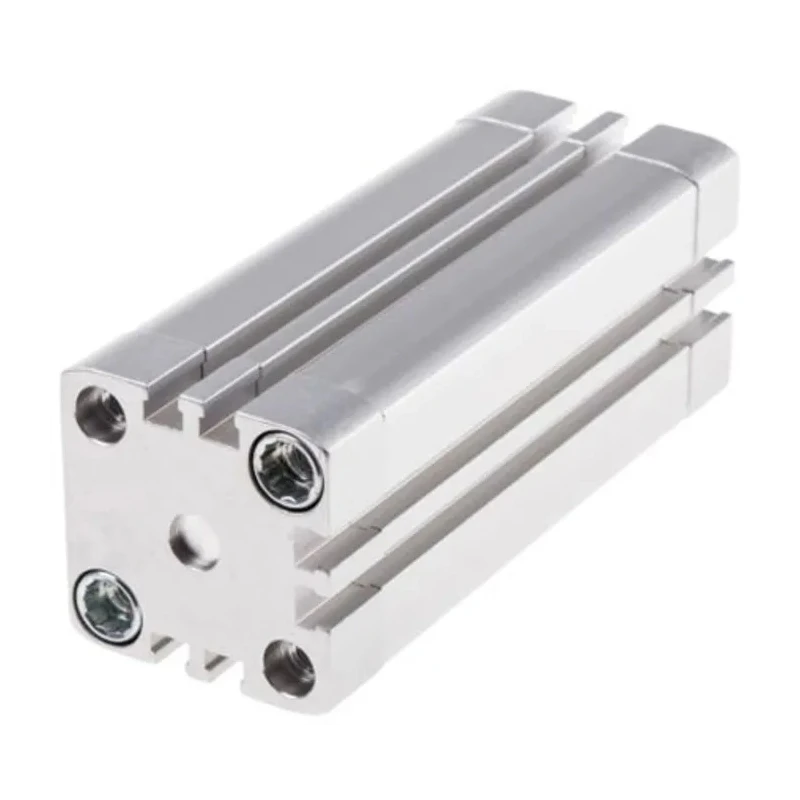

Festo Pneumatic Cylinder ADN Series Double Acting 50mm Bore 60mm Stroke 10 bar Maximum Operating Pressure ADN-50-60-I-P-A

Festo ADN-50-60-I-P-A Pneumatic Cylinder offers a compact, robust, and reliable double acting pneumatic actuator designed for industrial, manufacturing, automation, and HVAC applications. Featuring a 50mm bore and 60mm stroke, this actuator provides linear motion with efficient air cushioning to reduce operational noise and extend service life.

The ADN Series adheres to the ISO 21287 standard and includes flexible polymer cushioning rings, minimizing vibrations and maintenance requirements. Constructed from high-quality aluminium, the cylinder body offers durability and corrosion resistance in demanding environments.

This double acting actuator operates by applying compressed air alternately to extend and retract the piston rod, which is single and threaded with a female 1/8 in G connection for secure mounting. The cylinder can be installed horizontally or vertically using through-hole mounting, supported by the robust design to handle pressures up to 10 bar.

Magnetic piston rods allow for contactless position sensing via proximity sensors mounted in the cylinder slots, facilitating precise motion control. The operational temperature range extends from -20°C to 80°C, suitable for a wide variety of industrial settings.

Complies with ISO 21287 standard ensuring high-quality performance. Compact design up to 50% smaller than standard cylinders for space-saving installation. Double acting operation allows piston rod extension and retraction with compressed air.

Air cushioning with flexible polymer end cushions reduces noise and vibration. Constructed with lightweight aluminium body for durability and corrosion resistance. Dual connection ports for versatile installation in horizontal or vertical orientations.

Magnetic piston rod compatible with proximity sensors for contactless position detection. Suitable for operating pressures up to 10 bar and temperature range from -20°C to 80°C. Through hole mount type with a single female piston rod thread size of 1/8 in G.

This Festo pneumatic cylinder is ideal for applications in industrial automation, manufacturing machinery, fluid power systems, and pneumatic automation equipment. Browse more Pneumatic Cylinders on EnvMart for complementary pneumatic components and accessories.
