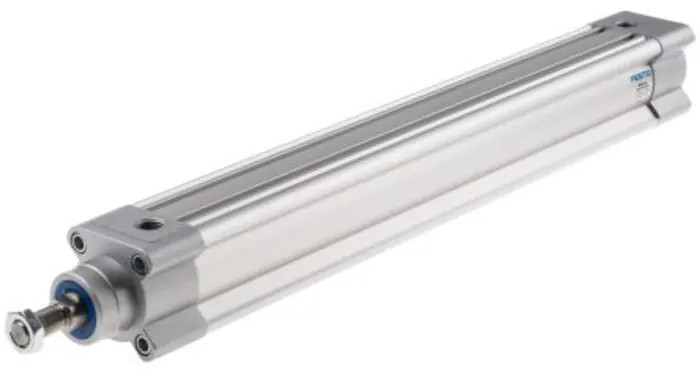

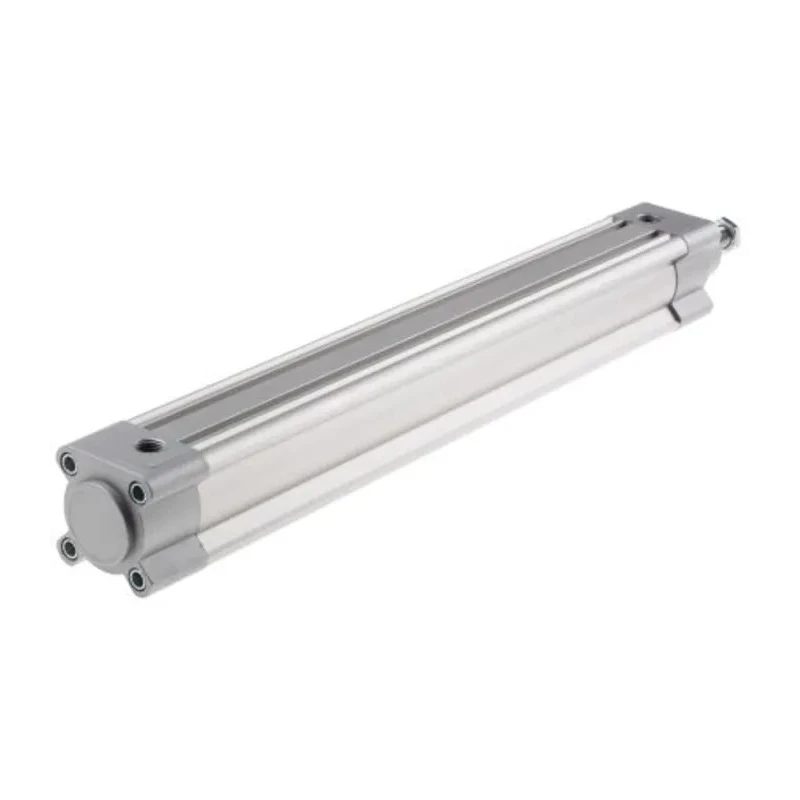

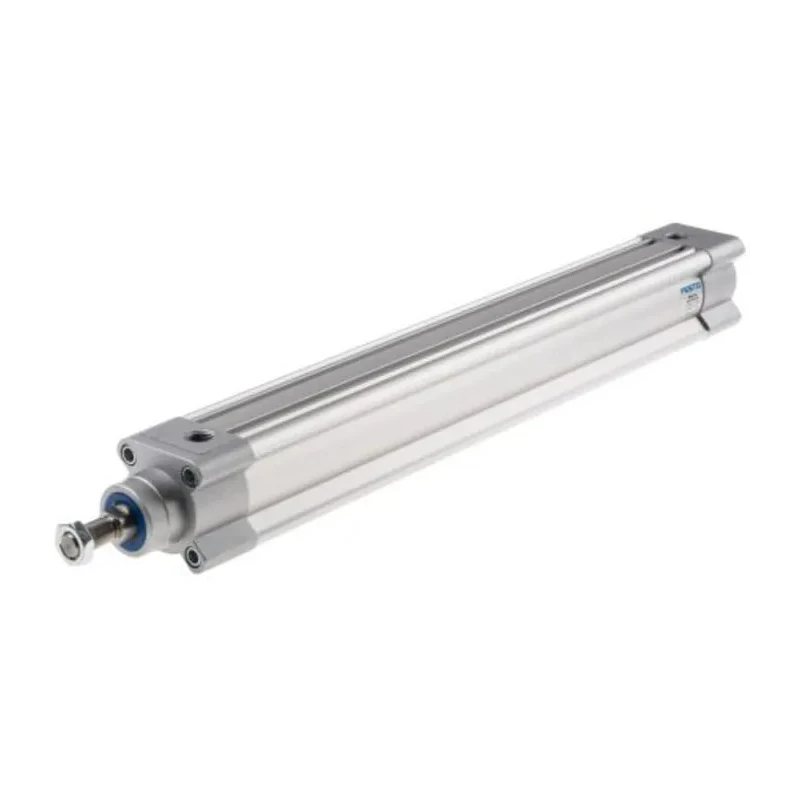

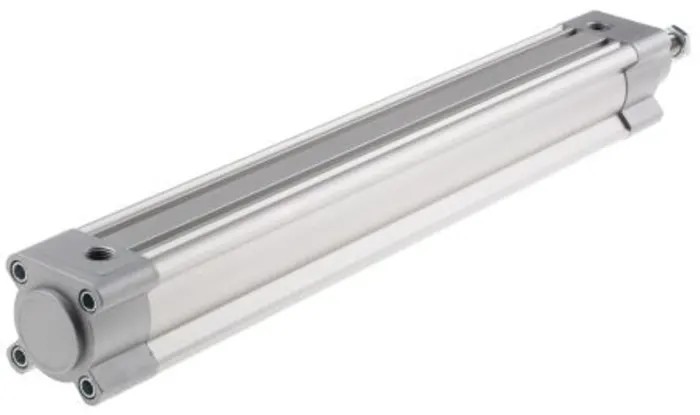

Festo Pneumatic Piston Rod Cylinder 40mm Bore, 320mm Stroke, Aluminium Body, Double Acting DSBC-40-320-PPVA-N3

Festo DSBC-40-320-PPVA-N3 Pneumatic Piston Rod Cylinder is a precision-engineered pneumatic actuator designed for industrial applications requiring reliable linear motion. Featuring a 40mm bore and 320mm stroke length, this double acting cylinder uses an aluminium body combined with a high-alloy steel piston rod for optimal strength-to-weight ratio and long-lasting performance.

The cylinder includes adjustable pneumatic cushioning at both ends, facilitating smooth operation while reducing noise and vibration during high speed or heavy load cycles. The design complies with ISO 15552 standards for piston rod cylinders, ensuring metric mounting dimensions for interchangeability with other components in pneumatic systems.

Thanks to the magnetic piston rod, contactless position detection via proximity sensors is supported, enhancing automation and control precision in manufacturing, packaging, and assembly line machinery. The unit operates effectively within a temperature range of -20°C to 80°C and withstands maximum pressure of 12 bars, making it suited for a variety of industrial environments.

The through hole mount type allows flexible mounting options to accommodate different orientation and installation needs in pneumatic setups. With compact overall dimensions of 161.9mm length, 54mm height, and width, this cylinder fits efficiently into constrained mechanical assemblies.

This product is manufactured in Germany and conforms to relevant industry standards including RoHS compliance. The lightweight 740g aluminium body supports ease of handling without compromising strength, suitable for medium to heavy-duty pneumatic actuation tasks in automation, fluid power systems, and machinery operations.

This pneumatic cylinder uses an aluminium body for lightweight durability. Adjustable end cushioning reduces operational noise and vibration. High-alloy steel piston rod provides excellent running performance. Magnetic piston rod supports contactless position sensing.

Complies with ISO 15552 for easy mounting and interchangeability. Wide operating temperature range from -20°C to 80°C. Maximum operating pressure rated at 12 bar. Through hole mount allows versatile installation options.

Compact and lightweight design with 740g weight. Ideal for use in industrial automation and manufacturing environments. Explore the EnvMart Pneumatic Cylinder category for other Festo models and related pneumatic actuators designed for precise industrial applications.
