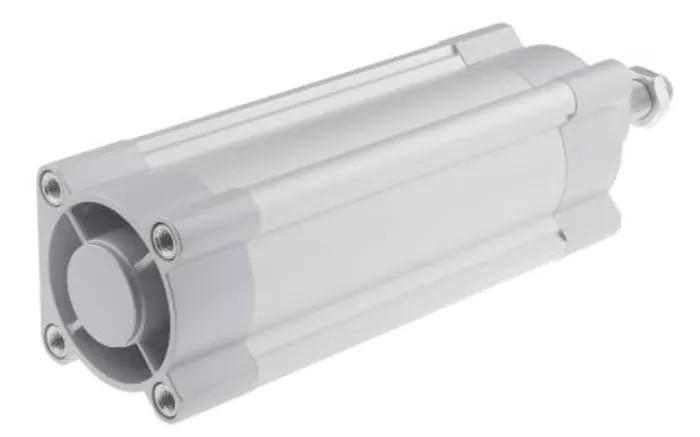

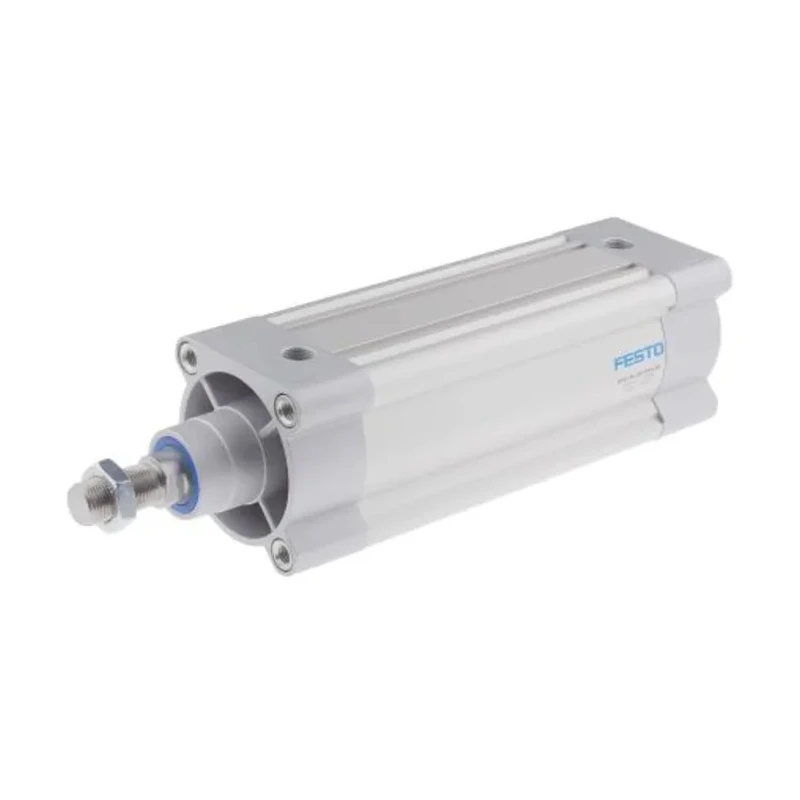

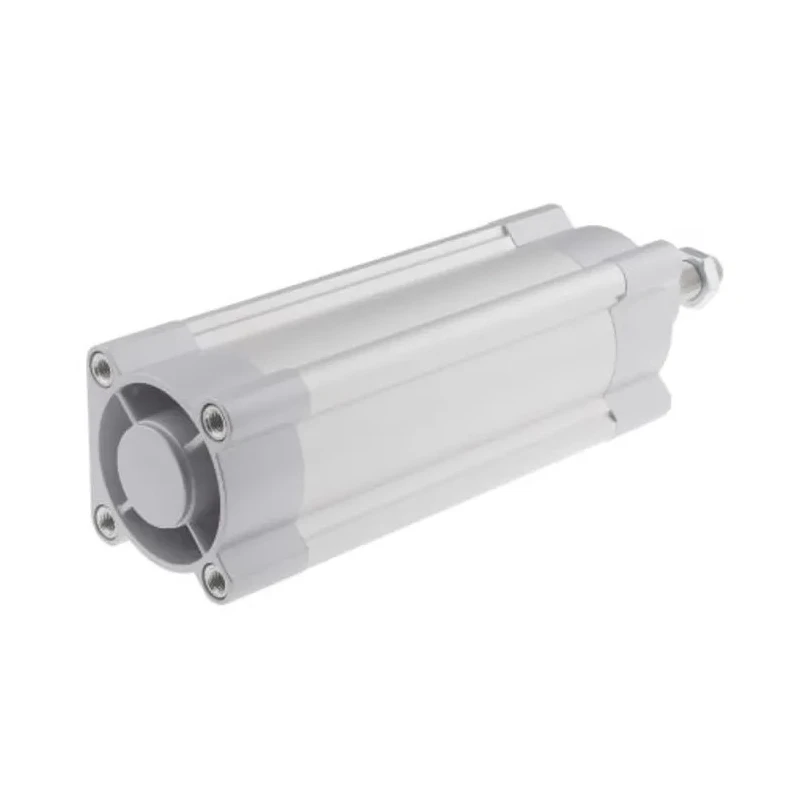

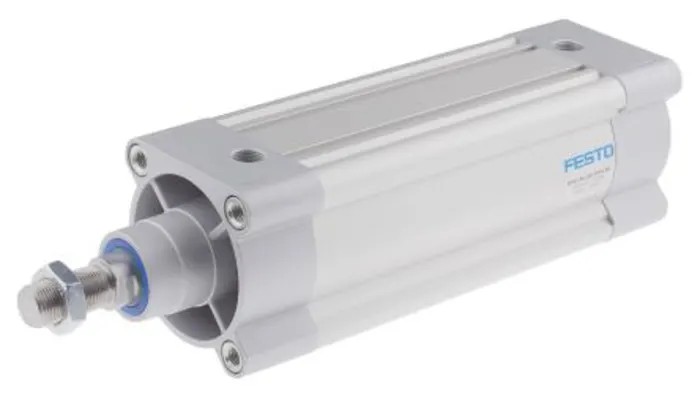

Festo Pneumatic Piston Rod Cylinder 80mm Bore, 320mm Stroke, Double Acting, Air Cushion, Aluminium Body DSBC-80-320-PPSA-N3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 12 bar |
| Height | 93mm |
| Length | 217.6mm |
| Model | DSBC-80-320-PPSA-N3 |
| Gross Weight | 2.7kg |
| Width | 93mm |
| Mount Type | Through Hole |
| Series | DSBC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 320mm |
| Bore Diameter | 80mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 3/8 in G |
Key Features
- Designed according to ISO 15552 standards for metric mounting dimensions.
- Features self-adjusting pneumatic cushioning for smooth end positions without manual adjustments.
- Constructed with a high-alloy steel piston rod ensuring long service life and low friction.
- Double acting operation allows linear motion with dual compressed air ports.
- Magnetic piston rod enables contactless position detection via proximity sensors.
- Suitable for industrial automation, manufacturing, and fluid power applications.
- Operating pressure up to 12 bar and temperature range from -20°C to 80°C.
- Body material is corrosion-resistant aluminium with a single male threaded piston rod.
Product Description
Festo DSBC-80-320-PPSA-N3 Pneumatic Piston Rod Cylinder is a high-performance double acting actuator designed for precise linear motion in industrial and automation applications. It features an 80mm bore diameter and a 320mm stroke length compliant with ISO 15552 standards, ensuring standardized mounting and interchangeability.
The cylinder employs self-adjusting pneumatic cushioning at both ends, allowing gentle travel into end positions without manual adjustments, resulting in reduced noise and vibration during operation. The air cushioning technology improves durability and reduces maintenance requirements.
Constructed from aluminium with a high-alloy steel piston rod, this cylinder offers excellent running performance combined with a lightweight design of 2.7kg. It operates efficiently up to a maximum pressure of 12 bar and accommodates temperatures ranging from -20°C to 80°C, making it suitable for diverse industrial environments.
The piston rod is male threaded with a 3/8 inch G thread size for easy integration into mechanical assemblies. The double acting operation utilizes dual ports, enabling precise control of forward and return strokes. Additionally, the magnetic piston rod supports non-contact position sensing via compatible proximity sensors mounted in available slots along the cylinder barrel.
With dimensions of 217.6mm length and a 93mm square cross-section (width and height), this compact and robust cylinder is ideal for pneumatic automation tasks in packaging, material handling, machine tooling, and fluid power systems.
ISO 15552 compliant DSBC series Pneumatic Cylinder. Self-adjusting pneumatic cushioning for smooth operation. High-alloy steel piston rod with corrosion-resistant aluminium body. Double acting with through-hole mounting design.
Magnetic piston suitable for proximity sensor integration. Operating pressure up to 12 bar with wide temperature tolerance. Compact dimensions with lightweight 2.7 kg body. Suitable for industrial, manufacturing, fluid power, and automation uses.
Discover more pneumatic components and actuator solutions in EnvMart’s extensive catalogue to enhance your automation and pneumatic system projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 12 bar.
This cylinder has a length of 217.6mm, a height of 93mm, and a width of 93mm.
The stroke length of this unit is 320mm.
The bore diameter of this pneumatic cylinder is 80mm.
It features self-adjusting pneumatic cushioning for smooth operation at both ends.
The body is constructed from corrosion-resistant aluminium.
It operates efficiently within a temperature range of -20°C to 80°C.
This model operates as a double acting cylinder, allowing for linear motion in both directions.
The piston rod has a male thread size of 3/8 inch G.
Yes, it is compliant with ISO 15552 standards and RoHS.
It is suitable for industrial automation, manufacturing, and fluid power applications.
The gross weight of this pneumatic cylinder is 2.7kg.
