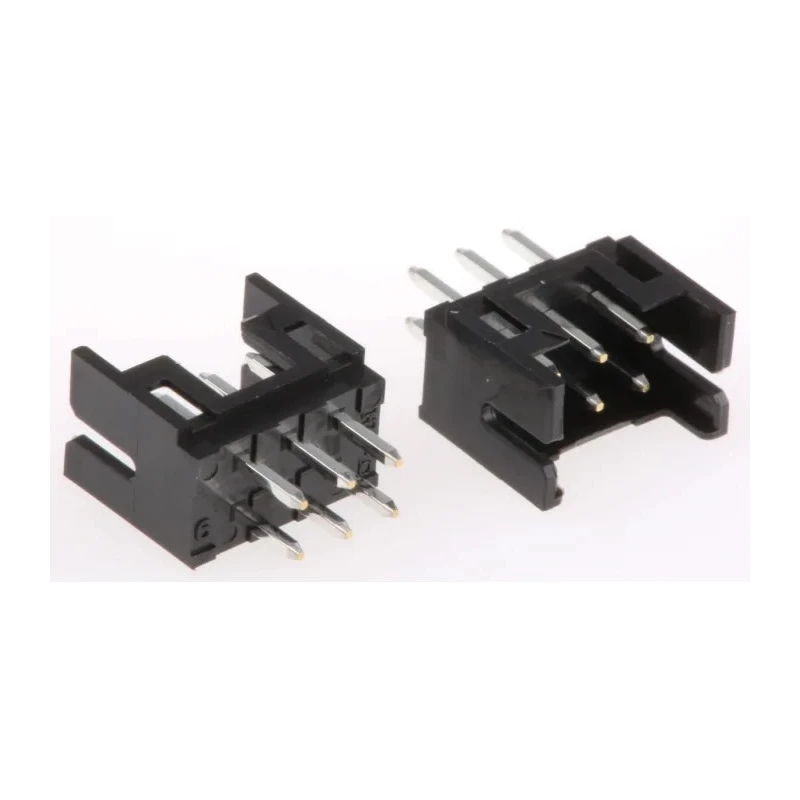

Hirose PCB Header 6 Contacts 2 mm Pitch 2 Row Shrouded Through Hole Connector DF11
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- The connector features a compact, space-saving design suitable for high-density PCB layouts.
- It integrates a robust four-wall shrouded design with guide ribs to prevent incorrect insertion.
- A secure locking mechanism ensures reliable mating and connection stability.
- Gold-plated brass contacts provide excellent conductivity and corrosion resistance.
- It supports up to 2 A current and 30 V operating voltage with a temperature range from -30°C to 85°C.
- The through hole mount provides strong mechanical retention on PCB assemblies.
- Applications include board-to-board and wire-to-board connections in precision electronic devices.
- Ideal for portable devices, digital cameras, LCD displays, and automotive electronics.
Product Description
Hirose DF11 PCB Header, model DF11, is a high-quality 6-contact, 2 mm pitch, 2 row, shrouded through hole connector designed for compact and reliable PCB connections. This connector features a depth of less than 5 mm, enabling a double row of contacts within the space typically occupied by single row connectors, making it ideal for space-constrained electronic designs.
The sturdy four-wall shrouded housing and guide ribs prevent incorrect mating and twisting, while the locking mechanism secures the mating connection with high retention force. Gold-plated brass contacts ensure excellent electrical conductivity and resistance to corrosion, with a current rating of 2 A and voltage up to 30 V. The connector operates reliably between -30°C and 85°C, accommodating a wide range of environmental conditions.
Mounting is through hole, which enhances mechanical stability on printed circuit boards. These connectors support both board-to-board and wire-to-board applications, making them versatile for various electronic product assemblies. They are particularly suited for use in portable electronics, digital cameras, LCD displays, car navigation systems, access control units, and measurement devices.
The compact, space-saving design is ideal for reducing PCB footprint. Robust housing and guide ribs prevent mismating and improve durability. Locking mechanism ensures secure mating connections under vibration or movement.
Gold-plated brass contacts offer superior conductivity and corrosion resistance. Operates within a broad temperature range from -30°C to 85°C. Supports current rating of 2 A and voltage of 30 V. Suitable for board-to-board and wire-to-board connector systems.
Through hole mounting enhances mechanical retention on PCB.
This Hirose DF11 series connector is a critical component for electronics manufacturers seeking reliable, high-density PCB Header solutions. Browse the Electronics Components category at EnvMart for additional connectors and related parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2 A and an operating voltage of 30 V.
It features a 2 mm pitch and has 6 contacts arranged in 2 rows.
The contacts are made of brass and are gold-plated, while the housing material is polyamide.
It operates reliably within a temperature range of -30°C to 85°C.
This model utilizes a through hole mount, which enhances mechanical retention on printed circuit boards.
It supports both board-to-board and wire-to-board connections.
Yes, it features a secure locking mechanism that ensures reliable mating and connection stability.
The connector integrates a robust four-wall shrouded design with guide ribs to prevent incorrect insertion.
The orientation of this connector is straight.
The termination type for this model is solder.
The country of origin for this connector is India.
It is suitable for applications in portable devices, digital cameras, LCD displays, and automotive electronics.
