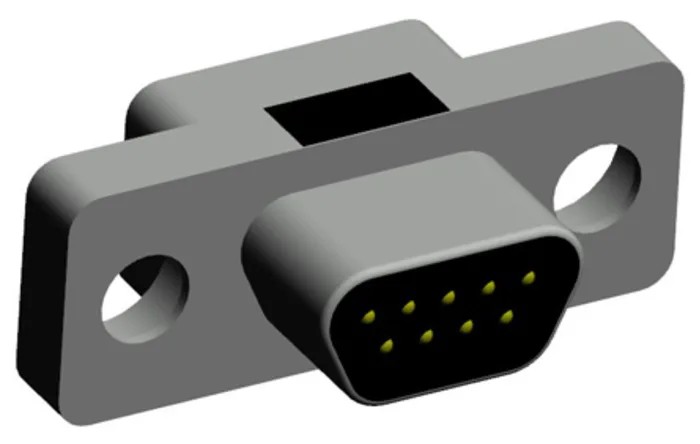

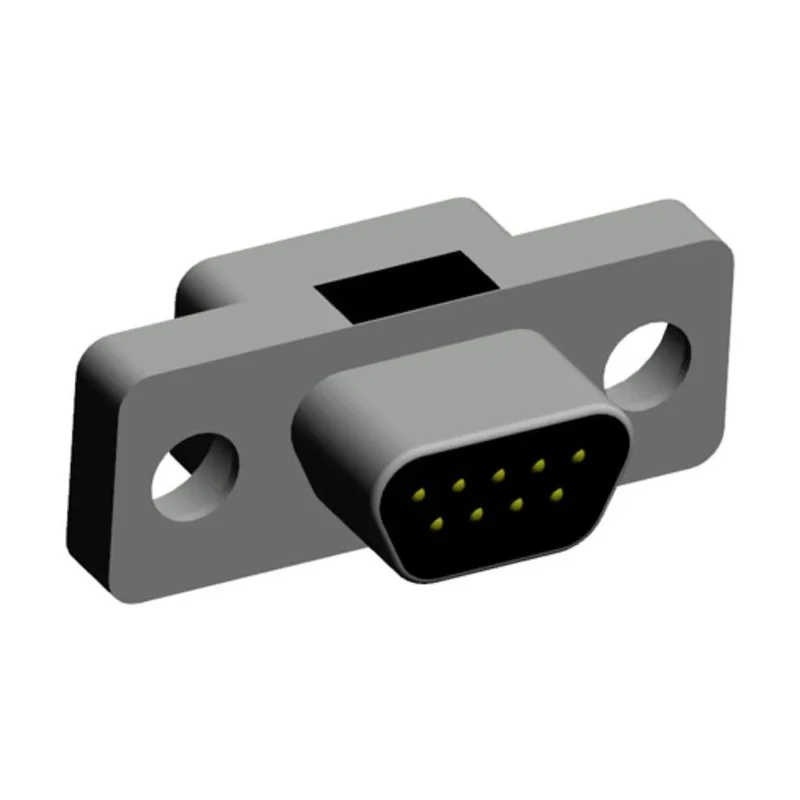

Norcomp MICRO-D 380 Series 9 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector Male 380-009-113L001
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500.0V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 1A |
| Model | 380-009-113L001 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Series | 380 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Micro-D |
| Molex 83611 9 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector MaleBrand | Molex |
Key Features
- Compact MICRO-D design is one-third the size of standard D-Sub connectors.
- Supports 9 contacts for reliable signal transmission.
- Constructed with polybutylene terephthalate housing for durability.
- Contacts made from beryllium copper alloy plated with tin and gold for excellent conductivity and corrosion resistance.
- Rated for 1 A current and 500 V voltage for versatile electronic applications.
- Operates reliably between -55°C to 85°C.
- Through-hole mount ensures secure PCB attachment.
- Straight male connector with robust metal-to-metal interface for enhanced grounding and shielding.
Product Description
Norcomp 380-009-113L001 MICRO-D series 9 Way Straight D-Sub Connector Male is engineered for compact electronic component mounting with a 1.27 mm pin pitch and through-hole termination. Manufactured with precision, this connector features a polybutylene terephthalate housing that provides mechanical robustness and excellent insulation.
Its contacts are crafted from beryllium copper alloy with high-quality tin and gold plating, ensuring reliable electrical performance, resistance to corrosion, and longevity even under challenging operating conditions. The connector supports a current rating of 1 ampere and is rated for 500 volts, making it suitable for diverse industrial and commercial electronic applications.
Designed for efficient PCB integration, its through-hole mounting type and straight male orientation allow easy assembly and secure mechanical fit. The metal-to-metal interface enhances grounding and shielding effectiveness, reducing electromagnetic interference and improving signal integrity.
The connector is operable in ambient temperatures ranging from -55°C to 85°C, making it adaptable for demanding environments. It is ideal for use in manufacturing of instrumentation, industrial equipment, and compact electronic devices where space-saving, durability, and electrical reliability are critical.
Norcomp MICRO-D 380 series connectors intermate with most commercial competitive products and ensure compatibility across various platforms. This product originates from Taiwan, Province Of China.
Compact MICRO-D design is one-third the size of standard D-Sub connectors. Supports 9 contacts for reliable signal transmission. Constructed with polybutylene terephthalate housing for durability. Contacts made from beryllium copper alloy plated with tin and gold for corrosion resistance.
Rated for 1 A current and 500 V voltage. Operates in temperatures from -55°C to 85°C. Through-hole mounting ensures secure PCB connection. Robust metal-to-metal interface for grounding and shielding. Suitable for industrial and commercial electronic applications.
Explore Norcomp products at EnvMart for reliable D-Sub Connectors and advanced PCB mounting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1 ampere and a voltage of 500 volts, making it suitable for various electronic applications.
It operates reliably in ambient temperatures ranging from -55°C to 85°C, allowing it to function in demanding environments.
The pin pitch for this connector is 1.27 mm, which is designed for compact electronic component mounting.
The housing is made from polybutylene terephthalate, while the contacts are crafted from beryllium copper alloy plated with tin and gold for enhanced conductivity and corrosion resistance.
This model supports 9 contacts, ensuring reliable signal transmission.
It features a through-hole mount type, which ensures secure attachment to printed circuit boards (PCBs).
The connector has a straight orientation, which facilitates easy integration into various electronic designs.
Yes, it is designed to intermate with most commercial competitive products, ensuring compatibility across various platforms.
The termination type for this model is solder, which is standard for secure electrical connections.
This connector is ideal for use in the manufacturing of instrumentation, industrial equipment, and compact electronic devices where space-saving and electrical reliability are critical.
The robust metal-to-metal interface enhances grounding and shielding, reducing electromagnetic interference and improving signal integrity.
This product originates from Taiwan, Province Of China, ensuring a specific manufacturing quality standard.
