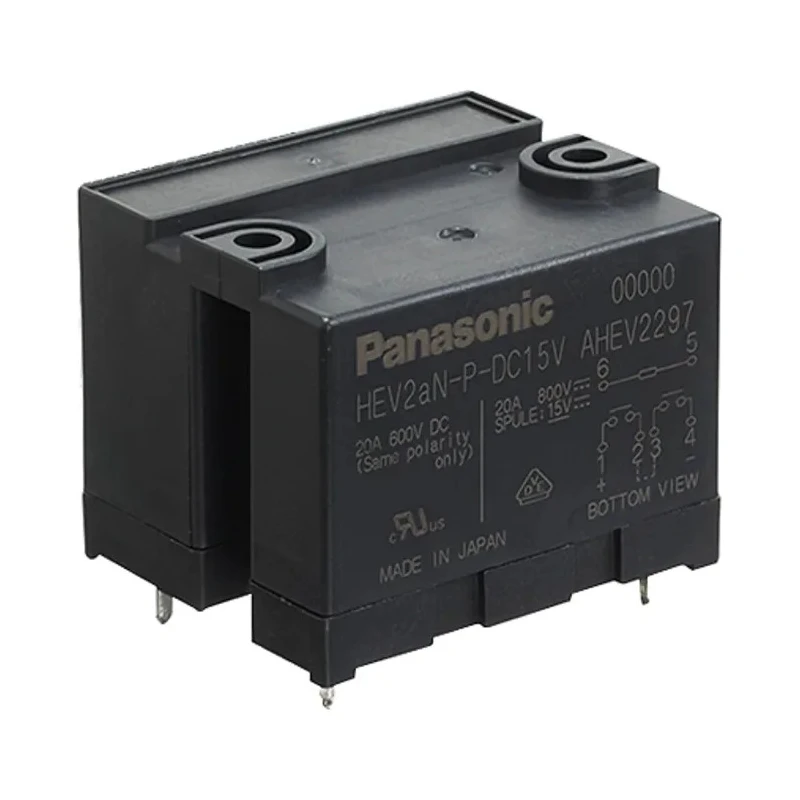

Panasonic PCB Power Relay, 24V DC Coil, 20A Switching Current, DPST HEV2AN-P-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 39.4mm |
| Length | 50mm |
| Model | HEV2AN-P-DC24V |
| Width | 41mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Contact arrangement | 2 Form A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 300Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 1kV dc |
| Switching AC Voltage | 1kV ac |
| Coil Power | 1.92W |
Key Features
- Features a compact size suitable for PCB mounting.
- Employs a silver alloy contact material ensuring durability.
- Operates reliably within -40°C to 85°C temperature range.
- Supports switching voltages up to 1kV AC and DC.
- Coil resistance is 300 ohms with a coil power consumption of 1.92W.
- Contact configuration is Double Pole Single Throw (DPST) with 2 Form A arrangement.
- Contact resistance is maintained low at 100 milliohms for efficient conduction.
Product Description
Panasonic HEV2AN-P-DC24V PCB Power Relay features a robust 24V DC coil designed to deliver a high switching current of 20A, configured in a Double Pole Single Throw (DPST) arrangement suitable for compact printed circuit board installations.
This relay is engineered for high voltage switching applications with excellent electrical endurance, supporting switching voltages up to 1kV AC and 1kV DC. Its silver alloy contacts ensure superior conductivity and reliability during operation.
Designed for industrial, electronic manufacturing, automation, and HVAC systems, this relay withstands operating temperatures ranging from -40°C to 85°C making it suitable for demanding environmental conditions.
The relay's coil resistance is precisely 300 ohms, consuming 1.92 watts of power, which contributes to its energy-efficient design. The contact resistance is minimized at 100 milliohms to reduce loss and heat.
With dimensions of 50mm in length, 41mm width, and 39.4mm height, this Panasonic HEV2AN-P-DC24V relay enables compact integration into complex control systems. Compact size tailored for PCB mounting applications. Silver alloy contact material enhances durability and conductivity.
Wide operating temperature range from -40°C to 85°C. Supports high voltage switching up to 1kV AC/DC. Energy-saving coil power of 1.92W with 300 ohms resistance. Low contact resistance of 100mΩ improves performance. Contact configuration: DPST with 2 Form A arrangement.
Suitable for photovoltaic systems, battery management, inverter and DC load controls. This product is manufactured in Japan and complies with cULus and VDE standards, assuring quality and safety. Explore more power relay solutions and related industrial electronics components on EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic HEV2AN-P-DC24V relay has a switching current capacity of 20A.
This relay operates with a coil voltage of 24V DC.
The dimensions of this relay are 50mm in length, 41mm in width, and 39.4mm in height.
The relay features a Double Pole Single Throw (DPST) contact configuration with a 2 Form A arrangement.
It operates reliably within a temperature range of -40°C to 85°C.
The relay employs silver alloy contact material, which enhances conductivity and durability.
The coil resistance for this model is 300 ohms.
It supports switching voltages up to 1kV AC and 1kV DC.
The contact resistance is maintained at 100 milliohms.
The coil power consumption is 1.92 watts.
This product complies with cULus and VDE standards, ensuring quality and safety.
This relay is designed for PCB mounting.
