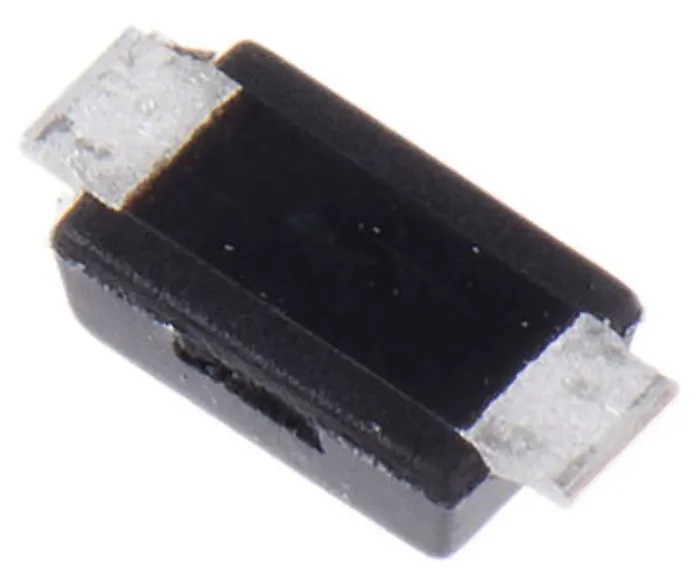

ROHM 40V 3A Schottky Barrier Diode, SOD-123FL, Surface Mount, 2-Pin, RBR3MM40ATR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.6mm |
| Model | RBR3MM40ATR |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | RBR3MM40A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 80mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 620mV |
| Peak Reverse Recovery Time trr | 8.1ns |
Key Features
- Maximum continuous forward current of 3A ensures reliable operation under demanding loads.
- Peak reverse repetitive voltage of 40V for robust protection against electrical transients.
- Compact SOD-123FL package design suitable for high-density PCB layouts.
- Fast reverse recovery time of 8.1ns supports rapid switching in power electronics.
- Low maximum forward voltage drop (620mV) minimizes power loss and improves efficiency.
- Wide operating temperature range (-55°C to 150°C) for harsh environments.
- Single Schottky diode configuration with 2-pin surface mount for easy installation.
- Peak surge forward current of 30A protects against brief overload events.
Product Description
ROHM RBR3MM40ATR Schottky Barrier Diode is a high-performance rectifier solution engineered for demanding electronics and power conversion systems. Featuring a surface mount configuration with a SOD-123FL package and 2-pin layout, this component offers both reliability and efficiency. Its 40V peak reverse repetitive voltage and 3A continuous forward current enable robust protection and steady performance in a wide range of industrial, commercial, and laboratory applications.
The diode's fast reverse recovery time (8.1ns) and low forward voltage drop (620mV) make it ideal for circuits requiring rapid switching with minimal energy loss. The compact SOD-123FL form factor facilitates integration into modern PCB designs, supporting space-sensitive applications such as power supplies, voltage regulators, and battery management systems.
Maximum continuous forward current of 3A ensures reliable operation under demanding loads. Peak reverse repetitive voltage of 40V for robust protection against electrical transients. Compact SOD-123FL package design suitable for high-density PCB layouts.
Fast reverse recovery time of 8.1ns supports rapid switching in power electronics. Low maximum forward voltage drop (620mV) minimizes power loss and improves efficiency. Wide operating temperature range (-55°C to 150°C) for harsh environments.
Single Schottky diode configuration with 2-pin surface mount for easy installation. Peak surge forward current of 30A protects against brief overload events. Automotive standard not certified, suitable for industrial and commercial use.
The RBR3MM40ATR Schottky Barrier Diode is suited for applications in industrial automation, laboratory instrumentation, consumer electronics, and telecommunications infrastructure where efficient rectification and fast switching are essential. Its durable build and wide operating temperature window make it compatible with challenging environments. Use cases include DC-DC converters, switching power supplies, battery recharge circuits, and signal rectification.
Explore more Schottky Diodes and semiconductor solutions from ROHM on EnvMart to find components that match your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the RBR3MM40ATR Schottky diode is 3A, ensuring reliable operation under demanding loads.
This model has a peak reverse repetitive voltage rating of 40V, providing robust protection against electrical transients.
The diode is packaged in a compact SOD-123FL configuration with a single Schottky diode layout and a 2-pin surface mount design.
The maximum forward voltage drop for this Schottky diode is 620mV, which helps minimize power loss and improve efficiency.
The RBR3MM40ATR features a fast reverse recovery time of 8.1ns, making it suitable for applications requiring rapid switching.
This diode operates within a wide temperature range of -55°C to 150°C, making it suitable for harsh environments.
The peak surge forward current for this Schottky diode is 30A, which protects against brief overload events.
The dimensions of this diode are 2.6mm in length, 1.6mm in width, and 0.8mm in height.
The RBR3MM40ATR is not certified for automotive standards but is suitable for industrial and commercial use.
This diode is suited for applications including DC-DC converters, switching power supplies, battery recharge circuits, and signal rectification.
The peak reverse current for this model is rated at 80mA, which is important for understanding its performance under reverse bias conditions.
The RBR3MM40ATR belongs to the RBR3MM40A series, which includes various Schottky barrier diodes designed for efficient rectification.
