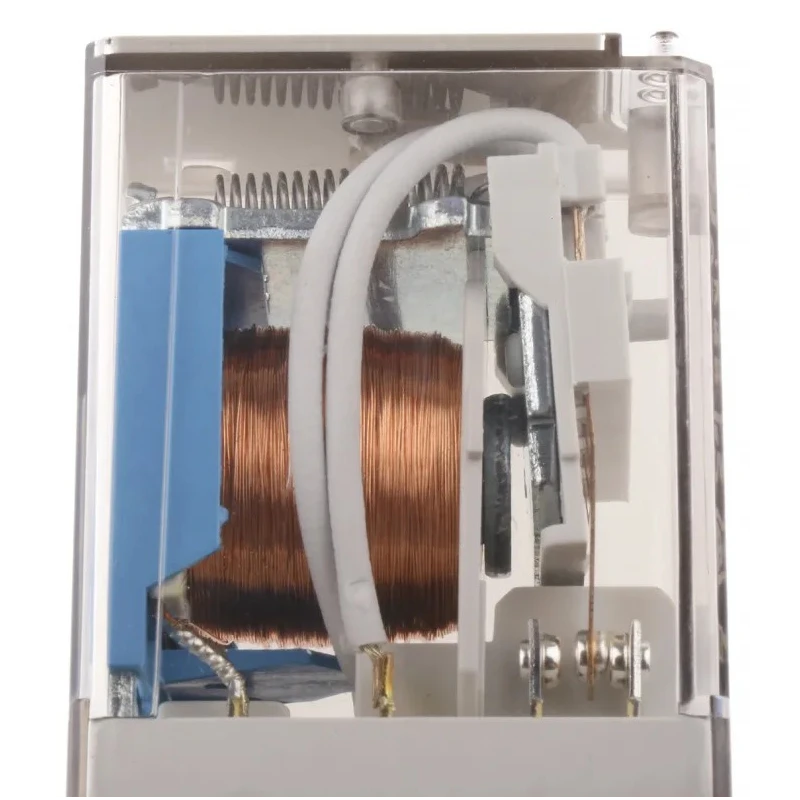

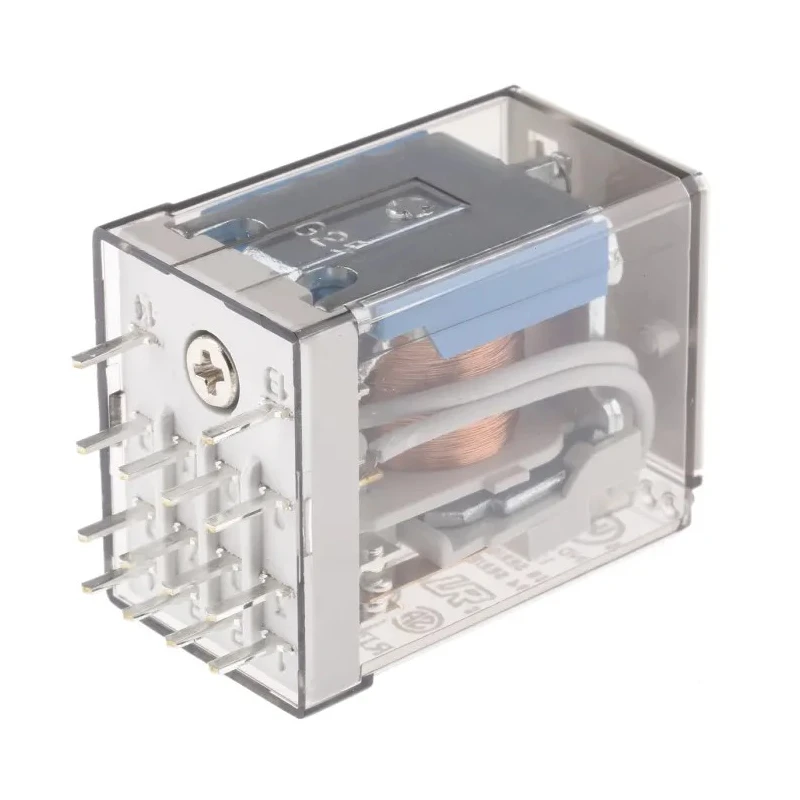

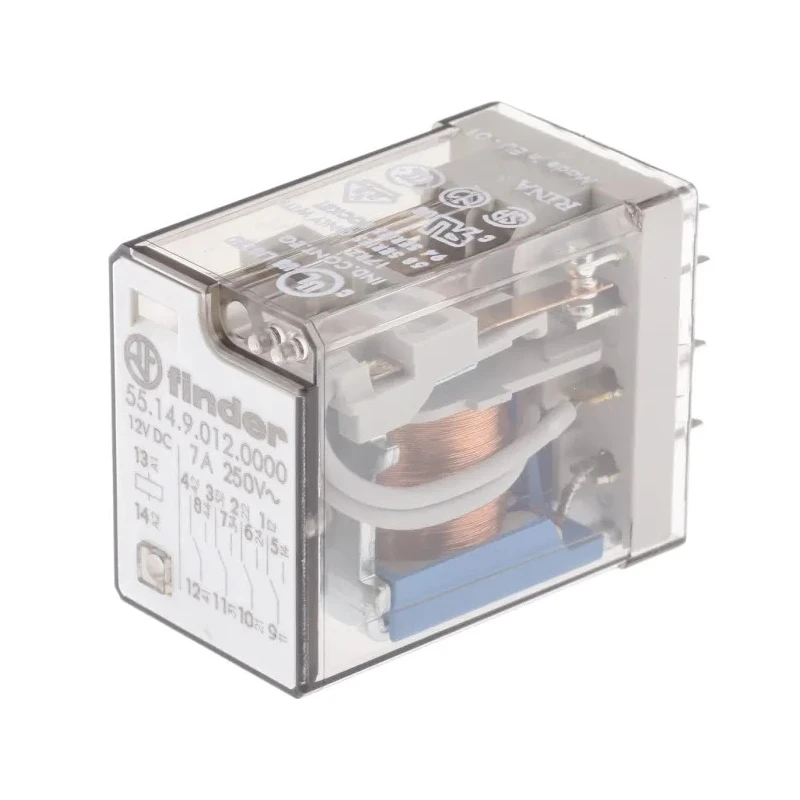

Finder PCB Power Relay 12V DC Coil, 7A Switching Current, 4PDT, Solder Terminal, 55.14.9.012.0000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 35.8mm |
| Length | 27.7mm |
| Width | 20.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 55 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 7A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 140Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1W |
| Finder Relay, 12V dc Coil, 7A Switching Current, 4PDTBrand | Finder |
Key Features
- Supports 12V DC coil voltage for versatile operation.
- 4PDT contact configuration enables complex circuit switching.
- Rated for 7A switching current providing robust performance.
- Solder terminals simplify secure PCB assembly.
- Silver alloy contacts ensure reliable conductivity and extended life.
- Operates in temperatures from -40°C to 85°C, suitable for harsh environments.
- High insulation voltage of 4 kV for electrical safety.
- Complies with RoHS for component reliability.
Product Description
Finder 55.14.9.012.0000 PCB Power Relay features a 12V DC coil and a robust 4PDT contact configuration, delivering dependable switching for industrial automation and control systems. Engineered with solder terminals for seamless PCB mounting, this relay is optimized for use in applications requiring reliable and high-capacity switching up to 7A.
The relay utilizes silver alloy contacts to maximize conductivity and operational longevity, supporting up to 150,000 cycles for minimized maintenance. Its compact form factor - 27.7mm length, 20.7mm width, and 35.8mm height - enables efficient integration into densely populated boards, control panels, and automation hardware.
Designed for challenging environments, the relay withstands extreme temperatures from -40°C to 85°C. The high insulation voltage of 4 kV ensures protection against electrical interference and surge currents, preserving system integrity in mission-critical applications.
Supports 12V DC coil voltage for versatile operation. 4PDT contact configuration enables complex circuit switching. Rated for 7A switching current providing robust performance. Solder terminals simplify secure PCB assembly.
Silver alloy contacts ensure reliable conductivity and extended life. Operates in temperatures from -40°C to 85°C, suitable for harsh environments. Compact design with dimensions: 27.7mm length, 20.7mm width, 35.8mm height.
High insulation voltage of 4 kV for electrical safety. Complies with RoHS for component reliability. Designed for use in industrial automation, control panels, and switchgear.
Industrial, laboratory, and commercial applications benefit from the relay's ability to manage complex outputs and high-duty cycles, including automation systems for blinds and grilles, road and tunnel lighting, shipyard hoists, cranes, circuit breakers, and switchgear assemblies. Its 4PDT configuration enables multiple output states, providing flexibility in electronic control designs.
All Finder relays are manufactured to rigorous quality standards and are recognized for their reliability in demanding environments. This product is RoHS compliant and meets international safety and performance standards.
Discover more PCB Power Relays, control components, and industrial automation solutions at EnvMart for optimized system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 12V DC, allowing for versatile applications in various control systems.
It is rated for a switching current of 7A, providing robust performance in switching applications.
The relay features a 4PDT (4 Pole Double Throw) contact configuration, enabling complex circuit switching.

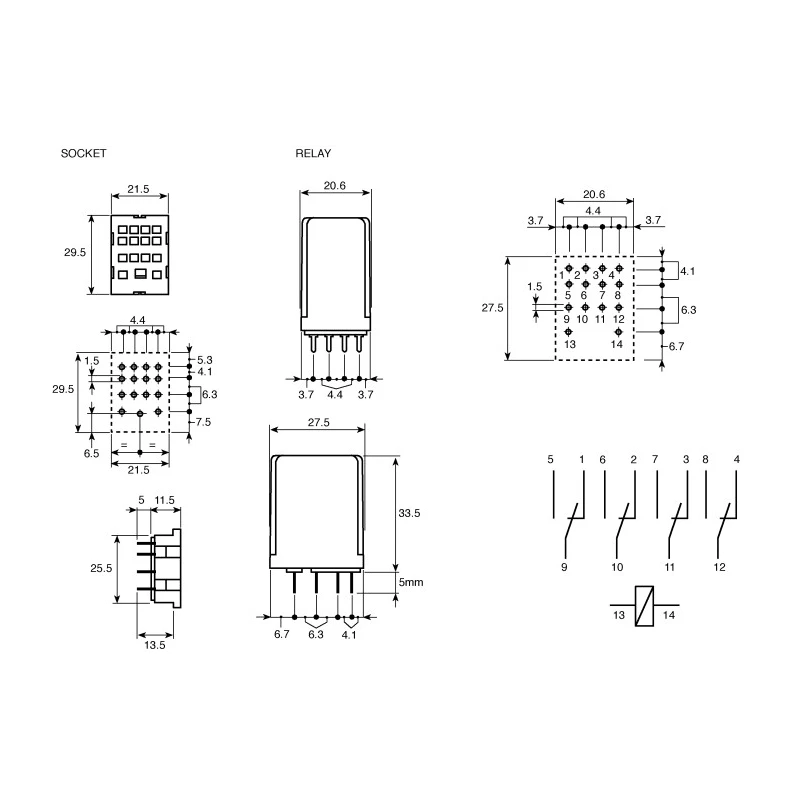

This unit has dimensions of 27.7mm in length, 20.7mm in width, and 35.8mm in height, making it compact for PCB integration.
It operates effectively in temperatures ranging from -40°C to 85°C, suitable for harsh environments.
This model is equipped with solder terminals, which facilitate secure PCB assembly.
The contacts are made of silver alloy, which ensures reliable conductivity and extended operational life.
It has a high insulation voltage rating of 4 kV, providing protection against electrical interference.
Yes, this model complies with RoHS standards, ensuring component reliability and environmental safety.
The coil resistance is 140Ω, which is relevant for determining the current draw at the specified coil voltage.
It is designed for use in industrial automation, control panels, and switchgear, managing complex outputs and high-duty cycles.
The coil power consumption is 1W, which indicates the energy required to energize the relay.
