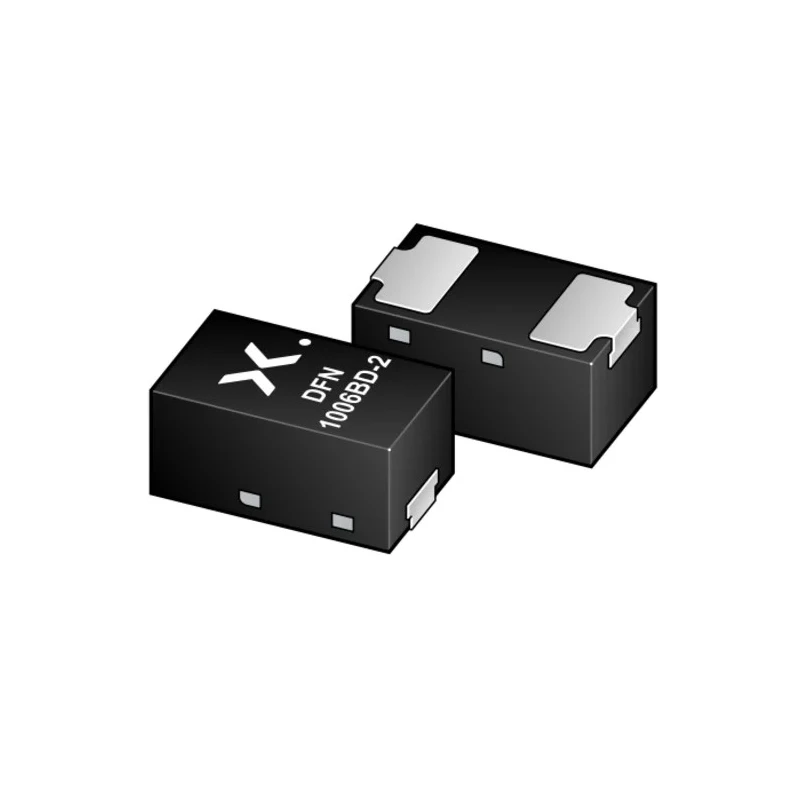

Nexperia Zener Diode 6.2V 365mW ±5% DFN1006BD-2, Surface Mount, Single Element, BZX8850S-C6V2-QYL

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Zener Diode 6.2V 365mW ±5% DFN1006BD-2, Surface Mount, Single Element, BZX8850S-C6V2-QYL

Name: Nexperia Zener Diode 6.2V 365mW ±5% DFN1006BD-2, Surface Mount, Single Element, BZX8850S-C6V2-QYL
Brand: Nexperia
SKU: 93409
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.47mm
Length	1mm
Model	BZX8850S-C6V2-QYL
Mount Type	Surface
Series	BZX8850S
Maximum Operating Temperature	150°C
Package Type	DFN1006BD-2
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	365mW
Diode Configuration	Single
Test Current It	50μA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	6.2V
Zener Type	Voltage Regulator
Maximum Zener Impedance	160Ω
Typical Voltage Temperature Coefficient	0.4mV/K

Key Features

Single-element Zener diode optimised for low-current voltage regulation.
Nominal Zener voltage of 6.2V with ±5% tolerance.
Maximum power dissipation of 365mW ensures reliable operation in demanding circuits.
Compact DFN1006BD-2 surface-mount package with 2 pins simplifies assembly.
Suitable for automotive and battery-powered portable applications.
Tested at low current (50μA) for precision performance.
Maximum reverse leakage current of only 1μA.
Wide operating temperature range from -55°C to 150°C.

Product Description

Nexperia presents the BZX8850S-C6V2-QYL, a robust 6.2V Zener diode engineered for reliable voltage regulation in modern electronic assemblies. Featuring a compact DFN1006BD-2 surface-mount package and a single-element configuration, this device serves as a fundamental building block for precise voltage clamping and regulation tasks in circuit designs.

Single Zener diode element for dedicated voltage regulation tasks. Nominal Zener voltage of 6.2V with a tight ±5% tolerance for accurate voltage reference. Maximum power dissipation up to 365mW for efficient thermal management.

Miniaturised DFN1006BD-2 SMD package for dense PCB layouts and high-volume manufacturing. Low test current of 50μA optimises it for low bias, battery-powered, and portable device applications. Maximum Zener impedance of 160Ω ensures fast transient response and stability.

Reverse leakage current limited to 1μA, supporting long-term reliability. Extreme operating temperature range, from -55°C to 150°C, for versatile use in harsh environments. AEC-Q101 compliant, suitable for automotive-grade implementations.

Plastic package with side-wettable flanks allows for automated optical inspection and reliable assembly.

The BZX8850S-C6V2-QYL is ideal for use in electronic regulation, protection circuits, voltage reference modules, power supplies, and automotive control units. Its design makes it well-suited for industrial electronics, laboratory equipment, and consumer electronic applications where stability and compactness are critical.

Experience the performance of Nexperia Zener diodes for your demanding electronics projects. Explore more Zener and protection components in the EnvMart Zener Diodes category for your design needs.
