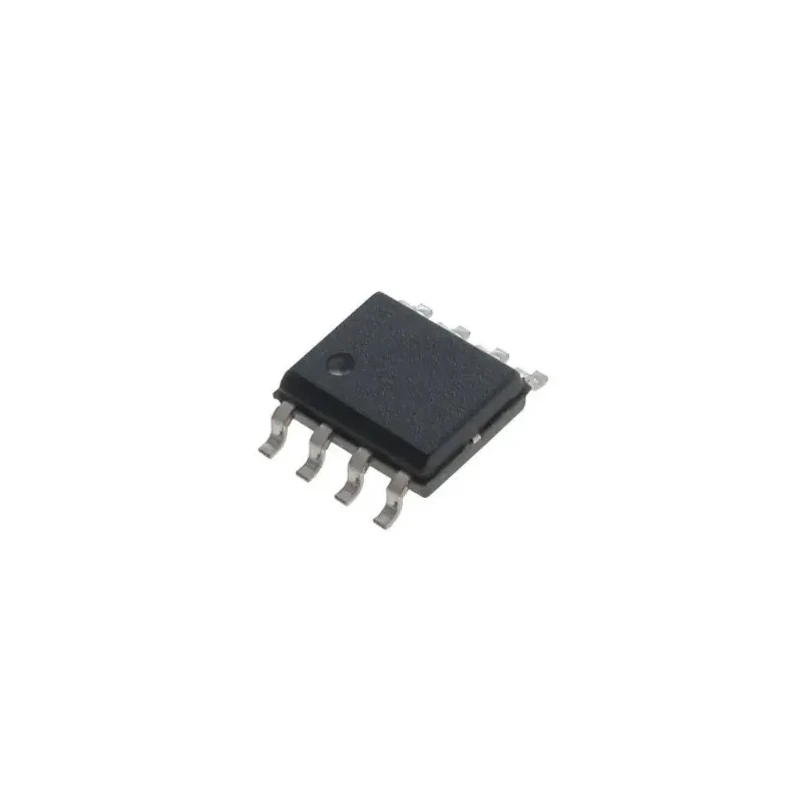

Nisshinbo Micro Devices Dual Operational Amplifier 27 MHz, 8-Pin SSOP, 18V, NJM2068V-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2068V-TE1 |
| Mount Type | Surface |
| Series | NJM2068 |
| Maximum Operating Temperature | 75°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 27MHz |
| Input Bias Current | 1000 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 6V/μs |
| Input Offset Current | 200 nA |
Key Features
- This op amp features a maximum gain bandwidth product of 27 MHz.
- It is housed in a compact SSOP 8-pin surface mount package for easy PCB integration.
- The amplifier supports a wide supply voltage range from 4V to 18V.
- Ideal for audio preamplifiers, servo error amplifiers and other low-noise signal processing applications.
- Operates reliably within a temperature range of -20°C to 75°C.
- Features low input offset voltage of only 3 mV for precision circuits.
- RoHS compliant for environmental assurance in manufacturing.
Product Description
Nisshinbo Micro Devices NJM2068V-TE1 is a dual operational amplifier designed for low-noise signal processing in a variety of industrial and commercial electronics. This component combines superior noise performance with a compact SSOP package, making it suitable for precision audio and servo applications. Its high gain bandwidth product of 27 MHz enables accurate high-frequency amplification in demanding circuit designs.
This surface mount device integrates two channels, ideal for stereo and differential applications. The 8-pin SSOP package simplifies installation and makes it suitable for automated assembly lines. Wide operating voltage between 4V and 18V allows flexible system integration.
Ultra-low input offset voltage of 3 mV ensures reliable, high-accuracy performance. Bipolar technology delivers dependable characteristics for signal processing. The device offers a slew rate of 6V/µs, suitable for rapid response applications.
RoHS compliance guarantees environmentally responsible engineering.
The amplifier performs consistently from -20°C up to 75°C, covering commercial, laboratory, and industrial environments. Typical uses include audio preamplifiers, servo error amplifiers, and any application where low noise is critical, such as medical instrumentation or control systems.
The NJM2068V-TE1’s combination of dual-channel configuration and advanced specifications makes it a preferred choice for designers seeking optimal performance and thermal stability. Its SSOP surface-mount format supports modern PCB manufacturing techniques.
Suitable for industrial electronics, laboratory instrumentation, telecommunications, audio engineering, and automated systems. It is an excellent fit for manufacturing, research, development, and precision signal analysis.
Explore more Operational Amplifiers and signal processing components by Nisshinbo Micro Devices and in the EnvMart Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM2068V-TE1 has a maximum gain bandwidth product of 27 MHz, enabling accurate high-frequency amplification.
This model supports a wide supply voltage range from 4V to 18V, allowing for flexible system integration.
It operates reliably within a temperature range of -20°C to 75°C, suitable for various environments including commercial and industrial applications.
This operational amplifier features two channels, making it ideal for stereo and differential applications.
The NJM2068V-TE1 has a low input offset voltage of 3 mV, which is beneficial for precision circuits.
It has a slew rate of 6V/μs, suitable for rapid response applications in signal processing.
This operational amplifier is housed in an 8-pin SSOP surface mount package, facilitating easy PCB integration.
Yes, it is RoHS compliant, ensuring environmental assurance in manufacturing.
The input bias current for the NJM2068V-TE1 is 1000 nA, which is typical for operational amplifiers in its class.
It is suitable for audio preamplifiers, servo error amplifiers, and other low-noise signal processing applications.
The NJM2068V-TE1 has an input offset current of 200 nA, which contributes to its precision performance.
The NJM2068V-TE1 comes in an 8-pin SSOP package, but specific dimensions are not provided in the available data.
