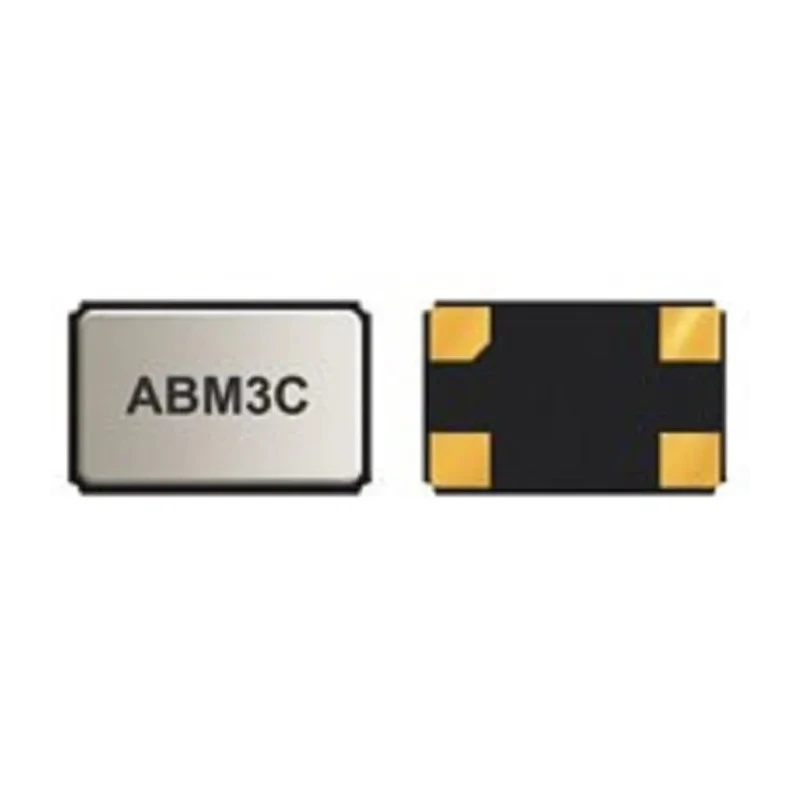

Abracon Surface Mount Crystal Unit 12.288 MHz ±50 ppm 4-Pin SMD ABM3C-12.288MHZ-D4Y-T

Abracon ABM3C-12.288MHZ-D4Y-T is a high-quality surface mount crystal unit, delivering an accurate 12.288 MHz frequency with a tight tolerance of ±50 ppm. Designed for precision timing in advanced electronic applications, including communication systems, modems, wireless devices, and test equipment, it features a robust ceramic SMD construction.

Standard 12.288 MHz frequency with ±50 ppm tolerance and stability assures reliable operation. Low height, suitable for thin PCBs and space-constrained designs. SMD package measures 5 mm x 3.2 mm x 1.3 mm for easy surface mount integration.

Operates efficiently across a -10°C to 70°C temperature range, with specified minimum and maximum operating conditions. Ideal for use in high-density circuit boards, wireless networks, and communication hardware. Tape & reel packaging for automated assembly lines.

RoHS-compliant, supporting environmentally responsible manufacturing standards. Features 18 pF load capacitance and 60Ω equivalent series resistance, enabling steady oscillation performance.

The ABM3C series from Abracon is renowned for tight frequency control and stability, making this piece suitable for time-critical applications in modems, PCMCIA, and portable wireless devices that demand rigorous quality and reliability. With a robust, seam-sealed package, the crystal is engineered to withstand industry-reflow processes, ensuring optimal performance throughout its lifecycle.

Typical industrial use cases include communication protocols, embedded systems, wireless networking modules, and general electronics design. Actual applications may extend to laboratory and test instrumentation, manufacturing process equipment, and high-performance devices where stable signal frequency is essential.

Explore more Crystal Units and electronic timing solutions from Abracon in EnvMart's Electronics Components category for enhanced design compatibility and performance.
