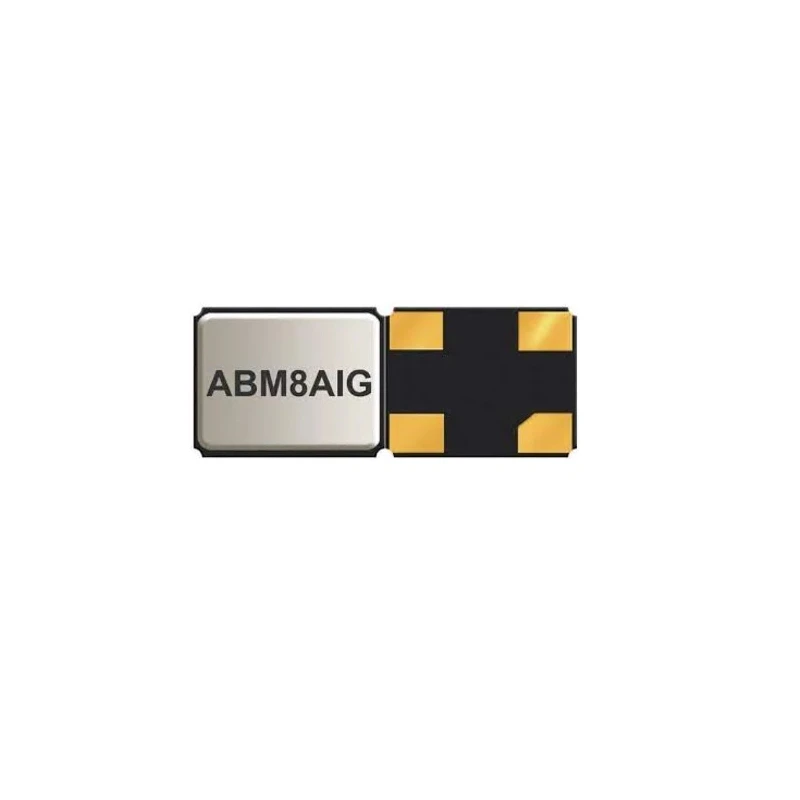

Abracon 8 MHz Surface Mount Crystal ±50 ppm Ceramic Package 4-Pin ABM8AIG-8.000MHZ-1Z-T

Abracon ABM8AIG-8.000MHZ-1Z-T crystal is a high accuracy, automotive and industrial grade surface mount component designed to provide precise timing in electronic circuits. Featuring a standard frequency of 8 MHz and an advanced ceramic package, this crystal is, ±50 ppm in both frequency tolerance and stability. The hermetically seam-sealed ceramic package ensures reliability in challenging environments including automotive, industrial, and commercial electronics.

This SMD crystal is characterized by its 4-pin configuration that fits modern production requirements and allows easy automation in assembly processes. Dimensions are compact - 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height - making it suitable for densely populated PCBs and applications where board space is limited.

Abracon’s ABM8AIG series is AEC-Q200 qualified and meets Automotive Grade 1 standards, with an extended operating temperature range from -40°C up to +125°C. The crystal offers a load capacitance of 18 pF and a series resistance of 500 Ω, ensuring stable oscillation and compatibility with standard oscillator circuits. Tape & reel packaging is supplied for production efficiency in manufacturing environments.

Typical applications include infotainment systems, GPS and navigation, ADAS, LiDAR, and any automotive solutions requiring robust and accurate timing devices. The RoHS/RoHS II compliance and Pb free status underscore environmental responsibility and global certification standards.

8 MHz operating frequency for reliable electronic signal generation. Ceramic hermetically sealed package for superior environmental protection. ±50 ppm frequency tolerance and stability for precise performance. Automotive Grade 1, AEC-Q200 qualified for demanding automotive and industrial use.

Surface mount 4-pin design compatible with automated assembly lines. Dimensions: 3.2 mm × 2.5 mm × 0.8 mm for compact installation. Load capacitance of 18 pF optimizes oscillator circuit stability. Wide operating temperature range supports harsh conditions (−40°C to 125°C).

Environmentally compliant: RoHS/RoHS II and Pb free.

Industrial and commercial use cases include microcontroller/processor clocking, frequency reference for communication systems, and precise timing in automotive electronics, manufacturing, laboratory instrumentation, and advanced industrial applications.
