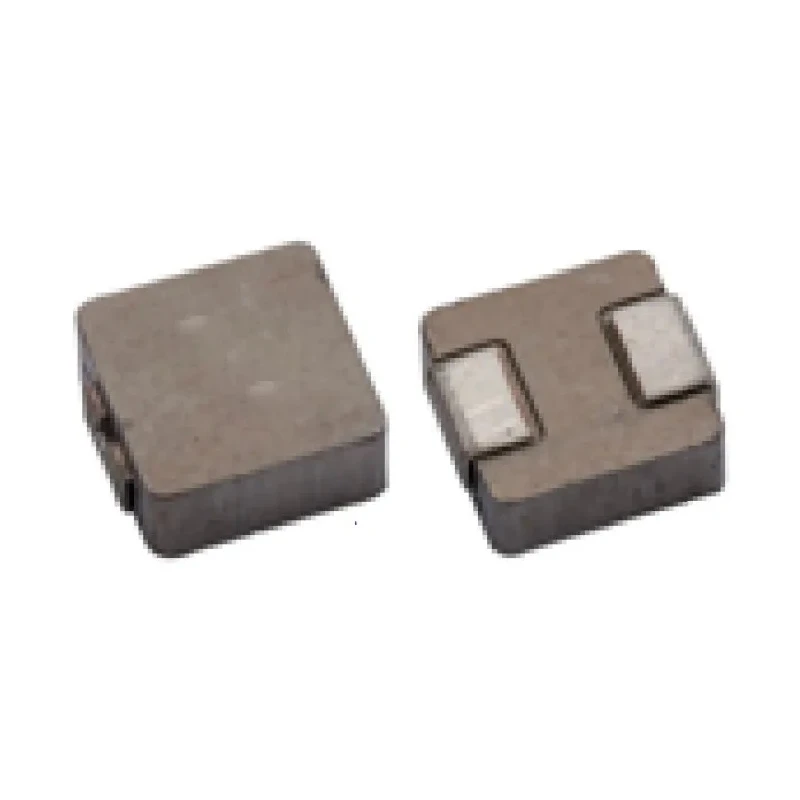

Abracon Shielded Surface Mount Inductor, Iron Core, 15μH, ±20% Tolerance, 5A Max DC Current, Flat Wire ASPI-0630LR-150M-T15
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 7.2mm |
| Model | ASPI-0630LR-150M-T15 |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | ASPI-0630LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 5A |
| Pin Count | 2 |
| Maximum DC Resistance | 120mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Shielded surface mount construction for improved electromagnetic compatibility.
- Features a high-reliability iron core for enhanced performance.
- Inductance rated at 15μH with ±20% tolerance.
- Supports up to 5A maximum DC current, suitable for high-current applications.
- Flat wire winding ensures low loss and high efficiency.
- RoHS compliant and suitable for reflow soldering processes.
- Operates across a wide temperature range from -55°C to 125°C.
Product Description
Abracon ASPI-0630LR-150M-T15 Shielded Surface Mount Inductor offers versatile performance for power electronics, including DC-DC converters, desktop and notebook computers, servers, and high-current power supplies. Designed with an iron core and flat wire winding, this inductor provides high saturation current and low DC resistance, making it reliable for applications up to 3MHz.
This molded SMD inductor ensures robust shielding and electromagnetic compatibility, and features compact dimensions of 7.2mm length, 3mm height, and 3mm depth. The surface mount termination style simplifies automated manufacturing and PCB integration.
Capable of handling a maximum DC current of 5A and maintaining an inductance of 15μH with ±20% tolerance, the ASPI-0630LR-150M-T15 is ideal for high-current and low-profile requirements. Its low DC resistance (120mΩ max) reduces losses, supporting efficient power conversion and signal integrity.
RoHS compliance ensures environmental suitability, while its robust design supports reflow soldering processes typical in electronics assembly. It operates reliably from -55°C to 125°C, suitable for demanding industrial and commercial electronics environments.
Shielded surface mount construction for improved electromagnetic compatibility. Features a high-reliability iron core for enhanced performance. Inductance rated at 15μH with ±20% tolerance. Supports up to 5A maximum DC current, suitable for high-current applications.
Flat wire winding ensures low loss and high efficiency. RoHS compliant and suitable for reflow soldering processes. Compact dimensions: 7.2mm length, 3mm height, and 3mm depth. Operates across a wide temperature range from -55°C to 125°C.
Typical industrial uses include power conversion in servers, desktop and notebook computers, DC-DC converter circuits, and low-profile, high-reliability power supplies. Also suitable for manufacturing, laboratory, and commercial electronics.
For more options in Surface Mount Inductors and Abracon electronic components, browse further on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance of this model is rated at 15μH with a tolerance of ±20%.
It supports a maximum DC current of 5A, making it suitable for high-current applications.
This inductor has compact dimensions of 7.2mm in length, 3mm in height, and 3mm in depth.
It features a flat wire winding construction, which ensures low loss and high efficiency.
It operates reliably across a wide temperature range from -55°C to 125°C.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
It is packaged in tape and reel format, which is suitable for automated manufacturing processes.
The maximum DC resistance is 120mΩ, which helps to reduce losses during operation.
It is ideal for use in power conversion applications, including DC-DC converters and high-current power supplies.
The termination style is surface mount, which simplifies PCB integration.
The country of origin for this model is India.
This inductor is part of the ASPI-0630LR series.
