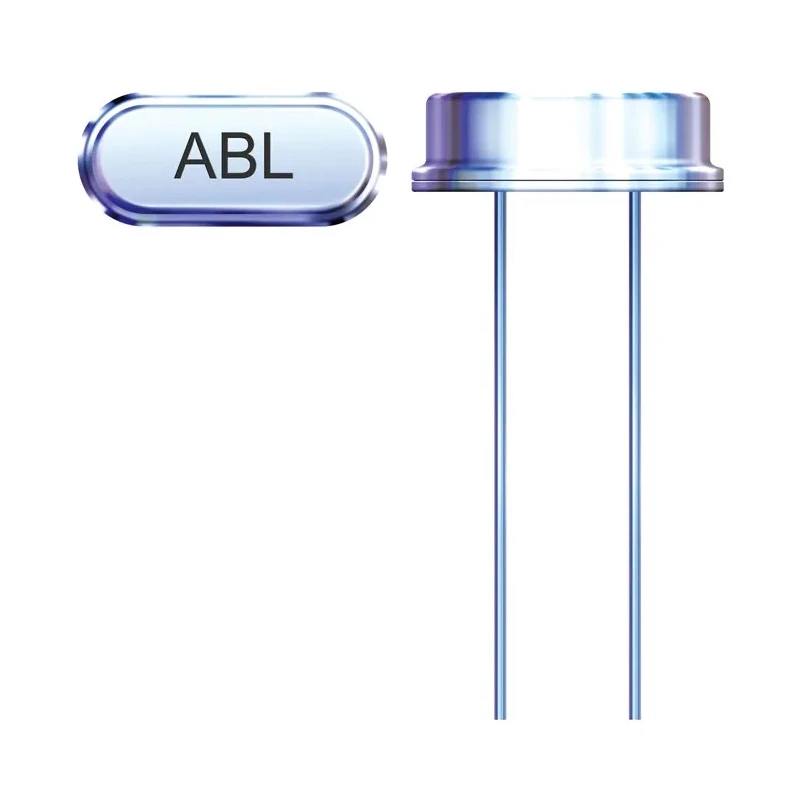

Abracon 12 MHz Crystal Unit ±20 ppm Through-Hole HC-49-US 2-Pin ABL-12.000MHZ-B2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Length | 11.5mm |
| Model | ABL-12.000MHZ-B2 |
| Packaging | Bulk |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | ABL |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Operates at a standard frequency of 12 MHz for precision timing applications.
- ±20 ppm frequency tolerance ensures accurate performance.
- Through-hole mounting improves stability and ease of integration on circuit boards.
- HC-49-US metal package provides robust resistance welding and durability.
- 18 pF load capacitance enables tight stability across operational environments.
- Working temperature range of 0°C to 70°C suits both commercial and industrial electronics.
- Bulk packaging supports efficient production insertion.
- Ideal for use in microprocessors, modems, communication circuits, and clock applications.
Product Description
Abracon introduces the ABL-12.000MHZ-B2 crystal unit, a high-reliability timing component operating at a standard frequency of 12 MHz. Engineered to deliver precise timing in a range of electronic circuits, it features ±20 ppm frequency tolerance for enhanced accuracy. The HC-49-US resistant welded metal package with a through-hole design makes it exceptionally robust and suitable for harsh environments or vibration-prone installations.
This 2-pin crystal is optimized for integration in microprocessor modules, modems, communication equipment, and specialty clock applications. With a load capacitance of 18 pF and a series resistance of 50 ohms, the unit provides tight frequency stability and consistent performance. The bulk packaging facilitates streamlined insertion in automated production processes, helping improve manufacturing productivity and reduce costs.
Operates at 12 MHz with ±20 ppm frequency tolerance for accurate signal generation. HC-49-US metal package resists mechanical stress and ensures durability. Through-hole mounting for secure placement on PCBs and reliable connectivity.
18 pF load capacitance and 2-pin design suit diverse digital circuits. Temperature range from 0°C up to 70°C for dependable operation under varying conditions. Complies with RoHS and lead-free standards for environmental sustainability.
Packaged in bulk for efficient assembly and production throughput. Proven resistance-welded metal package delivers stability and longevity. Suitable for computers, communications, modems, high-precision TCXO, clock circuits, and microprocessors.
Typical industrial, laboratory, and commercial use cases include timing in electronic modules, precise frequency references in communications, and clock generation for microprocessor-based equipment. The Abracon ABL Series is known for its tight stability, extended temperature performance, and reliable resistance-welded design.
Explore more Crystal Units and frequency components in the Electronics Components category on EnvMart, and browse other Abracon solutions optimized for demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Abracon ABL-12.000MHZ-B2 crystal unit operates at a standard frequency of 12 MHz, making it suitable for precision timing applications.
It has a frequency tolerance of ±20 ppm, ensuring accurate performance in timing applications.
This unit features a through-hole mounting design, which improves stability and ease of integration on circuit boards.
The load capacitance of this crystal unit is 18 pF, which contributes to its tight frequency stability across operational environments.
It operates within a temperature range of 0°C to 70°C, making it suitable for both commercial and industrial electronics.
The ABL-12.000MHZ-B2 is housed in an HC-49-US metal package, which provides robust resistance to mechanical stress and durability.
The series resistance of this model is 50 ohms, which helps maintain consistent performance.
This crystal unit is ideal for use in microprocessors, modems, communication circuits, and clock applications.
The ABL-12.000MHZ-B2 features a 2-pin design, which is common for integration in various digital circuits.
It complies with RoHS standards, ensuring it meets environmental sustainability requirements.
This model is packaged in bulk, which supports efficient production insertion and assembly processes.
The country of origin for this crystal unit is India.
