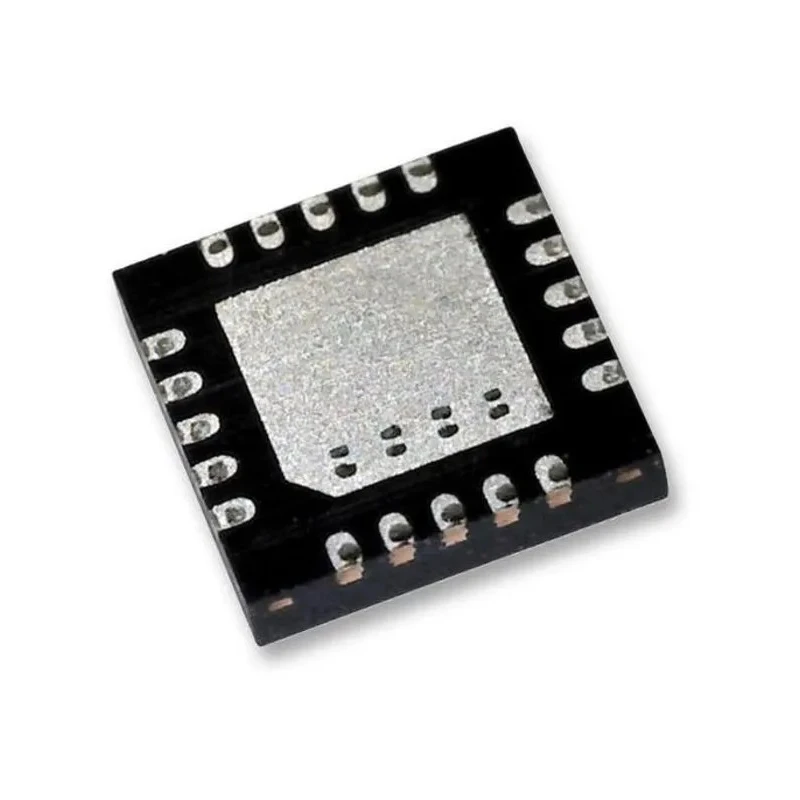

STMicroelectronics 2-Channel CMOS Line Transceiver, Inverting, 20-Pin, 3-State Output, L6364W
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.47mm |
| Length | 2.57mm |
| Model | L6364W |
| Width | 2.57mm |
| Output type | 3 State |
| Series | L6364 |
| Input Type | CMOS |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| Number Of Channels | 2 |
| Pin Count | 20 |
| Maximum Supply Voltage | 35V |
| Logic Family | CMOS |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 5V |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 50mA |
Key Features
- CMOS logic family ensures reliable electronic performance.
- Two-channel operation enables versatile line interface connectivity.
- Inverting polarity and 3-state output for advanced signal control.
- Wide supply voltage range from 5V to 35V for flexible applications.
- 20-pin package suitable for integration in compact designs.
- Supports IO-Link standard for sensor and actuator interfaces.
- Operating temperature range from -40°C to 150°C for robust industrial use.
- Microcontroller interface via SPI for configuration and control.
Product Description
STMicroelectronics L6364W is a high-performance, dual-channel line transceiver ideal for industrial sensor and actuator applications. Based on CMOS logic family, this device delivers inverting logic with a 3-state output and provides buffer and line driver functionality to ensure reliable data transmission. The 20-pin package allows easy integration into compact electronic designs.
CMOS logic family for robust signal processing. Two independent channels designed for flexible line interface control. Inverting polarity and configurable 3-state output for advanced electronic circuits. Wide supply voltage range (5V to 35V) supports various industrial environments.
Microcontroller configuration via SPI interface for customizable operation. IO-Link standard compatibility ensures seamless connection with sensor and actuator networks. Linear regulators and DC-DC regulator (50 mA, configurable frequency from 0.5 MHz to 2 MHz) enhance power delivery.
Comprehensive operating temperature range (-40°C to 150°C) suitable for demanding conditions.
This transceiver acts as a physical layer bridge between a microcontroller and a 24V supply/signalling line, making it suitable for sensor, actuator, and industrial automation systems. With a maximum propagation delay time of 10μs and 2.5V - 5V compatible I/O lines, the L6364W meets many automation and control requirements.
Applications include industrial sensor interfacing, automation lines, IO-Link physical layer implementations, and electronic equipment requiring high-reliability line transceivers. Designed for use in electronics manufacturing, automation, laboratories, and systems integration.
Explore more industrial interface ICs and system solutions from STMicroelectronics and related categories at EnvMart.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L6364W operates within a supply voltage range of 5V to 35V, making it suitable for various industrial applications.
This model has a maximum operating temperature of 150°C, allowing it to function effectively in demanding environments.
The L6364W supports two independent channels, enabling versatile line interface connectivity.
It provides a 3-state output, which allows for advanced signal control in electronic applications.
The input type for this model is CMOS, which is part of its logic family ensuring reliable electronic performance.
The maximum propagation delay time for the L6364W is 10μs, which is suitable for many automation and control applications.
The dimensions of this model are 2.57mm in length, 2.57mm in width, and 0.47mm in height.
It supports the IO-Link standard, ensuring seamless connectivity with sensor and actuator networks.
This model functions as a buffer and line driver, facilitating reliable data transmission in electronic circuits.
The supply current for this model is 50mA, which is relevant for power delivery in applications.
The operating temperature range for the L6364W is from -40°C to 150°C, making it suitable for robust industrial use.
It can be configured and controlled via a microcontroller interface using SPI, allowing for customizable operation.
