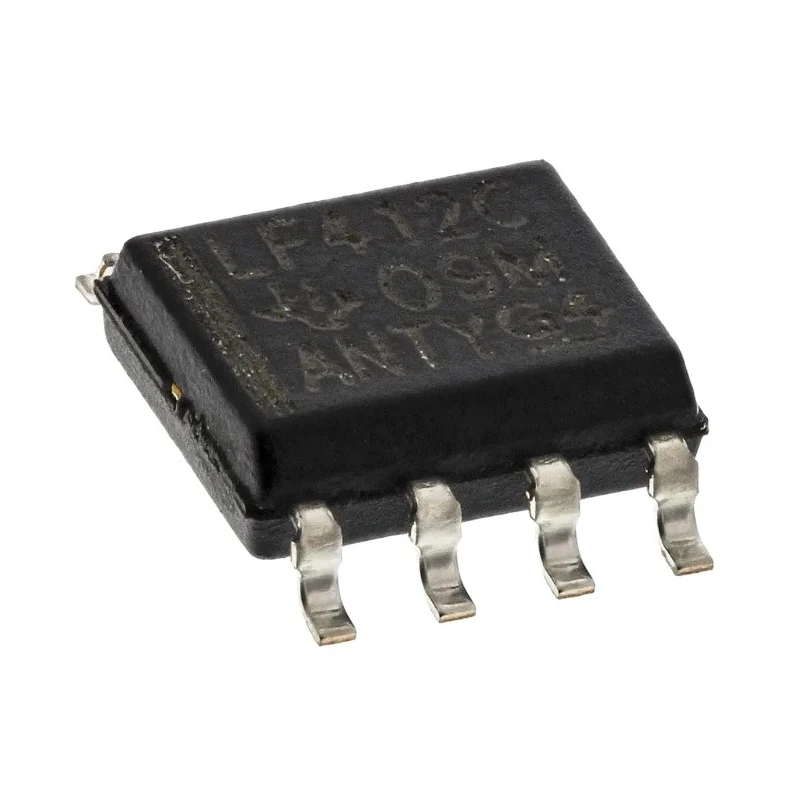

Texas Instruments LF412CD Operational Amplifier 3MHz SOIC-8 Dual-Channel ±18V
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | LF412CD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LF412C |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 4 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
Key Features
- Dual-channel JFET-input operational amplifier with high gain bandwidth product of 3MHz.
- SOIC-8 surface mount package for compact PCB integration.
- Wide supply voltage range from −18V to +18V for flexible circuit applications.
- Low input offset voltage of 3mV improves precision for analog signal processing.
- Slew rate of 13V/μs ensures fast signal response and accurate amplification.
- Input bias current of only 4nA, suitable for low-current circuits.
- Operating temperature range from 0°C to 70°C for lab and industrial environments.
- Ideal for instrumentation, signal conditioning, and analog circuit design.
Product Description
Texas Instruments LF412CD is a dual-channel JFET-input operational amplifier, designed for high-precision analog applications. Featuring a gain bandwidth product of 3MHz, it delivers reliable amplification of signals in instrumentation and industrial electronics.
This operational amplifier comes in an 8-pin SOIC surface mount package, making it suitable for modern PCB layouts and compact designs. With a wide supply voltage range from −18V to +18V, it offers compatibility with various power configurations, ensuring design flexibility.
The LF412CD boasts a low input offset voltage of just 3mV, enabling enhanced accuracy in signal processing and sensor interfacing. A high slew rate of 13V/μs contributes to rapid signal transitions and minimal distortion, making it an excellent choice for audio, analog, and measurement circuits.
Dual-channel JFET-input operational amplifier offering precision and speed. Gain bandwidth product of 3MHz suitable for high-frequency applications. SOIC-8 surface mount with 8 pin count for easy integration in electronics projects.
Operates reliably between 0°C and 70°C, covering lab and light industrial settings. Low current specifications: bias current of 4nA, offset current of 2nA. Compact footprint with dimensions: 4.9mm x 3.91mm x 1.58mm. Ideal for analog signal conditioning, sensor amplification, and circuit design in instrumentation, manufacturing, and laboratory equipment.
The robust construction and JFET input design ensure low noise and minimal input bias, suitable for precision measurements in laboratory instruments, industrial automation, and medical devices. Easily incorporated in amplifier blocks, active filters, signal conditioning, and control systems.
Browse the complete range of Texas Instruments Operational Amplifiers and related analog ICs at EnvMart for advanced electronics projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LF412CD operational amplifier is 3MHz, making it suitable for high-frequency applications.
It operates with a supply voltage range from −18V to +18V, providing flexibility for various circuit applications.
The input offset voltage is 3mV, which enhances the precision of analog signal processing.
The slew rate of the LF412CD is 13V/μs, ensuring fast signal response and accurate amplification.
The input bias current is 4nA, making it suitable for low-current circuits.
This model has dimensions of 4.9mm in length, 3.91mm in width, and 1.58mm in height.
The LF412CD features two channels, allowing for dual-channel signal processing.
The operating temperature range is from 0°C to 70°C, suitable for lab and light industrial environments.
It comes in an 8-pin SOIC surface mount package, facilitating compact PCB integration.
This operational amplifier is ideal for instrumentation, signal conditioning, and analog circuit design.
The input offset current is 2nA, contributing to the operational amplifier's precision in measurements.
The LF412CD is part of the LF412C series of operational amplifiers by Texas Instruments.
