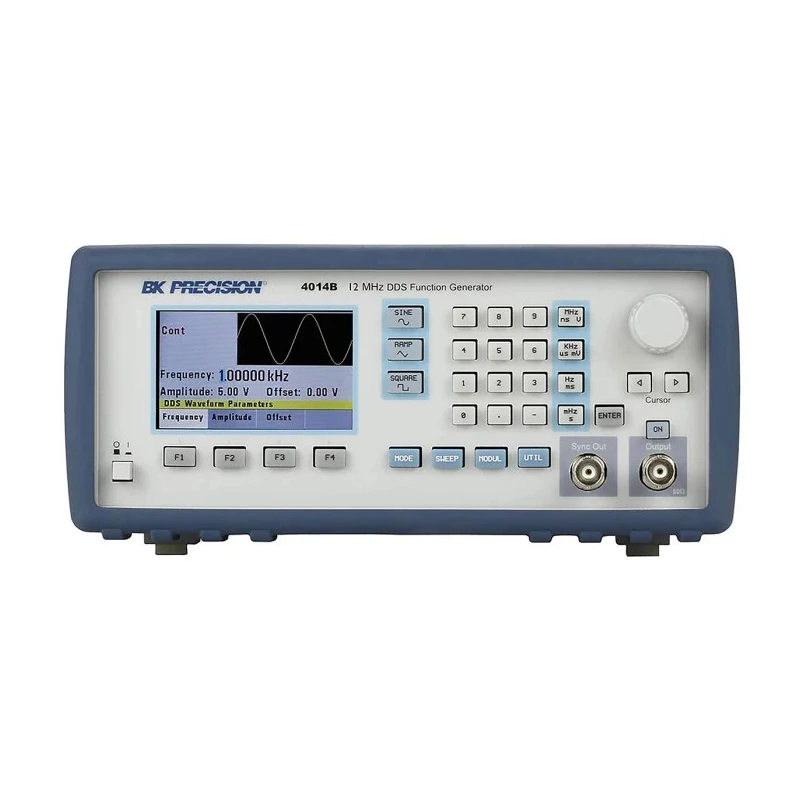

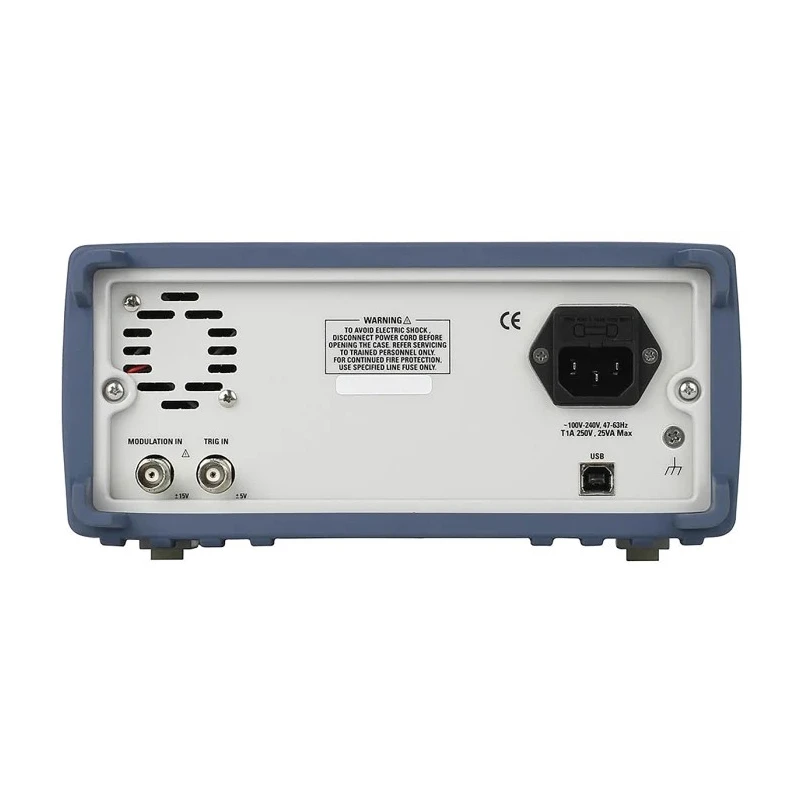

BK Precision Function Generator 0.01 Hz - 12 MHz FM Modulation, Variable Sweep BK4014B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | BK Precision |
| Height | 88mm |
| Length | 213mm |
| Model | BK4014B |
| Gross Weight | 2.5kg |
| Width | 210mm |
| Maximum Operating Temperature | 50°C |
| Input Impedance | 10kΩ |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB Interface with SCPI-compliant command set |
| Time Base Accuracy | 0.01 % ± 0.006 Hz |
| Interface Type | USB |
| Standards/Approvals | Low Voltage 2006/95/EC, EN61010, EN55011, EMC 2004/108/EC, EN55082 |
| Maximum Frequency Range Sinewave | 12MHz |
| Minimum Frequency Range Sinewave | 0.01Hz |
| Maximum Frequency Range Square Pulse/Arbitrary Waveform | 20MHz |
| Minimum Frequency Range Square Pulse/Arbitrary Waveform | 0.01Hz |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| TTL Output Level | 5V Pk-Pk |
| Output Amplitude | 20 V Pk-Pk |
Key Features
- Provides sine, square, and triangle waveform generation.
- Offers variable sweep functions for linear and logarithmic signals.
- Features FM and AM modulation capabilities for advanced testing scenarios.
- Includes a bright colour LCD display with waveform preview for user-friendly operation.
- Supports adjustable duty cycle and independent DC offset settings.
- Has gate and burst mode functionalities for signal customization.
- Equipped with USB interface and SCPI-compliant command set for PC integration.
- Short circuit and overvoltage protection ensures safe operation.
Product Description
BK Precision BK4014B Function Generator is engineered to meet demanding laboratory, educational, and industrial signal generation requirements. It combines direct digital synthesis (DDS) with a low-jitter square wave generator to deliver high precision and stability across multiple waveform types, including sine, square, and triangle signals.
This instrument offers an expansive frequency range from 0.01 Hz to 12 MHz for sine waves and up to 20 MHz for square pulses. Its variable sweep functions include both linear and logarithmic sweep modes, making it suitable for frequency response testing and simulation work. FM and AM modulation capabilities extend its usefulness in complex testing scenarios such as communications and circuit development.
The BK4014B features a vivid colour LCD display with waveform preview, providing intuitive control and visualization. The adjustable duty cycle and independent DC offset amplifier design allow for large offsets even with small amplitude signals, supporting advanced biasing and injection tasks within circuits.
Provides sine, square, and triangle waveform generation. Offers variable sweep functions for linear and logarithmic signals. Features FM and AM modulation capabilities for advanced testing scenarios. Includes a bright colour LCD display with waveform preview for user-friendly operation.
Supports adjustable duty cycle and independent DC offset settings. Has gate and burst mode functionalities for signal customization. Equipped with USB interface and SCPI-compliant command set for PC integration. Short circuit and overvoltage protection ensures safe operation.
Additional functions include store and recall instrument settings, internal/external triggering, built-in counter, and output On/Off control. The unit outputs up to 20 V peak-to-peak (open circuit) and 10 V peak-to-peak into 50 Ω, offering flexibility for various load conditions.
Industrial applications of the BK Precision BK4014B include electronics manufacturing, circuit development, laboratory testing, educational use, and any scenario requiring reliable digital function generation with sweep and modulation capabilities.
Supplied accessories typically include an instruction manual on CD, power cord, USB interface cable (type A to B), and certificate of calibration. Explore more in Function Generator and Precision Test Equipment Category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a frequency range from 0.01 Hz to 12 MHz for sine waves and up to 20 MHz for square pulses.
It provides sine, square, and triangle waveform generation, along with variable sweep functions for linear and logarithmic signals.
This unit features FM and AM modulation capabilities, making it suitable for advanced testing scenarios.
It can output up to 20 V peak-to-peak in open circuit conditions and 10 V peak-to-peak into a 50 Ω load.
The dimensions are 213 mm in length, 210 mm in width, and 88 mm in height.
It is equipped with a USB interface and supports a SCPI-compliant command set for PC integration.
The time base accuracy is 0.01 % ± 0.006 Hz.
The input impedance is 10 kΩ.
It operates within a temperature range of 0°C to 50°C.
It complies with Low Voltage 2006/95/EC, EN61010, EN55011, EMC 2004/108/EC, and EN55082 standards.
Typically included accessories are an instruction manual on CD, power cord, USB interface cable (type A to B), and a certificate of calibration.
It is suitable for electronics manufacturing, circuit development, laboratory testing, and educational use, among other signal generation tasks.
