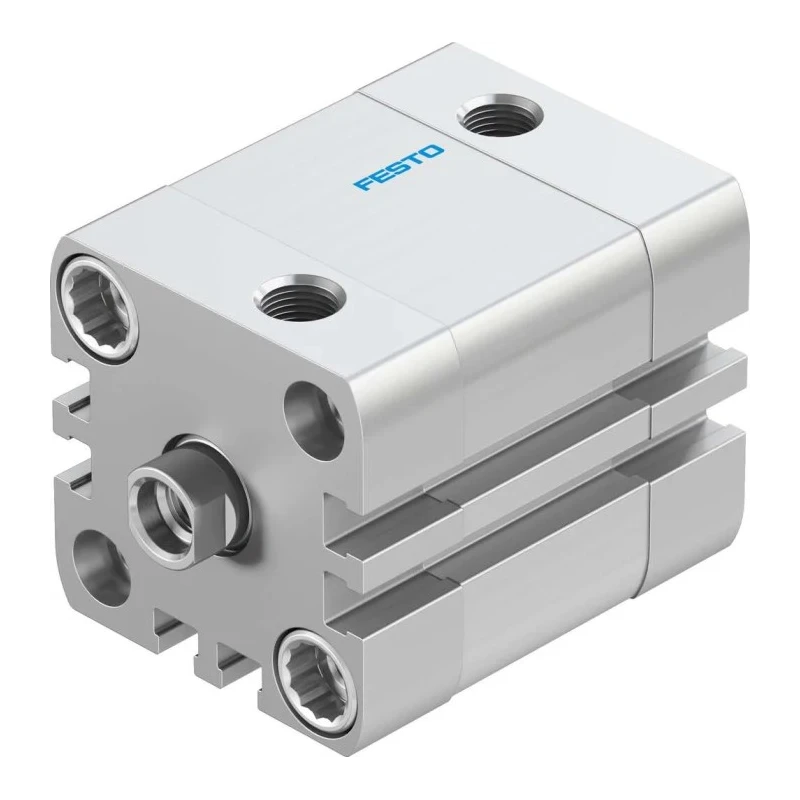

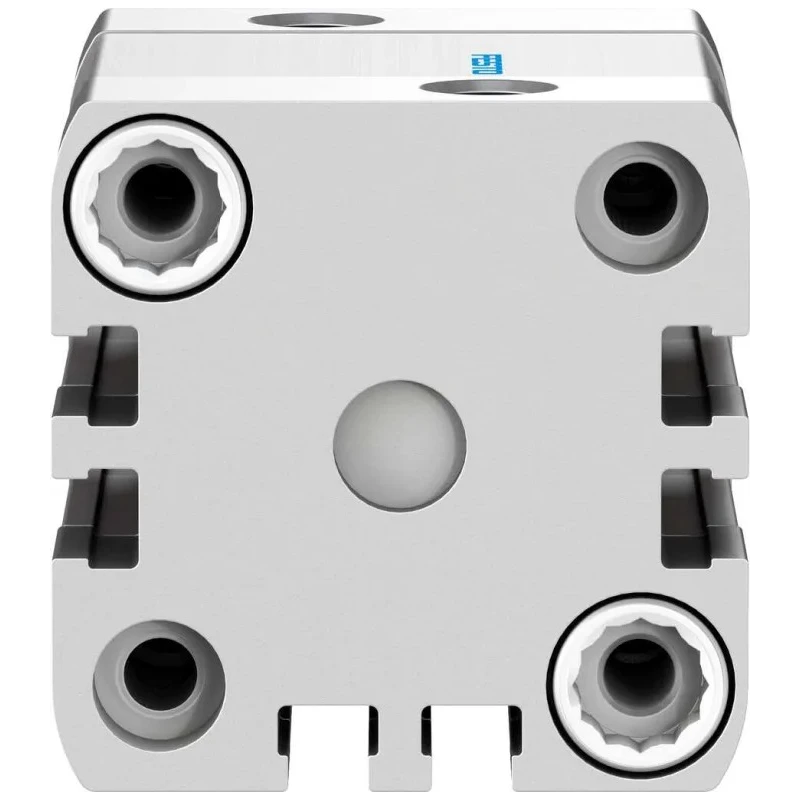

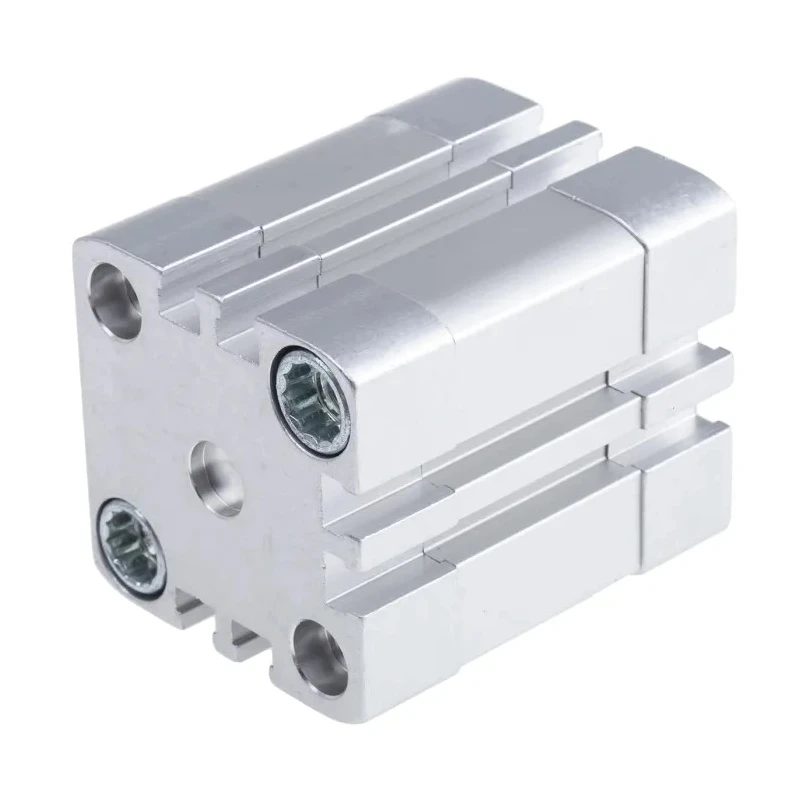

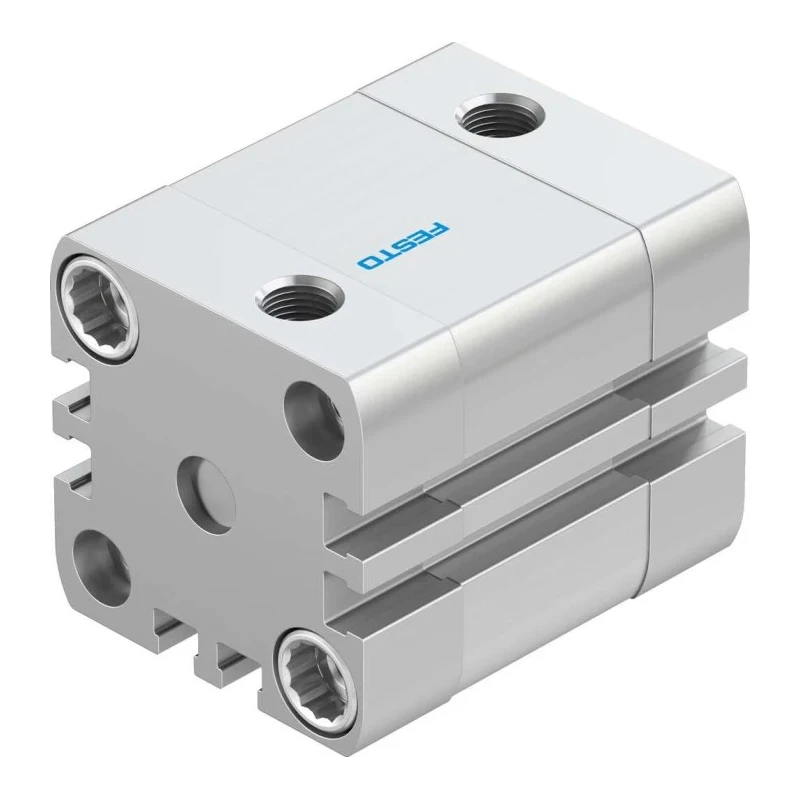

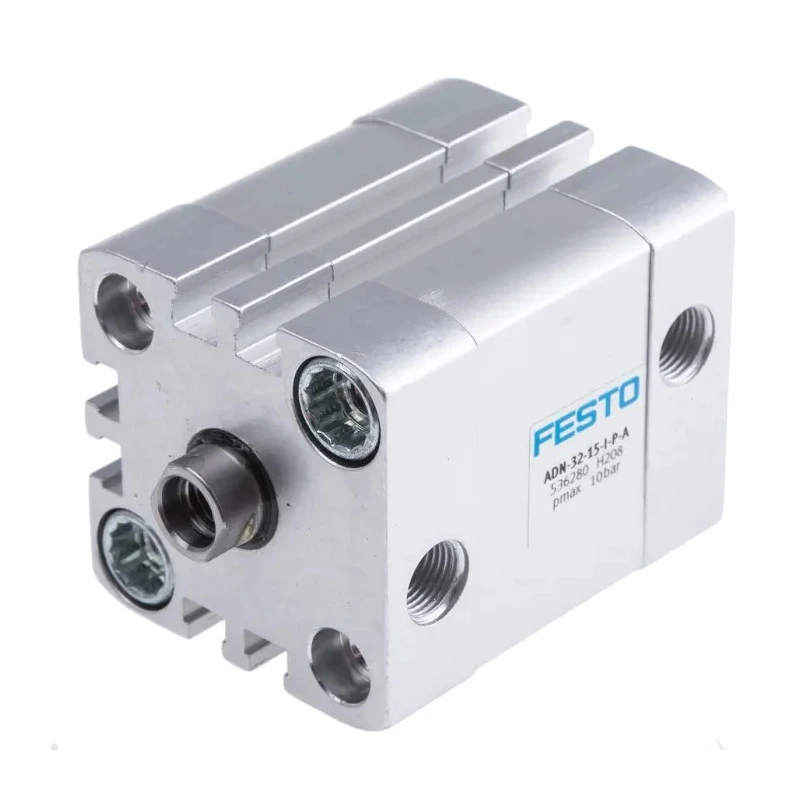

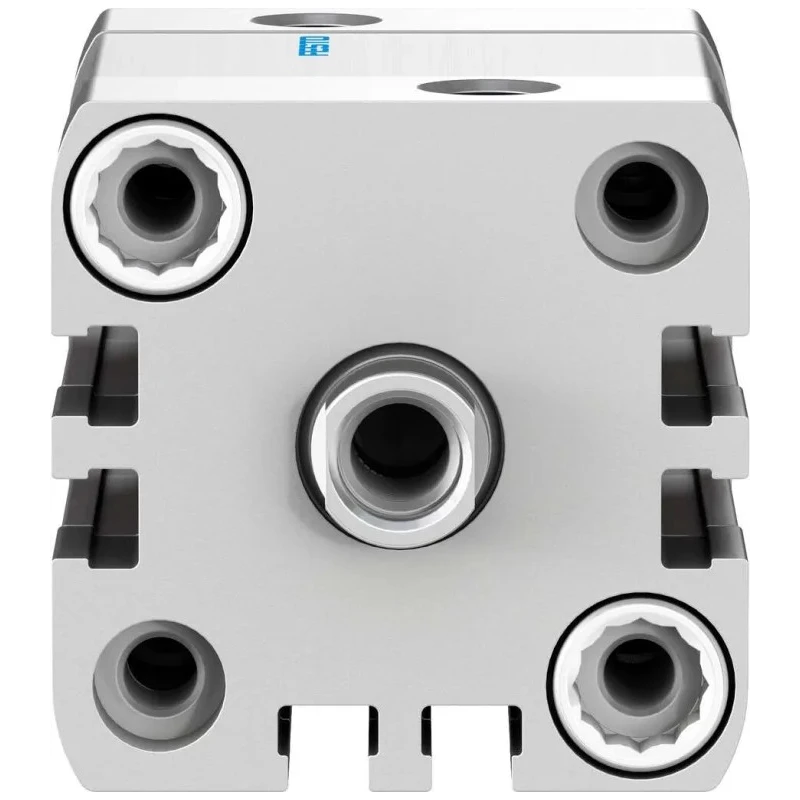

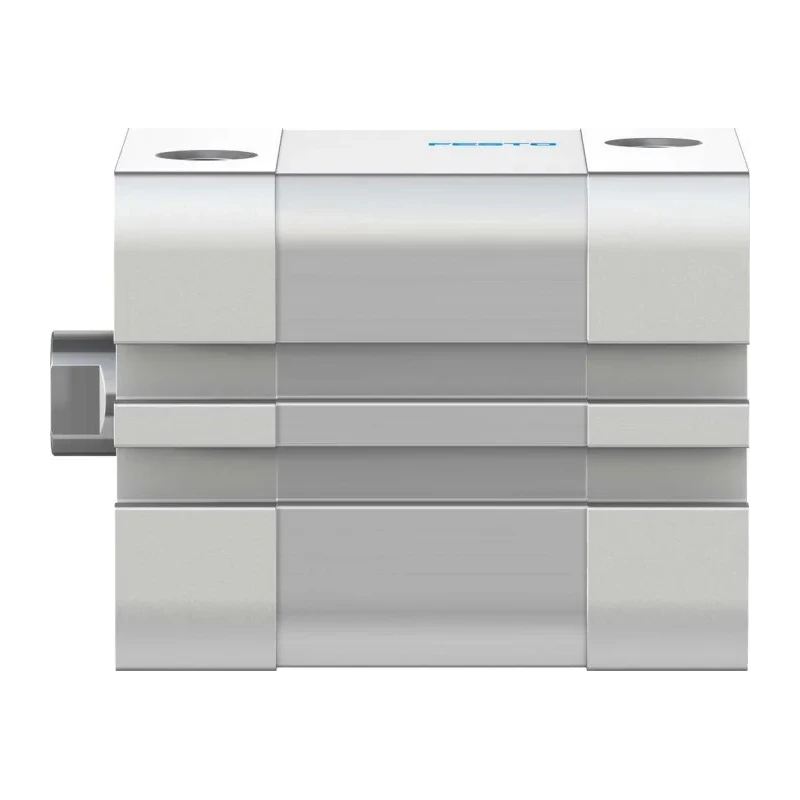

Festo Pneumatic Cylinder, Double Acting, 32mm Bore, 15mm Stroke, Aluminium Body ADN-32-15-I-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 47mm |
| Length | 65mm |
| Model | ADN-32-15-I-P-A |
| Gross Weight | 310g |
| Width | 47mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 15mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Cushioning Rings |
| Piston Rod Gender | Female |
| Piston Rod Thread Size | 1/8 in G |
Key Features
- Double acting pneumatic cylinder delivers 15mm linear stroke with accurate control.
- 32mm bore diameter ensures robust force output for a range of applications.
- Manufactured from corrosion-resistant aluminium for extended service life and durability.
- Compact ADN series design is up to 50% smaller than standard cylinders for installation in tight spaces.
- Supports both advance and retract piston rod movement using compressed air in dual ports.
- Equipped with cushioning rings to minimize impact, reduce noise, and improve system longevity.
- Built-in magnet enables position sensing with optional proximity sensors.
- Operating pressure up to 10 bar and temperature range from -20°C to +80°C.
Product Description
The Festo ADN-32-15-I-P-A Pneumatic Cylinder is a high-performance, double acting actuator designed for demanding industrial environments. With a 32mm bore and a precise 15mm stroke, this compact cylinder offers smooth and accurate motion control, making it suitable for a variety of automation tasks.
Constructed from high-strength aluminium alloy, the ADN series cylinder is engineered for durability and corrosion resistance, ensuring reliable performance even in damp or challenging settings. Its double acting operation allows compressed air to move the piston rod in both directions, providing flexibility and efficiency for advancing or retracting loads.
The built-in cushioning rings absorb end-of-stroke energy, minimizing vibration, impact, and noise, which prolongs the component's service life and enhances production line stability. The compact size (65mm length, 47mm width and height) allows for integration into space-constrained industrial, assembly, and manufacturing systems, where maximizing productivity and layout flexibility are essential.
Double acting operation for efficient linear motion in both directions. Aluminium body construction offers excellent resilience and weight savings. Magnetic piston feature enables contactless position detection via proximity sensors.
Stable operation at pressures up to 10 bar and temperatures as low as -20°C and up to 80°C. Standard through-hole mount and 1/8" G piston rod thread simplify installation. Conforms to ISO 21287 standard and RoHS requirements for global use and confidence in compliance.
This pneumatic cylinder is widely used in industrial automation, printing, small parts manufacturing, automotive production, and other applications where precision and reliability are required. Its advanced design supports remote and automated machinery control with optional sensors and controller integration.
Trust Festo’s ADN series for world-class pneumatic solutions in critical environments. Browse more Festo pneumatic actuators and cylinders in our Pneumatic Cylinder category for advanced automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 15mm, allowing for precise linear motion control.
The bore diameter of the Festo ADN-32-15-I-P-A is 32mm, which contributes to its robust force output.
This model can operate at a maximum pressure of 10 bar, suitable for various industrial applications.
The dimensions of this pneumatic cylinder are 65mm in length, 47mm in width, and 47mm in height.
The body of the Festo ADN-32-15-I-P-A is made from corrosion-resistant aluminium, ensuring durability in various environments.
This pneumatic cylinder operates within a temperature range of -20°C to 80°C, making it versatile for different conditions.
The Festo ADN-32-15-I-P-A includes cushioning rings that absorb end-of-stroke energy, reducing impact and noise during operation.
It uses a through-hole mount type, which simplifies the installation process in various applications.
This model conforms to ISO 21287 standards and RoHS requirements, ensuring compliance for global use.
The Festo ADN-32-15-I-P-A is a double acting cylinder, allowing for movement in both directions using compressed air.
The gross weight of this pneumatic cylinder is 310g, making it lightweight for its size.
This pneumatic cylinder is widely used in industrial automation, printing, small parts manufacturing, and automotive production.
