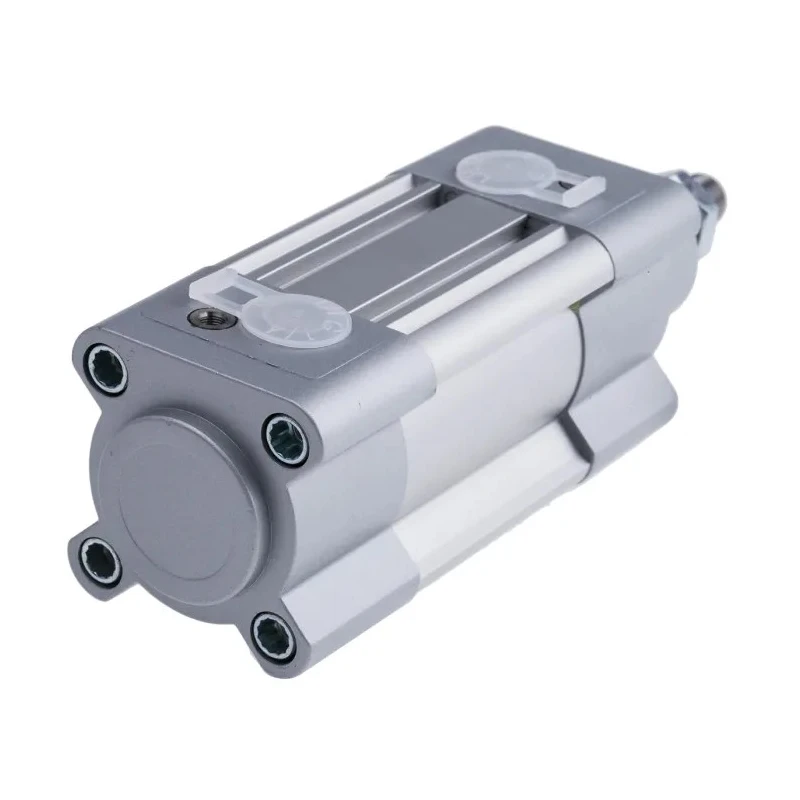

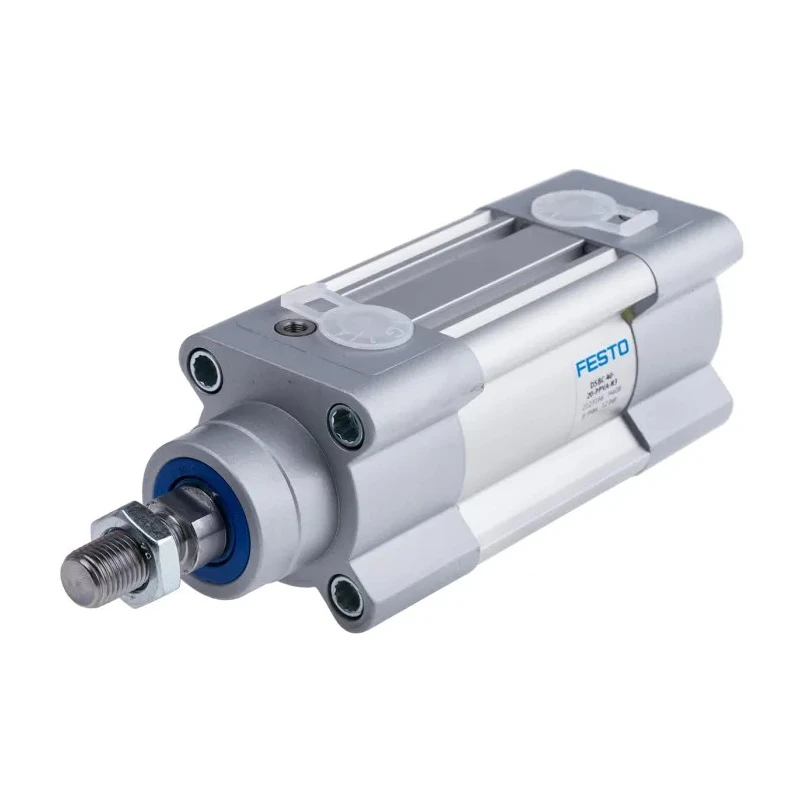

Festo Pneumatic Piston Rod Cylinder Double Acting 40mm Bore, 20mm Stroke, Aluminium DSBC-40-20-PPVA-N3

Festo DSBC-40-20-PPVA-N3 Pneumatic Piston Rod Cylinder is engineered for industrial automation and manufacturing environments requiring accurate, smooth, and robust linear actuation. This double acting pneumatic cylinder features a 40mm bore and 20mm stroke, suitable for a wide range of medium to heavy-duty applications. The high-alloy steel piston rod assures lasting performance, while the aluminium construction results in a lightweight yet sturdy body.

The pneumatic cushioning at both actuator barrel ends absorbs energy efficiently, minimizing noise and vibration during operation. The DSBC series supports dual compressed air ports, enabling controlled advancing and retracting of the piston rod as required. Built to comply with ISO 15552 standards, it offers flexible mounting configurations and easy integration into pneumatic systems.

Applications benefit from its magnetic piston rod, which provides contactless position detection capabilities via compatible proximity sensors mounted in the slots along the cylinder body. This feature enhances automation by enabling precise control and monitoring of piston movement. The air cushion design delivers smooth stops at end positions, ideal for high-speed cycles and dynamic loads in factory automation, material handling, and assembly lines.

Double acting actuator supports advancing and retracting motion. Adjustable pneumatic cushioning for reduced operational noise and increased service life. Mounting options include swivels, foot mounts, and combination brackets.

Body conforms to ISO 15552 for metric mounting dimensions and interchangeability. Maximum operating pressure of 12 bar; reliable in intense industrial settings. Temperature range from -20°C to 80°C supports diverse working conditions.

Aluminium body resists corrosion and wear, promoting long service intervals.

Industrial and commercial sectors such as manufacturing, factory automation, material handling, and machine building rely on the DSBC-40-20-PPVA-N3 for dependable linear motion solutions. The cylinder is particularly well-suited to equipment requiring frequent cycling, high force output, and precise position feedback.

Festo DSBC Pneumatic Cylinders are trusted by professionals for their robust construction, flexible configuration options, and compatibility with a wide range of pneumatic fittings and accessories. Explore the full Festo range for comprehensive automation solutions on the EnvMart platform.
