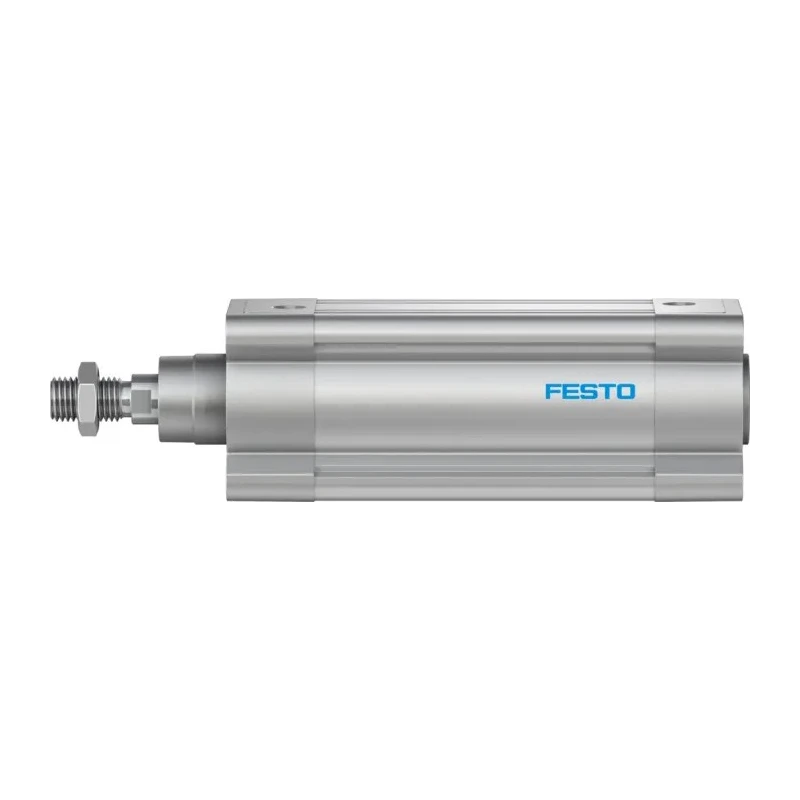

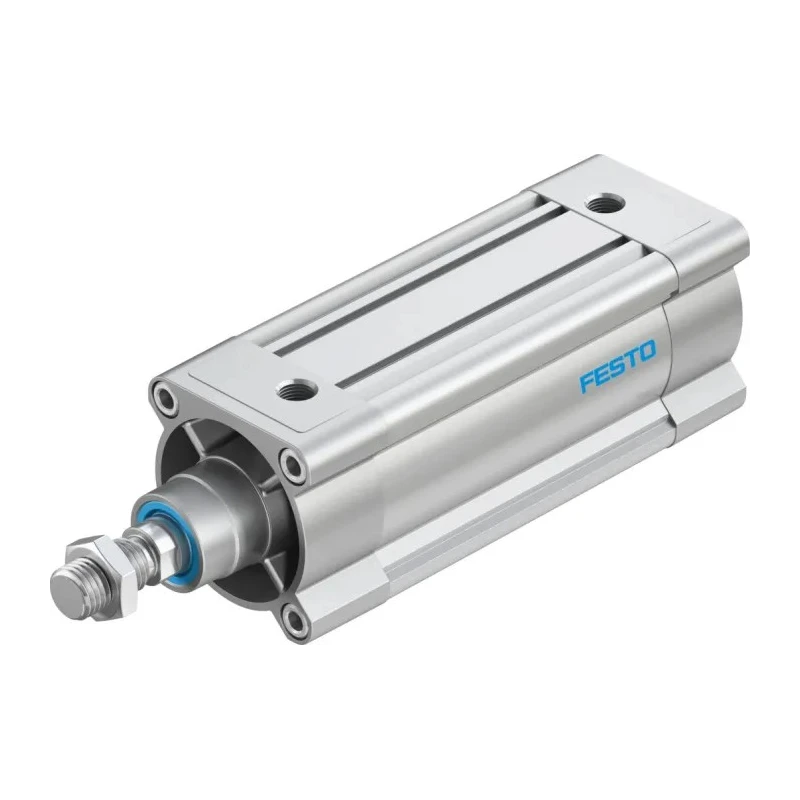

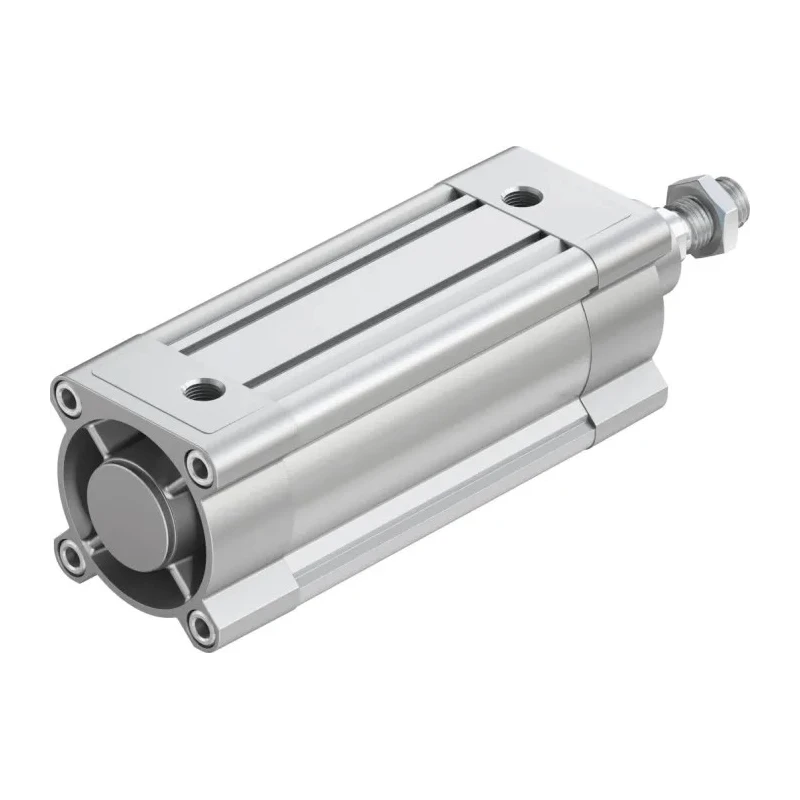

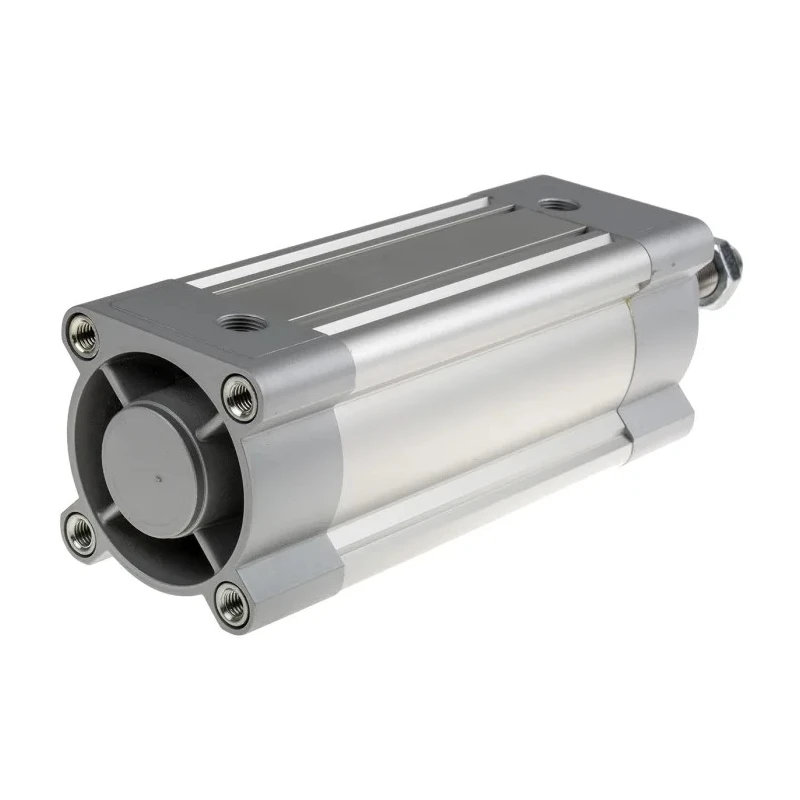

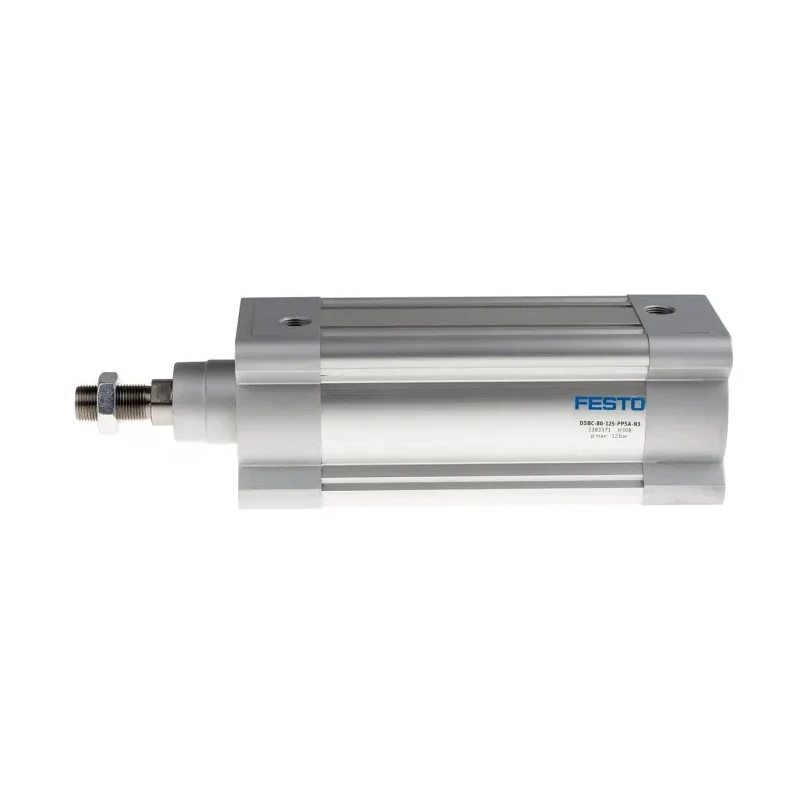

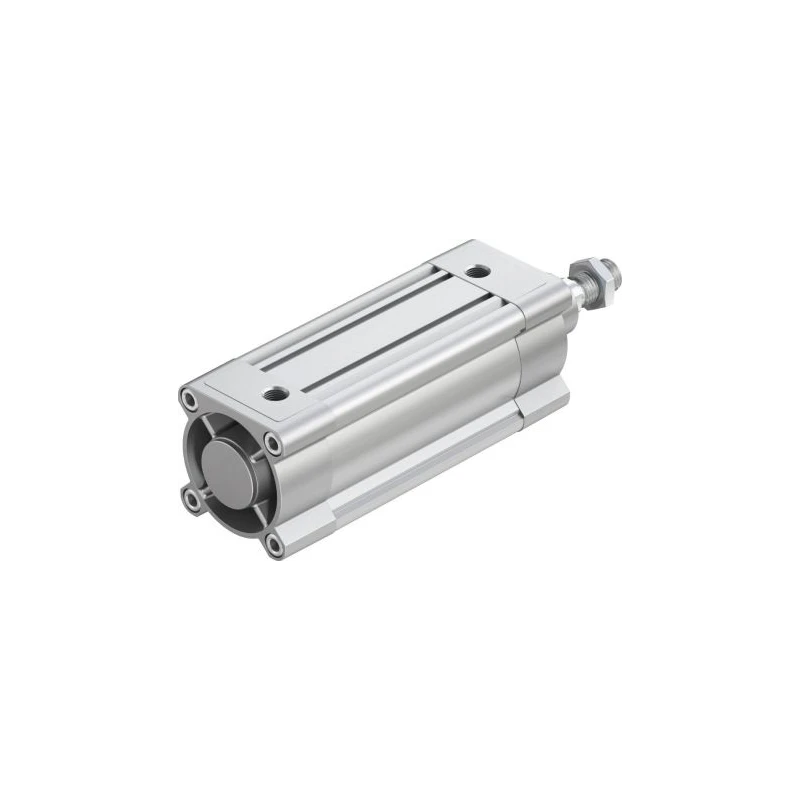

Festo Pneumatic Piston Rod Cylinder, DSBC-80-125-PPSA-N3, 80mm Bore, 125mm Stroke, Double Acting, 12 Bar, Aluminium Body

The Festo DSBC-80-125-PPSA-N3 pneumatic piston rod cylinder is engineered for linear actuation tasks that require reliability, efficiency, and industrial robustness. With its 80mm bore diameter and 125mm stroke, this double acting cylinder delivers moderate travel and substantial thrust, making it ideal for medium-duty applications in automated manufacturing and process environments.

The actuator body is constructed from corrosion-resistant aluminium, combining strength and a lightweight profile. Its single male piston rod with a 3/8 inch G thread ensures secure mechanical connections, while the female thread mounting feature supports easy integration into machine frames, clamping assemblies, and conveyor systems.

Double acting configuration for bidirectional control and precise positioning. Self-adjusting pneumatic (PPS) cushioning absorbs end-of-stroke impacts and extends the longevity of internal seals and bearings. Rated to 12 bar maximum operating pressure, providing dependable performance in high-pressure setups.

Operates efficiently across -20°C to 80°C, supporting use in cold storage, ambient, and moderately heated industrial environments. Complies with ISO 15552, ensuring compatibility with international pneumatic standards, and carries RoHS approval for environmental compliance.

The compact form factor, with both width and height at 93mm and an overall length of 342.6mm, allows for space-saving installation in tight automation cells and equipment. The gross weight of 3.81kg combines stability with manageable system integration.

This cylinder is frequently employed in pick-and-place modules, press feeding, clamping, and machine-gate actuation, as well as other applications within manufacturing, packaging, and assembly lines. The self-adjusting PPS cushioning system minimizes shock loads, decreases maintenance frequency, and ensures smooth motion during repeated cycling.

Suitable for a variety of industries, including automotive manufacturing, food and beverage processing, general industrial automation, and materials handling, the Festo DSBC-80-125-PPSA-N3 offers long service life and reduced downtime thanks to its rugged design and replaceable sealing system.

For further selection or to explore more pneumatic cylinders and Festo solutions, browse the Pneumatic Cylinder category or visit other Festo offerings on EnvMart.
