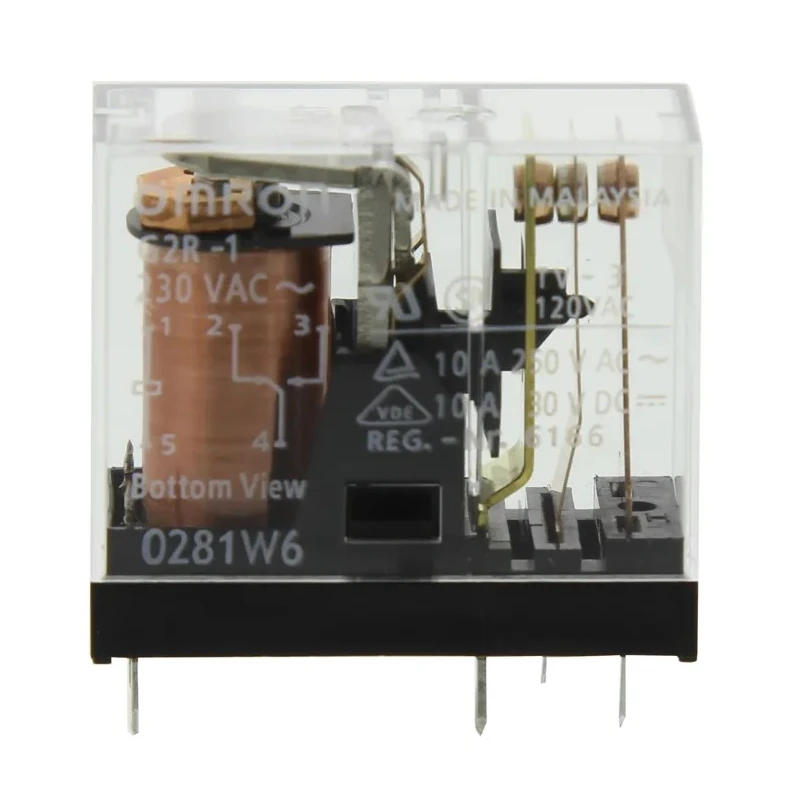

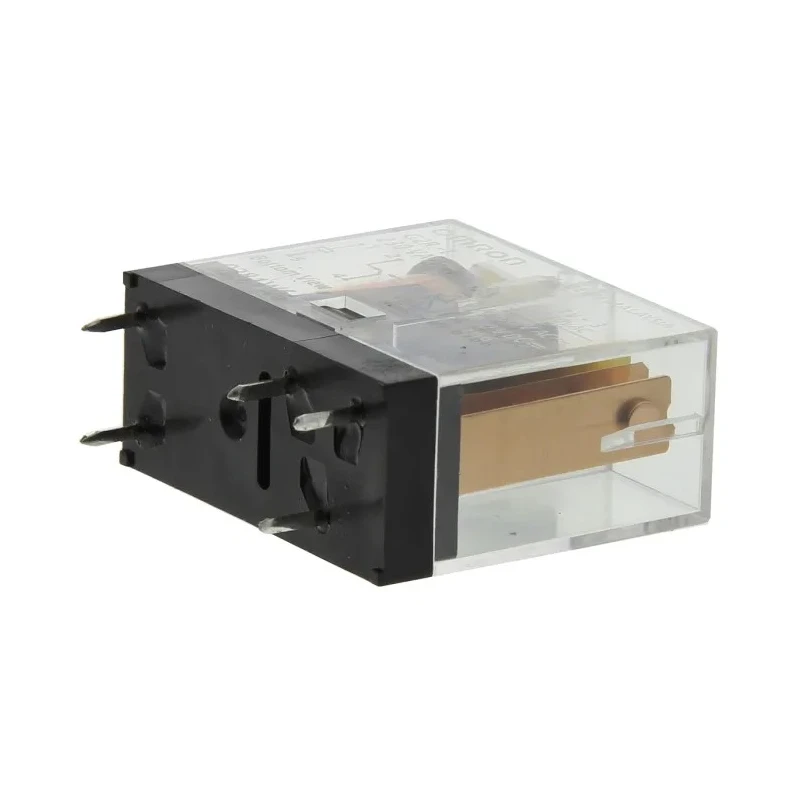

Omron PCB Power Relay, 230V AC Coil, 10A Switching Current, SPDT, G2R-1 AC230

Omron G2R-1 AC230 PCB power relay is engineered for robust performance in a variety of industrial, commercial, and automation applications. Featuring a 230V AC coil and SPDT contact configuration, it allows reliable switching for circuits requiring high versatility and durability. The relay is suitable for mounting directly onto printed circuit boards, making it an ideal choice for modern control panels and system designs.

Suitable for PCB mounting in control panels and automation systems. Operates with a 230V AC coil voltage for reliable switching. SPDT contact configuration ensures flexible operation for various load types. Switching current capacity up to 10A allows use with high-power devices.

Silver alloy contacts provide enhanced conductivity and durability. Solder terminal type for secure and stable connections. Compact dimensions: 25.5mm height, 29mm length, and 13mm width. Coil resistance of 26.9kΩ ensures energy efficiency.

Wide operating temperature range from -40°C to 70°C for harsh environments. Compliant with RoHS and other international standards.

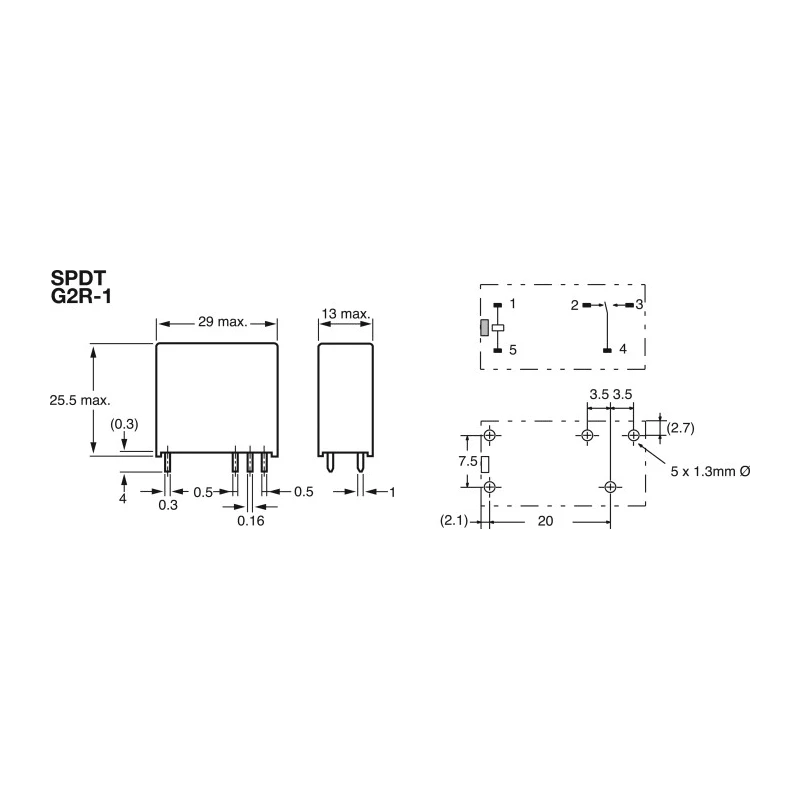

The relay's compact form factor with height of 25.5mm, length of 29mm, and width of 13mm enables integration into tightly packed equipment or control boards. Its maximum switching current of 10A means it supports larger loads such as motors, lamps, heating elements, and other high-power devices. Silver alloy contacts provide superior conductivity, reducing switching loss and increasing component longevity.

Energy efficiency is enhanced with a coil resistance of 26.9kΩ and coil power rating of 900mW, ensuring minimal energy expenditure during operation. Solder terminals offer secure mechanical and electrical connections, essential for vibration-prone environments. Operation is reliable within a broad temperature range from -40°C to 70°C, suitable for demanding industrial, laboratory, and commercial uses.

Compliance with RoHS and approvals such as UL508, CSA22.2, EN 61810-1, SEV, and SEMKO confirms Omron's commitment to environmental safety and product quality.

Applications for the Omron G2R-1 AC230 PCB relay include control systems, automation panels, instrumentation, HVAC equipment, manufacturing lines, and other environments where secure, high-current switching is necessary. Its general-purpose design also makes it practical for laboratory equipment and commercial automation.
