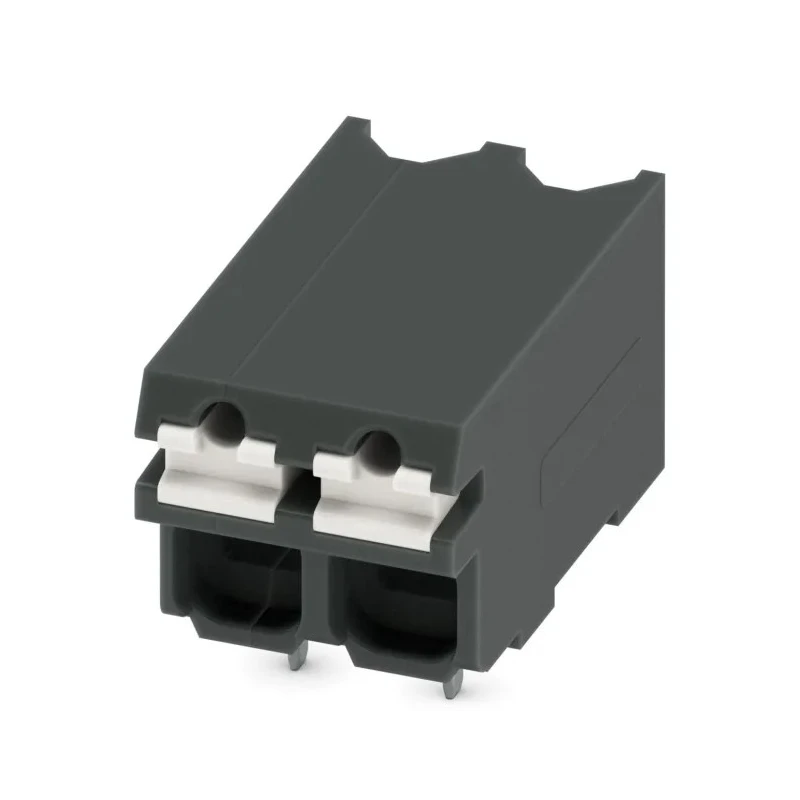

Phoenix Contact SPT-SMD 1.5/2-H-3.81 R24 PCB Terminal Block, 2 Contacts, 3.81 mm Pitch, Surface Mount, 1824637
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 7.81mm |
| Model | 1824637 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 2-H-3.81 R24 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Designed for PCB mounting with surface mount technology.
- Features 2 contacts with a 3.81 mm pitch, ideal for safety and reliability in electronic circuits.
- Spring actuation lever enables easy, tool-free connection and disconnection of solid or stranded conductors.
- Handles currents up to 13.5 A and voltages up to 320 V, suitable for demanding applications.
- Black liquid crystal polymer housing ensures rigid durability and thermal stability.
- Accommodates wire sizes from 0.2 mm² to 1.5 mm² or 24AWG to 16AWG, supporting versatile wiring needs.
- Orientation is straight for straightforward PCB integration in 1-row configurations.
- COMBICON SPT-SMD spring cage technology offers secure and reliable wire connection.
Product Description
Phoenix Contact SPT-SMD 1.5/2-H-3.81 R24 Series PCB Terminal Block with model 1824637 is an advanced connector solution for surface mounting in PCB designs. This terminal block features 2 contacts with a 3.81 mm pitch, engineered for robust current and voltage handling up to 13.5 A and 320 V respectively. Its compact design ensures efficient integration in modern electronic assemblies.
The product is constructed from high-performance liquid crystal polymer, enhancing its durability and ensuring thermal stability during soldering and operation. The spring actuation lever simplifies wire termination, making connections tool-free and reliable for both solid and stranded conductors. It also allows for easy disconnection, supporting quick maintenance cycles.
Designed for safe PCB mounting using surface mount technology. Accommodates wires from 0.2 mm² to 1.5 mm² (24AWG to 16AWG). Pitch spacing ensures compatibility with compact electronic designs. Spring cage and push-in technology offer fast, secure connection with minimal tooling.
Tape-on-reel packaging allows seamless integration in automated assembly lines, meeting IEC 60283-3 standards.
This terminal block is black in color and has a straight orientation for straightforward use on single-row boards. Its precise engineering makes it suitable for power, signal, and industrial control applications, including manufacturing equipment, laboratory electronics, and high-reliability automation systems.
As part of Phoenix Contact’s COMBICON SPT-SMD series, the terminal block is built to meet demanding industry requirements for safety, performance, and ease of installation. PCB anchoring pins and soldering terminals ensure strong mechanical and electrical connection to the circuit board.
Typical applications include industrial automation, PCB manufacturing, power supply construction, laboratory instrumentation, and commercial electronics. The product is supplied in tape-on-reel format for efficient production workflows.
Explore the complete range of Phoenix Contact PCB Terminal Blocks on EnvMart to find versatile connector solutions for diverse electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 320 V, making it suitable for demanding applications.
This terminal block can handle a maximum current of 13.5 A.
It accommodates wire sizes from 0.2 mm² to 1.5 mm², or 24 AWG to 16 AWG.
The pitch of the contacts is 3.81 mm, designed for efficient PCB integration.
The terminal block features a straight orientation, suitable for single-row configurations on PCBs.
The housing is made from liquid crystal polymer, which provides thermal stability and durability.
The wire connection method used is spring actuation, allowing for tool-free connections and disconnections.
The dimensions are 7.81 mm in length, 7.7 mm in width, and 13.6 mm in depth.
It is suitable for applications in industrial automation, PCB manufacturing, power supply construction, and laboratory instrumentation.
It is supplied in a tape-on-reel format, which facilitates automated assembly.
This model features 2 contacts, providing reliable connectivity for electronic circuits.
The country of origin for this terminal block is Germany.
