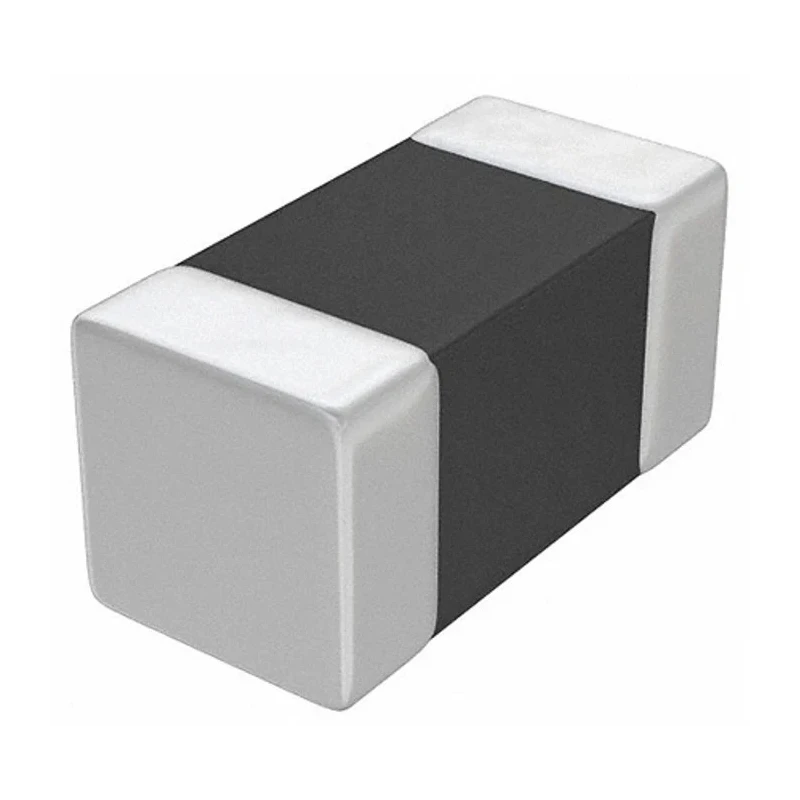

Murata 4.7 nH 1005 Unshielded Wirewound Surface Mount Inductor with Non-Magnetic Ceramic Core LQG15HN

Murata LQG15HN 4.7 nH Unshielded Wirewound Surface Mount Inductor with a Non-Magnetic Ceramic Core represents a reliable electronic component designed for high-frequency circuits. The 1005 package size with 1 mm length and 0.5 mm height and depth enables compact integration in dense PCB layouts. Its multilayer construction balances rated current and inductance tolerance efficiently for various consumer and industrial applications.

The inductance tolerance of ±0.3 nH and a minimum quality factor of 8 ensure device performance stability, while the maximum DC current rating of 300 mA and maximum DC resistance of 230 mΩ allow for moderate current applications. The inductor is unshielded, optimizing performance where magnetic interference shielding is not required, and it operates safely within -55°C to 125°C temperature range.

With a maximum self-resonant frequency of 6000 MHz, this component suits RF circuit matching, WLAN networks, mobile communication equipment resonance, and choke applications. The termination style is solder, compatible with standard surface mount technology processes. It does not comply with automotive standards and is manufactured in Japan, reflecting Murata's quality assurance.

The 1005 compact package with precise tolerances ensures versatility in modern electronic designs. Ideal for RF and high-frequency applications requiring small form factor components. Robust operation over wide temperature ranges supports industrial and consumer electronics.

Multilayer construction offers excellent balance between size and electrical characteristics. Manufactured in Japan, confirming product quality and adherence to international standards.

This inductor is a suitable choice for electronics manufacturers requiring durable, high-frequency components for compact device designs. Explore more Surface Mount Inductors for varied industrial applications at EnvMart.
