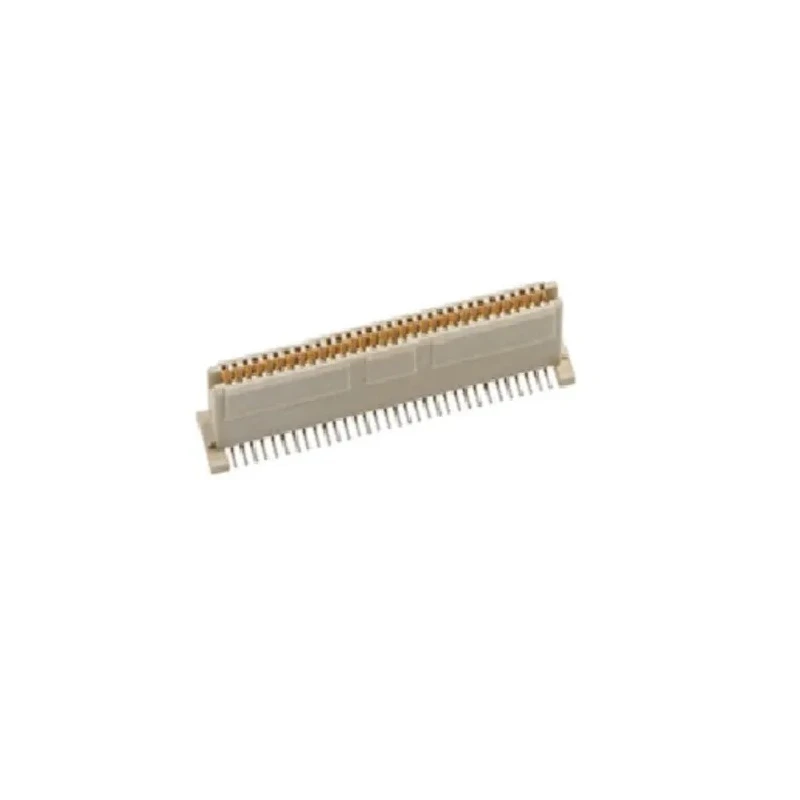

Molex 71439 Series Vertical Surface PCB Connector, 64 Contacts, 2 Row, 1 mm Pitch, Surface Mount 714393464
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | 71439 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | PCB Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | UL E29179, CSA LR19980 |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
| Stacking Height | 15mm |
| Row Pitch | 1.4mm |
Key Features
- Provides reliable connection with 64 contacts in dual row configuration.
- Features a 1 mm contact pitch, ideal for compact PCB layouts.
- High-temperature thermoplastic housing ensures safe surface mounting.
- Gold-plated phosphor bronze contacts offer excellent conductivity and corrosion resistance.
- Rated for up to 1A current and 100V voltage per contact.
- Operates over a wide temperature range from -55°C to +85°C.
- Vertical mounting orientation optimized for signal and board-to-board systems.
Product Description
Molex 714393464 is a vertical surface PCB connector from the renowned 71439 Series, specifically designed for high-density electronic applications requiring reliable signal transfer. This PCB receptacle provides a robust connection for board-to-board integration in advanced electronic systems.
It comprises 64 female contacts organized in a dual row arrangement with a 1 mm pitch, ensuring efficient use of PCB space for modern compact electronics. The connector utilizes high-temperature thermoplastic as housing material, making it suitable for surface mounting and capable of withstanding soldering and operational stresses.
Each contact is constructed from phosphor bronze and plated with gold, delivering superior conductivity and lasting durability. The 714393464 supports up to 1A current and 100V voltage per contact, complying with industrial standards for signal integrity and safety.
64 contacts in 2 rows, female gender, 1 mm pitch for minimized board footprint. Surface mount termination type allows for streamlined automated assembly. Stacking height of 15 mm fits varied PCB configurations. Works reliably between -55°C and +85°C operating temperatures.
UL and CSA certified for assured compliance and safety.
The Molex 714393464 PCB Connector is widely used in industrial manufacturing, laboratory instrumentation, electronics development, and commercial signal processing environments. Its vertical orientation and design facilitate board-to-board signal transmission in dense assemblies.
Ideal for applications in electronics manufacturing, automotive, laboratory test equipment, and advanced signal systems. Browse more Molex connectors and PCB sockets in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual row configuration with 64 female contacts, designed for efficient use of PCB space.
The contact pitch is 1 mm, which is suitable for compact PCB layouts.
Each contact is rated for a maximum voltage of 100V.
It supports up to 1A current per contact.
The housing is made from high-temperature thermoplastic, and the contacts are constructed from phosphor bronze with gold plating.
It operates effectively within a temperature range of -55°C to +85°C.
The stacking height is 15 mm, accommodating various PCB configurations.
It features a surface mount termination type, allowing for streamlined automated assembly.
Yes, it is UL E29179 and CSA LR19980 certified, ensuring compliance with industrial standards.
It is widely used in industrial manufacturing, laboratory instrumentation, electronics development, and commercial signal processing.
This unit is designed for board-to-board signal transmission, making it suitable for high-density electronic applications.
The vertical mounting orientation is optimized for signal and board-to-board systems, facilitating efficient connections in dense assemblies.
