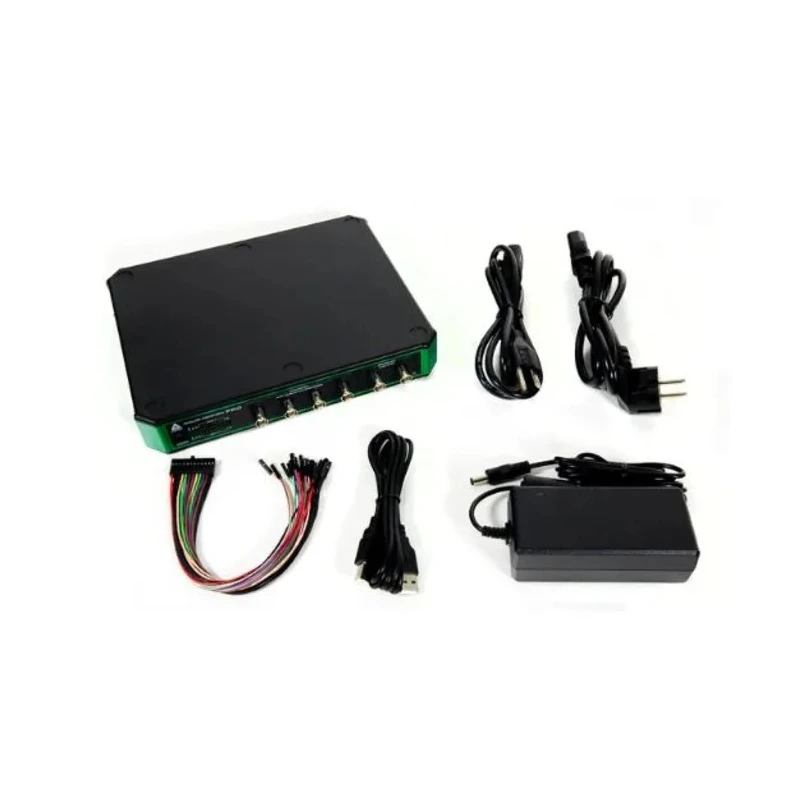

Digilent Analog Discovery Pro 3000 Series 4-Channel PC Based Oscilloscope, 55 MHz Bandwidth, 14-Bit Resolution, USB 410-394
Specifications
| Country of Origin | India |
|---|---|
| Brand | Digilent |
| Height | 38.1mm |
| Model | 410-394 |
| Width | 194mm |
| Bandwidth | 55MHz |
| Series | Analog Discovery Pro 3000 |
| Interfaces | Ethernet data streaming |
| Number Of Channels | 4 |
| Vertical Resolution | 14 bit |
| Interface Type | IIC, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Digital Channels | 16 |
| Function / Arbitrary Waveform Generator | 2-channel arbitrary waveform generator |
| Max sampling rate | 0.5GS/s analogue and 125MS/s digital |
Key Features
- Features a maximum 55 MHz bandwidth for reliable analog signal capture.
- Provides four independent analog input channels and 16 dedicated digital channels for mixed-signal analysis.
- Utilizes USB connectivity for easy PC integration and high-speed data transfer.
- Incorporates a powerful two-channel arbitrary waveform generator for signal simulation.
- Supports a maximum analog sampling rate of 0.5 GS/s and digital at 125 MS/s.
- Includes terminal-based Linux OS and Ethernet data streaming for flexible connection and automation.
- Enables advanced protocol analysis and pattern generation through Waveforms software.
- Compact design with 38.1 mm height and 194 mm width for efficient laboratory and industrial setups.
Product Description
Digilent 410-394 is a high-precision, PC Based Oscilloscope from the Analog Discovery Pro 3000 Series, designed for demanding mixed-signal and protocol analysis in both industrial and laboratory environments. With a wide 55 MHz analog bandwidth and 14-bit vertical resolution, the device delivers unrivaled accuracy for signal characterization, quality assurance, and troubleshooting of electronic systems.
This model features four independent analog input channels and 16 digital channels, making it ideal for engineers needing simultaneous analog and digital signal observation. The two-channel arbitrary waveform generator and a suite of 12 integrated instruments, accessible via the free Waveforms software, equip users with capabilities such as logic analysis, pattern generation, protocol analysis, and digital I/O - all in a compact format that maximizes workspace efficiency.
Bandwidth: 55 MHz for precise analog measurements. 4 analog channels and 16 digital channels for advanced mixed-signal applications. PC-based operation with USB interface for convenience and portability. 14-bit vertical resolution enhances measurement detail and accuracy.
Two-channel arbitrary waveform generator to simulate real-world test signals. Analog sampling rate up to 0.5 GS/s; digital sampling rate up to 125 MS/s. Support for IIC, SPI, UART protocols and USB and Ethernet data streaming.
Compact 38.1 mm height, 194 mm width - fits easily on crowded benches. Terminal-based Linux OS enables customization and automated test workflows.
The device is suitable for use in electronics R&D, industrial automation, university teaching labs, and manufacturing quality control, as well as for service and maintenance of advanced electronic systems.
Package contents typically include the oscilloscope module and standard USB cable. For full functionality, the free Waveforms software is required and can be downloaded from Digilent's website.
Choose Digilent’s Analog Discovery Pro 3000 Series for high-resolution, mixed-signal test in next-gen projects and browse the EnvMart Oscilloscope category for more benchtop and portable options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum bandwidth of this oscilloscope is 55 MHz, allowing for reliable analog signal capture.
This model features four independent analog input channels and 16 dedicated digital channels for mixed-signal analysis.
The vertical resolution of this oscilloscope is 14 bits, enhancing measurement detail and accuracy.
The maximum analog sampling rate is 0.5 GS/s, while the maximum digital sampling rate is 125 MS/s.
It supports IIC, SPI, UART, USB interfaces, and also features Ethernet data streaming for flexible connection and automation.
The oscilloscope has a compact design with a height of 38.1 mm and a width of 194 mm, making it suitable for crowded laboratory setups.
It includes a two-channel arbitrary waveform generator for signal simulation, allowing users to create real-world test signals.
The free Waveforms software is required for full functionality and can be downloaded from Digilent's website.
This oscilloscope is suitable for electronics R&D, industrial automation, university teaching labs, and manufacturing quality control.
The country of origin for this product is India.
The 16 digital channels are used for advanced mixed-signal applications, enabling simultaneous observation of analog and digital signals.
Yes, it enables advanced protocol analysis through the integrated Waveforms software, supporting various communication protocols.
