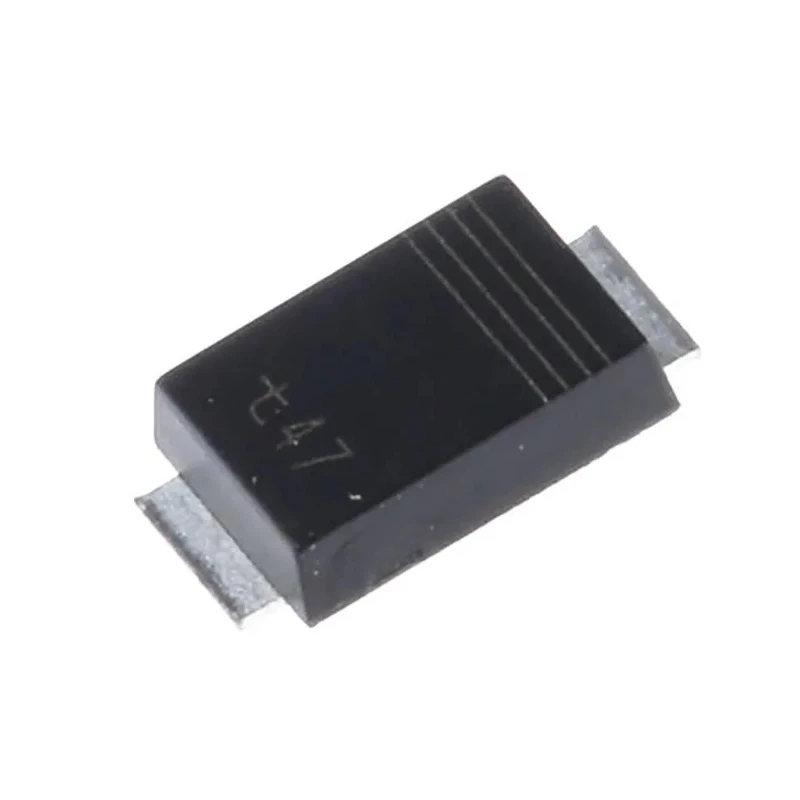

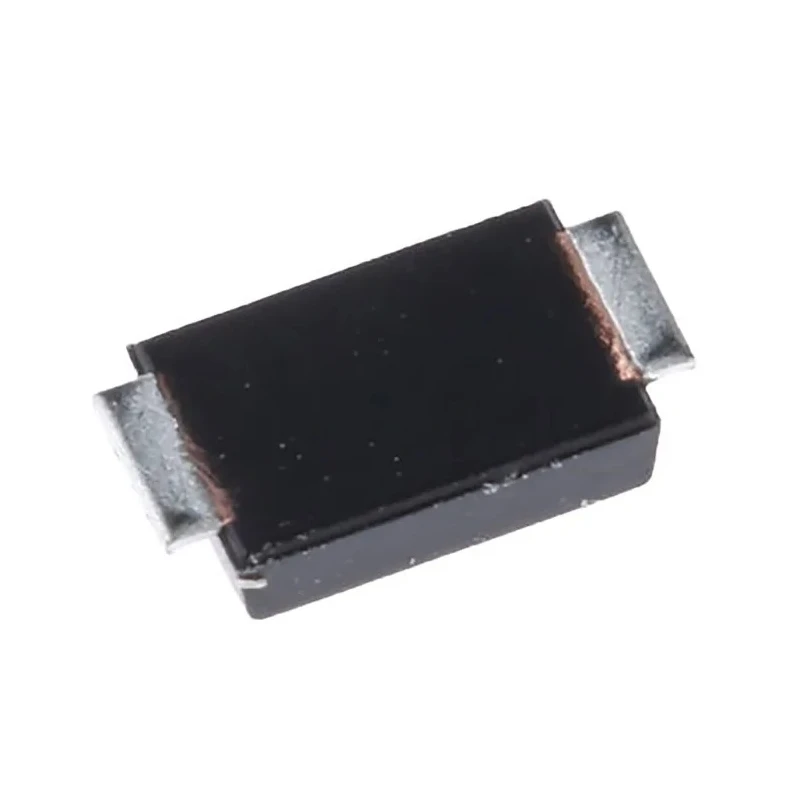

ROHM Schottky Diode, 200 V, 500 mA, Surface Mount, TUMD2M Package, 2-Pin RF05VAM2STR
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | ROHM |
| Height | 0.5mm |
| Length | 2mm |
| Model | RF05VAM2STR |
| Width | 1.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TUMD2M |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 6A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Offers fast recovery performance suitable for high-frequency switching applications.
- Features a maximum continuous forward current of 500 mA for reliable rectification.
- Peak reverse repetitive voltage rated at 200 V for enhanced circuit protection.
- Compact TUMD2M package optimizes board space in surface mount designs.
- Low forward voltage of 980 mV reduces power loss and increases efficiency.
- 2-pin configuration, ideal for single-diode rectifier circuits.
- Peak reverse current limited to 10 μA for minimized leakage.
- Peak non-repetitive forward surge current capability of 6 A for robustness under transient loads.
Product Description
ROHM RF05VAM2STR is a high-performance Schottky diode engineered for surface mount applications where fast recovery and efficient rectification are required. Designed with a 2-pin TUMD2M package, this diode is tailored for integration into circuit boards with space constraints, allowing seamless placement in automated assembly processes.
With a peak reverse repetitive voltage of 200 V and a maximum continuous forward current of 500 mA, the RF05VAM2STR delivers reliable rectification and circuit protection in power management, switching, and signal processing applications. Its low forward voltage drop of 980 mV ensures minimized power dissipation, supporting optimal efficiency in both commercial and industrial electronics.
The device provides a peak non-repetitive forward surge current of 6 A, allowing it to withstand transient events without compromising performance. Fast recovery characteristics, with a reverse recovery time of only 25 ns, make it ideal for high-frequency switching environments and applications where rapid response is critical.
Its single diode configuration and 2-pin layout make this component well-suited for use in compact rectifier circuits, voltage clamping, and protection networks. Peak reverse leakage is held to 10 μA, preserving signal integrity and preventing unwanted current flow.
Physical dimensions include a length of 2 mm, width of 1.4 mm, and height of 0.5 mm, aligned with the industry-standard TUMD2M surface-mount footprint for ease of PCB layout. The RF05VAM2STR is specified to operate reliably up to 150°C, enabling its application in demanding manufacturing, industrial automation, and laboratory electronics.
ROHM manufactures this diode in Thailand, ensuring conformity with international quality standards. It is particularly suitable for industrial, laboratory, and commercial electronic designs needing small, efficient, and reliable rectification devices.
Explore EnvMart for more advanced ROHM Schottky Diodes, rectifiers, and semiconductor solutions suited to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 500 mA, ensuring reliable rectification in various applications.
This diode has a peak reverse repetitive voltage rating of 200 V, providing enhanced circuit protection.
The TUMD2M package has dimensions of 2 mm in length, 1.4 mm in width, and 0.5 mm in height, making it suitable for compact circuit designs.
The peak non-repetitive forward surge current capability of this diode is 6 A, allowing it to withstand transient loads effectively.
It is specified to operate reliably up to a maximum temperature of 150°C, suitable for demanding applications.
The forward voltage drop for this model is 980 mV, which helps to reduce power loss and increase efficiency.
The reverse recovery time is 25 ns, making it suitable for high-frequency switching applications.
This diode features a 2-pin configuration, ideal for single-diode rectifier circuits.
The peak reverse current is limited to 10 μA, which minimizes leakage and preserves signal integrity.
This Schottky diode is manufactured in Thailand, ensuring conformity with international quality standards.
This model is a Schottky diode, designed for efficient rectification in various electronic applications.
It is suitable for power management, switching, and signal processing applications, particularly where fast recovery is essential.
