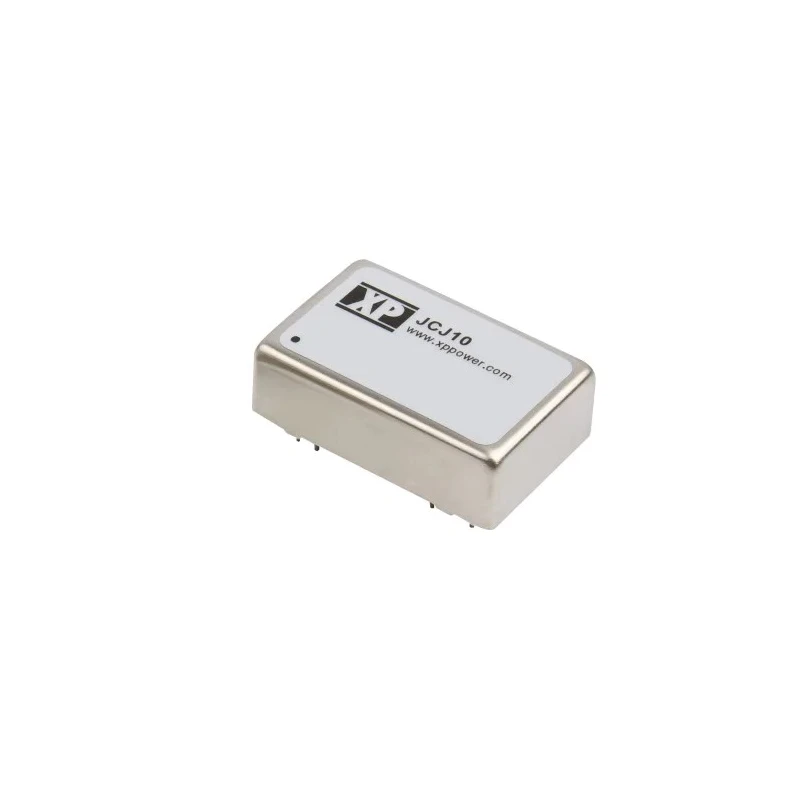

XP Power DC/DC Converter 5V DC, 2A, 9 - 18V Input, 10W, Through Hole, DIP, -40°C to 100°C JCJ1012S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCJ DC/DC Converter, 5V dc/ 2 A, 18V dc I |
| Brand | XP Power |
| Efficiency | 86% |
| Length | 31.75mm |
| Model | JCJ1012S05 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCJ |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 900000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Delivers reliable DC-DC conversion for industrial and electronics applications.
- Offers 5V DC output with maximum 2A output current.
- Supports wide input voltage range from 9V to 18V DC.
- Maximum output power rating of 10W.
- Through hole mounting with DIP package type for easy board integration.
- High isolation voltage of 1.5kV DC ensures electrical safety.
- Operating temperature from -40°C to 100°C for robust performance.
- Efficiency rated at 86%, optimizing energy utilization.
Product Description
The XP Power JCJ1012S05 is a high-performance isolated DC-DC converter engineered for demanding industrial and electronic systems. Featuring a 5V DC output and a maximum output current of 2A, it is designed to operate with an input voltage range of 9 - 18V DC and delivers up to 10W of power. The device utilizes a through hole mounting style with a DIP package and is well-suited for board-level integration.
This converter provides robust isolation with a voltage of 1.5kV DC, ensuring the safety of sensitive electronic subsystems. Its wide operating temperature range, from -40°C to 100°C, allows for use in both extreme industrial and laboratory environments. With an efficiency rating of 86%, the JCJ1012S05 optimizes energy conversion and minimizes waste, supporting sustainable power applications.
Offering continuous short circuit protection, this unit safeguards connected components and maintains reliability during fault conditions. The design follows an industry-standard DIP-24 footprint and features a 2:1 input voltage ratio, accommodating diverse input scenarios. The converter's MTBF of 900000 hours underscores its long-term dependability for commercial deployment.
Its comprehensive technical specifications include single output (5V DC), 8 pins, a DIP package for versatile mounting, and compatibility with board mount power supply architectures. The JCJ1012S05 is widely used in industrial automation, instrumentation, communication systems, embedded control, and any application requiring secure, isolated DC power conversion.
Board mounting and through hole package type simplify integration into PCBs, making the converter suitable for both new designs and upgrades of existing systems. With continuous short circuit protection, designers can count on consistent performance and device safety.
Delivers reliable DC-DC conversion for industrial and electronics applications. Offers 5V DC output with maximum 2A output current. Supports wide input voltage range from 9V to 18V DC. Maximum output power rating of 10W.
Through hole mounting with DIP package type for easy board integration. High isolation voltage of 1.5kV DC ensures electrical safety. Operating temperature from -40°C to 100°C for robust performance. Efficiency rated at 86%, optimizing energy utilization.
Continuous short circuit protection for reliable operation. Suitable for board mount and industrial designs requiring isolated power.
Applications include industrial controls, laboratory instrumentation, PLCs, telecommunications equipment, and embedded systems. Explore more DC-DC converters and supply solutions from XP Power in the DC-DC Converter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter provides a 5V DC output with a maximum output current of 2A.
It supports a wide input voltage range from 9V to 18V DC.
The maximum output power rating is 10W.
This model utilizes a through hole mounting style with a DIP package type.
The isolation voltage is rated at 1.5kV DC, ensuring electrical safety.
It has an efficiency rating of 86%, optimizing energy utilization.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
The operating temperature range is from -40°C to 100°C.
This unit has a single output.
The mean time between failures (MTBF) is rated at 900,000 hours.
It is suitable for applications including industrial automation, instrumentation, communication systems, and embedded control.
The JCJ1012S05 features 8 pins.
