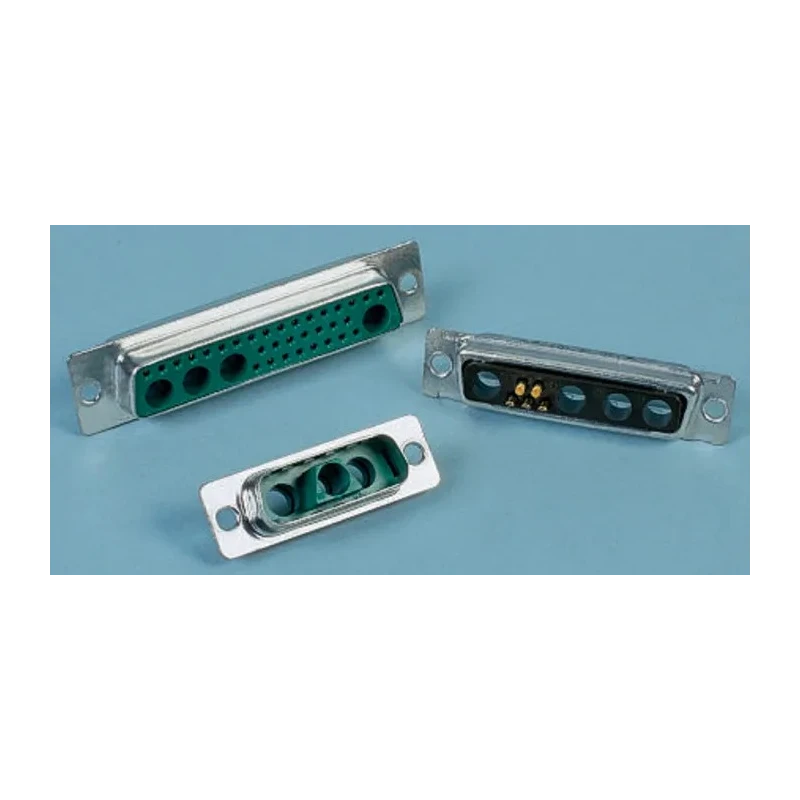

Amphenol Communications Solutions DW 36 Way Straight Panel Mount D-Sub Connector Male DD36W4PA00LF

Amphenol Communications Solutions DD36W4PA00LF is a 36 Way Straight Panel Mount D-Sub Connector Male designed to provide combined signal and power connectivity in industrial, telecommunications, and commercial settings. Featuring a robust steel housing and gold over nickel contact plating, this connector ensures durability and reliable performance under challenging conditions. Rated for 7.5A current and 300V voltage, it supports secure transmission of mixed contacts within complex systems.

The connector supports solder termination ensuring stable and secure connections with cables or PCBs. Its operating temperature range from -55°C to 125°C makes it suitable for applications exposed to wide temperature variations. The DW series shell and contact configuration provide a versatile solution for mixed power and signal requirements, optimizing performance in industrial automation, telecom equipment, and computing interfaces.

The 36 contacts include male gender contacts arranged in a straight orientation for panel mount installation, facilitating easy integration into control panels and electronic cabinets. Though no specific industry certifications are stated, the product is designed to meet stringent industrial quality and reliability expectations, ideal for manufacturing, telecommunications, and industrial automation sectors.

Features 36 contacts for mixed power and signal transmission. Supports current rating of 7.5A and voltage rating up to 300V. Steel housing ensures mechanical strength and corrosion resistance. Gold over nickel plated contacts provide excellent conductivity and durability.

Compatible with panel mount applications and straight orientation layout. Wide operating temperature spans from -55°C minimum to 125°C maximum. Solder termination type for secure and permanent cable attachments. Male connector gender suitable for plug interface requirements.

Versatile usage across industrial, telecom, and computing applications. Part of DW series with mixed contact configurations for power and signal.

This connector is an essential component for systems requiring reliable and compact signal and power combining solutions. It is suitable for integration within industrial machinery, communication equipment, and complex electronic assemblies. For additional design support, 3D models and technical documents are available, facilitating seamless product implementation and system integration. Explore further industrial connector options within the EnvMart Electronics & Electricals category for comprehensive connectivity solutions.
