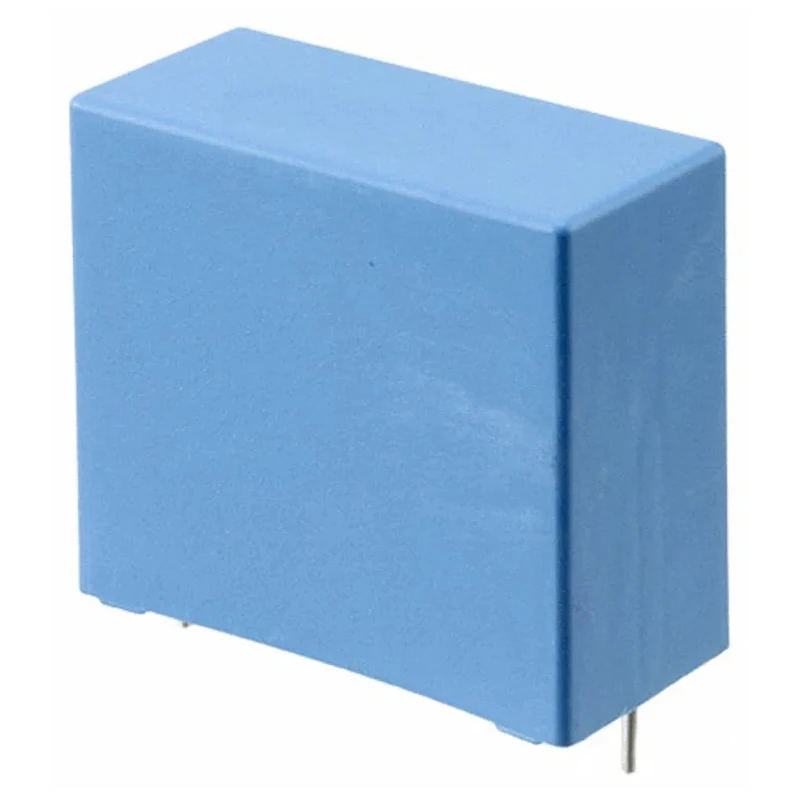

KEMET Polypropylene Capacitor Through Hole Radial 330 pF ±5% 400 V dc 180 V ac PHE450

KEMET PHE450KK3330JR17 is a high-quality polypropylene film capacitor intended for through hole mounting applications. This double metallized capacitor provides a capacitance of 330 pF with a tolerance of ±5%, rated for 400 V dc and 180 V ac, making it suitable for a wide range of electronic uses.

It is encapsulated in a self-extinguishing resin compliant with UL 94 V-0 standards, ensuring enhanced safety and durability. The component is designed for pulse and snubber circuits and is frequently used in switch mode power supplies and television deflection circuits, where high current stress is typical.

The capacitor's radial terminal type and 7.5 mm lead pitch facilitate easy through hole PCB mounting. It operates reliably over a temperature range from -55°C up to 105°C, meeting demanding industrial and commercial operating environments.

Double metallized polypropylene film construction for high pulse capability. Capacitance of 330 pF with ±5% tolerance for precision filtering and timing applications. Rated DC voltage up to 400 V dc and AC voltage up to 180 V ac.

Encapsulated with UL 94 V-0 compliant self-extinguishing resin. Lead pitch of 7.5 mm and lead length of 17 mm with 0.6 mm diameter radial leads. Minimum operating temperature -55°C and maximum operating temperature 105°C.

Operational dissipation factor of 0.0003% ensures low dielectric losses. Packaged in tape & reel format optimized for automated assembly lines.

This capacitor is an ideal choice for industrial electronics, consumer electronics, power supplies, and other applications requiring reliable film capacitors with stable capacitance and high voltage ratings.

Explore our broad range of Film Capacitors to find matching components and ensure optimal performance in your designs at EnvMart.
