Microchip 1 Voltage Supervisor 3-Pin SOT-23 MCP120T-300I/TT 2.92V Monitored Voltage, Open Drain, Active Low Output

Free Delivery in India | Lowest Global Shipping Charges

Microchip 1 Voltage Supervisor 3-Pin SOT-23 MCP120T-300I/TT 2.92V Monitored Voltage, Open Drain, Active Low Output

Name: Microchip 1 Voltage Supervisor 3-Pin SOT-23 MCP120T-300I/TT 2.92V Monitored Voltage, Open Drain, Active Low Output
Brand: Microchip
SKU: 204986
Price: 0.66 USD
Availability: InStock



Category Voltage Supervisor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	950μm
Length	2.9mm
Model	MCP120T-300I/TT
Width	1.3mm
Mount Type	Surface
Series	MCP120
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1V
Number of Supervisors	1
Output Driver	Open Drain, Active Low
Monitored Voltage	2.92V
Reset Active Time	700ms
SUPERVISOR OPEN DRAIN ACTIVE LOWBrand	Microchip
Microchip MCP120T-300I/TT, Processor Supervisor 3-Pin, SOT-23Brand	Microchip

Key Features

Monitors supply voltage with a threshold of 2.92 volts for reliable system resets.
Features an open drain, active low output driver for easy interfacing.
Compact surface mount SOT-23 package with only 3 pins for space-saving designs.
Operates within a supply voltage range of 1 to 5.5 volts.
Wide operating temperature range from -40°C to 85°C suitable for various environments.
Reset active time of 700 milliseconds ensures stable system reset timing.
Low height profile of 950 micrometers, length 2.9 mm, and width 1.3 mm for compact PCB layout.
Designed for precise and reliable microcontroller supervisory and reset circuit applications.

Product Description

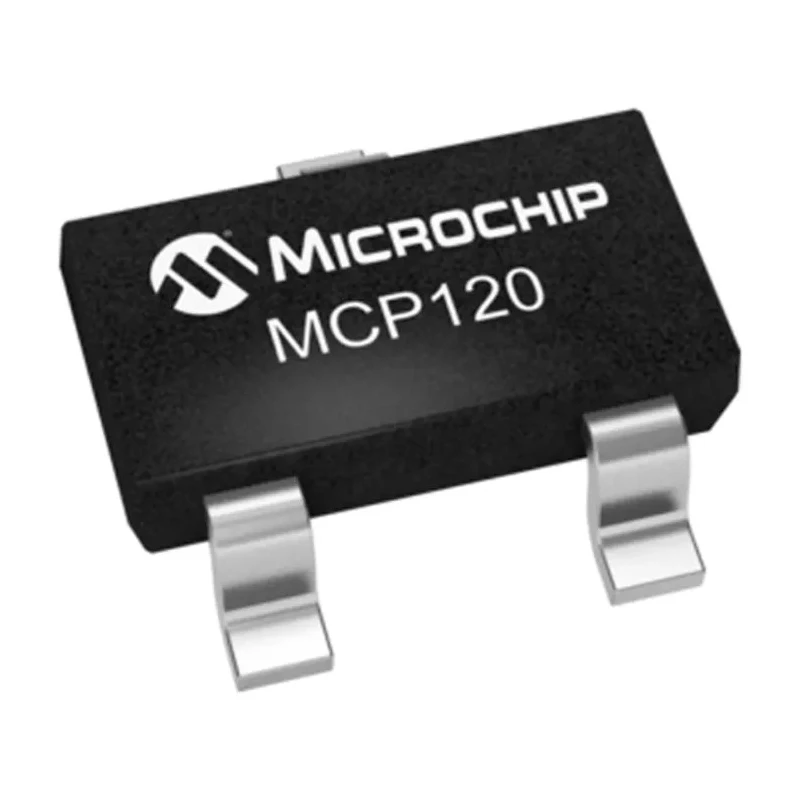

Microchip MCP120T-300I/TT is a 1 Voltage Supervisor packaged in a compact 3-Pin SOT-23 surface mount device. It monitors the supply voltage with a threshold voltage of 2.92 V and provides an open drain, active low output driver signal used to initiate system resets during under-voltage conditions.

This device operates efficiently over a wide voltage range from 1 V minimum to 5.5 V maximum supply voltage and can reliably function within industrial temperature ranges of -40°C to 85°C. The reset active time is 700 ms, ensuring systems have sufficient time to reset safely.

Its small footprint of 2.9 mm length, 1.3 mm width, and 950 μm height makes it ideal for space-constrained PCB layouts. The MCP120T-300I/TT is designed to safeguard microcontrollers and digital systems against unpredictable power failures by supervising power supply voltage.

This product, while lacking automotive certification, suits a wide range of industrial, electronics manufacturing, and consumer circuit board applications requiring voltage supervision and reset functions.

Monitored supply voltage of 2.92 V typical ensures stable operation. Open drain active low output facilitates easy integration with microcontrollers. Surface mount SOT-23 package optimizes circuit compactness. Wide operating temperature range expands application possibilities.

Reset timing of 700 ms supports varied system requirements. Low profile dimensions reinforce minimalist design approaches. Non-automotive but suitable for standard industrial electronics. Protects from undervoltage faults enhancing system reliability.

Ensures power fail detection and consistent microcontroller reset.

Microchip's MCP120 series combines supervisory and reset functions into a reliable solution for embedded electronics requiring simple, cost-effective voltage monitoring. For advanced PCB design, utilize associated 3D models and schematics to integrate the MCP120T-300I/TT effectively.

Explore more Voltage Supervisor ICs at EnvMart and find compatible solutions with trusted brand quality and comprehensive technical specs.
