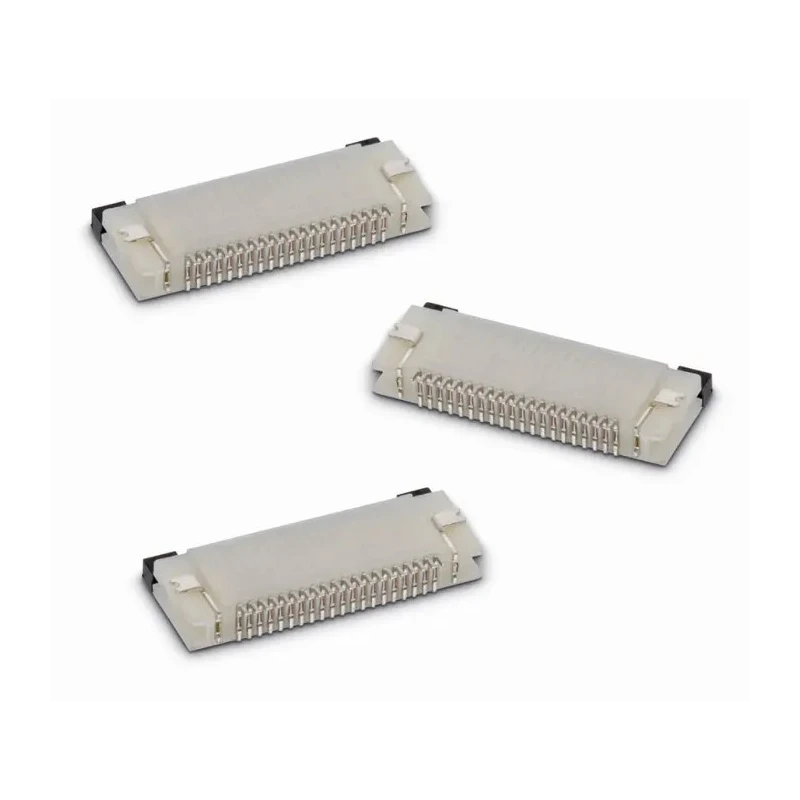

Wurth Elektronik WR-FPC 0.5 mm Pitch 20 Way Female FPC Connector, ZIF Bottom Contact Horizontal 687120149022

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-FPC 0.5 mm Pitch 20 Way Female FPC Connector, ZIF Bottom Contact Horizontal 687120149022

Name: Wurth Elektronik WR-FPC 0.5 mm Pitch 20 Way Female FPC Connector, ZIF Bottom Contact Horizontal 687120149022
Brand: Wurth Elektronik
SKU: 88296
Price: 1.47 USD
Availability: InStock



Category PCB Connector Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	50, 50V ac
Brand	Wurth Elektronik
Orientation	Horizontal
Current	500mA
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Bronze
Series	WR-FPC
Termination Type	ZIF Bottom Contact
Maximum Operating Temperature	105°C
Sub Type	FPC
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin over Nickel
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Bottom

Key Features

Features a 20-way female FPC connection using ZIF technology for secure, reliable signal transmission.
0.5 mm pitch ensures compatibility with modern miniaturised PCB layouts.
Bottom contact design with hinged flip-lock actuator for robust cable insertion and retention.
Surface mount type enables efficient automated installation during PCB assembly.
Supports up to 500 mA current and 50 V AC operation, suitable for display and keyboard interfacing.
Tin over nickel contact plating gives corrosion resistance and stable conductivity.
Polyamide housing material offers durability for repeated cycles and tight fit.
Operating temperature range from -40°C to 105°C allows for use in a variety of electronic environments.

Product Description

Wurth Elektronik 687120149022 is a WR-FPC series 0.5 mm pitch 20-way female FPC (Flexible Printed Circuit) connector designed for secure and space-efficient wire-to-board connections in compact electronics. It features ZIF (Zero Insertion Force) technology, allowing easy cable insertion and removal, combined with a robust hinged flip-lock actuator that firmly secures the cable once inserted.

The connector is built for horizontal mounting and a surface-mount configuration, making it suitable for automated PCB assembly processes. Its bottom contact position helps achieve high-density layouts while saving board space, ideal for applications where a compact profile is critical. The tin over nickel plating and phosphor bronze contact material deliver excellent electrical reliability, corrosion resistance and stable signal transfer.

This model supports up to 500 mA current and 50 V AC voltage, covering a range of display, keyboard, and low-power electronic interfaces. The polyamide housing provides strength and longevity for repeated insertion/removal cycles and offers excellent mechanical stability. Its locking mechanism ensures secure retention, minimizing accidental disconnects in demanding environments.

The WR-FPC connector operates from -40°C up to 105°C, suitable for a broad range of consumer, industrial, and embedded electronics use cases. Common applications include flat panel displays, small keyboards, handheld devices, and other miniaturized systems requiring reliable and high-density signal transmission. The 0.5 mm pitch aligns with contemporary compact PCB layouts and standards.

With single row and bottom contact design, this FPC connector simplifies assembly and enhances board accessibility. The ZIF insertion force and flip-lock actuator improve installation efficiency, reducing stress on cables and contact terminals.

Engineers can rely on the Wurth Elektronik WR-FPC 687120149022 for secure connections, durability, and compatibility with a wide variety of high-density circuit designs. Browse EnvMart's Electronics & Electricals categories for related FPC connectors and wire housings from leading brands.

Explore more products in our PCB Connector category.
