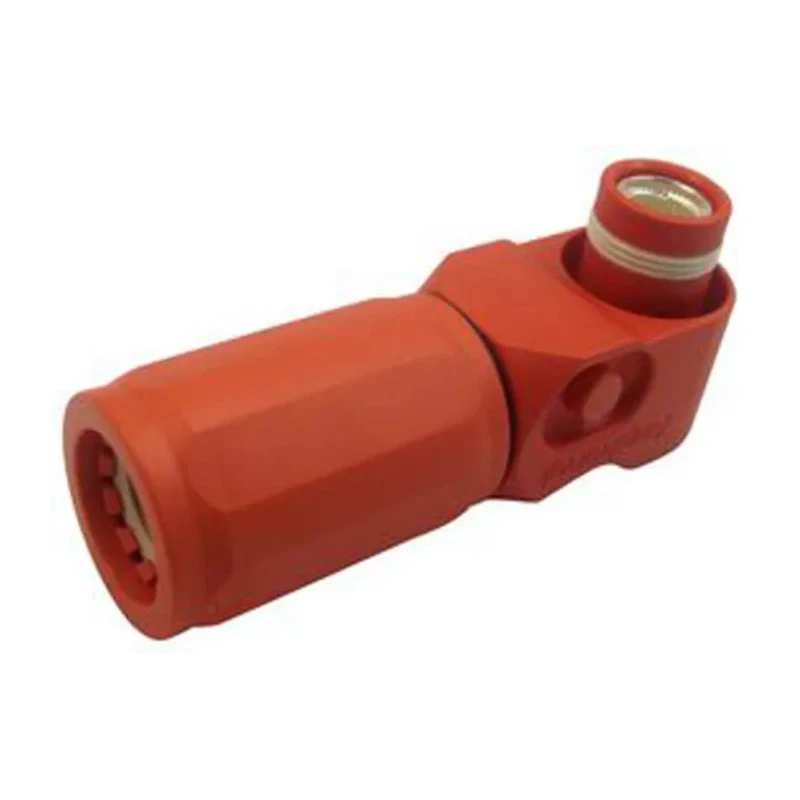

Amphenol Industrial SURLOK PLUS RADSOK EV Male Connector 200A, 1000V, Crimp, 50mm² SLPPC50BSO0 / C10-730190-0500
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 200A |
| Height | 88.5mm |
| Model | SLPPC50BSO0 / C10-730190-0500 |
| Depth | 40.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30.3mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Flammability Rating | UL 94-V0 |
| Better World Claim | Renewable Energy Solution |
Key Features
- Rated for up to 200A output and 1000V operating voltage.
- Crimp termination compatible with 50mm² wire for secure and reliable connection.
- Robust copper alloy contacts provide superior conductivity and mechanical strength.
- Field-installable plug is designed for fast, press-to-release mating and quick lock.
- Environmentally sealed housing achieves IP67 ingress protection.
- UL 94-V0 thermoplastic housing ensures flame retardancy and durability.
- Right angle orientation simplifies cable routing in compact spaces.
- Keyed design prevents mismating, offering touch proof safety.
Product Description
Amphenol Industrial SLPPC50BSO0 / C10-730190-0500 SURLOK PLUS RADSOK EV male connector is engineered for high power electric vehicle and industrial connections. This robust plug is part of the SURLOK PLUS series, renowned for its quick lock, press-to-release mechanism and R4 RADSOK technology, which maximizes conductivity and tensile strength for critical power transfer.
With a 10.3mm pin and termination to 50mm² wire via crimp method, it delivers up to 200A and supports 1000V operating voltage. The connector features a right angle orientation, touch proof safety, and keyed mating to prevent mismatching, as well as an environmentally sealed housing certified to IP67 for use in harsh environments.
Current rating of 200A and voltage rating of 1000V for high-demand EV, rail mass transit, battery management systems, and renewable energy storage applications. Copper alloy contacts enable high conductivity and reliable long-term performance.
UL 94-V0 thermoplastic housing for flame retardancy and rugged durability. Operating temperature range from -40°C up to 125°C for broad industrial deployment. One-row, one-contact design with a single 10.3mm pin, ideal for cable-mounted systems.
Colour-coded in orange for visibility and renewable energy identification; IP67 protection for outdoor install. Keyed to enable touch proof and spring locking for secure, fast mating.
The SurLok Plus series connects rail mass transit, medical equipment, battery management systems, heavy machinery, and process control installations. Right angle configuration and 88.5mm height by 40.5mm depth by 30.3mm width allow for flexible mounting.
The plug rotates 360° to facilitate convenient cable management. The female contact within the male housing ensures compatibility with SurLok 1-position receptacle. Copper alloy contacts maintain performance, and thermoplastic housing withstands rigorous use.
UL 94-V0 flammability rating and IP67 seal enable operation in demanding environments. Applications include electric vehicles, energy storage, industrial automation, and process control. Designed for professional installation in industrial, commercial, and transport sectors.
Amphenol Industrial connectors are trusted for EV, rail, battery management, and renewable systems. Explore more in EV Connector category and leading edge products from Amphenol Industrial at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 200A and an operating voltage of 1000V.
It is compatible with 50mm² wire, utilizing a crimp termination method for secure connections.
The housing is made from UL 94-V0 thermoplastic, which provides flame retardancy and durability.
This connector has an IP67 rating, ensuring it is environmentally sealed for protection against dust and water ingress.
It operates within a temperature range of -40°C to 125°C, suitable for various industrial applications.
The right angle orientation simplifies cable routing in compact spaces, making installation more efficient.
It is classified as a RADSOK connector, designed for high power electric vehicle and industrial connections.
It features a keyed design to prevent mismating and offers touch proof safety for secure connections.
The pin diameter is 10.3mm, designed for a single contact connection.
This male connector is designed for use with the SurLok 1-position receptacle.
It is suitable for applications in electric vehicles, energy storage, industrial automation, and process control.
The dimensions of this connector are 88.5mm in height, 40.5mm in depth, and 30.3mm in width.
