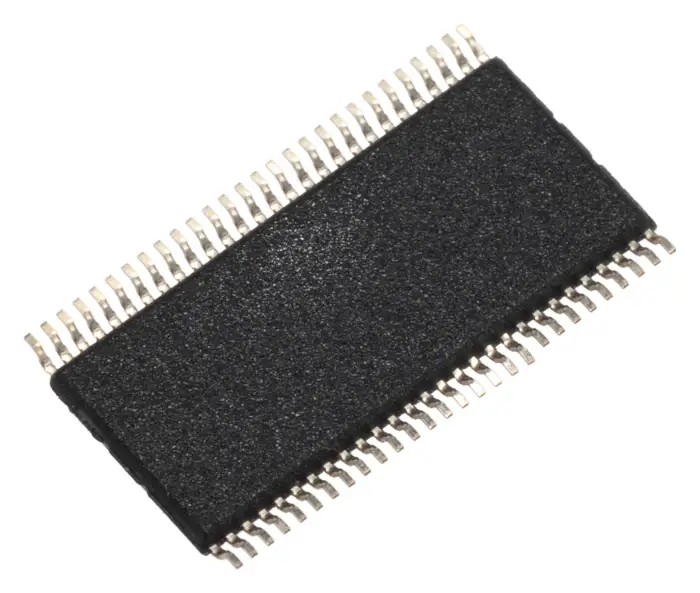

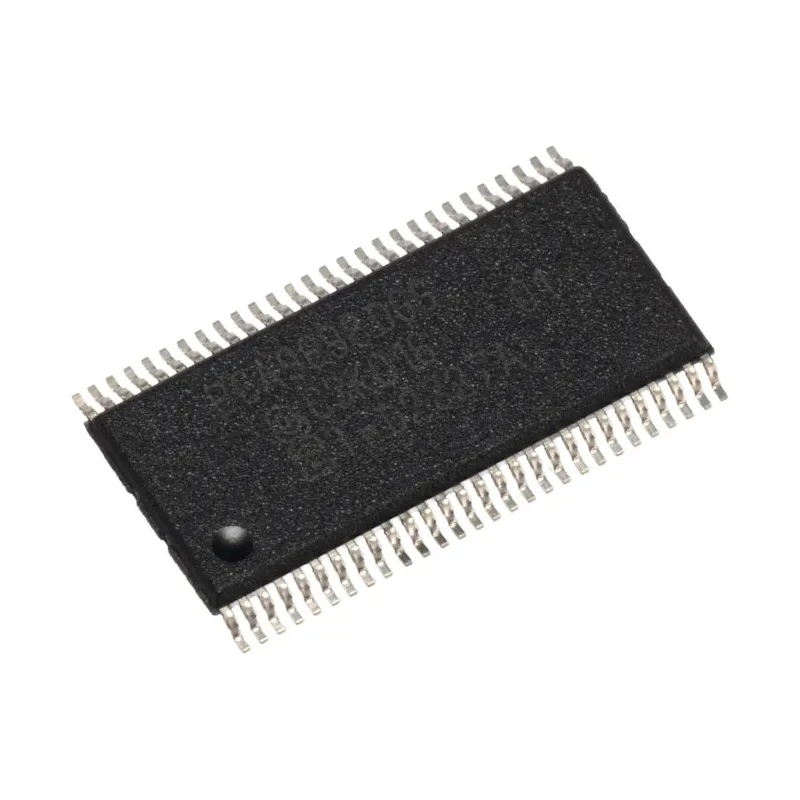

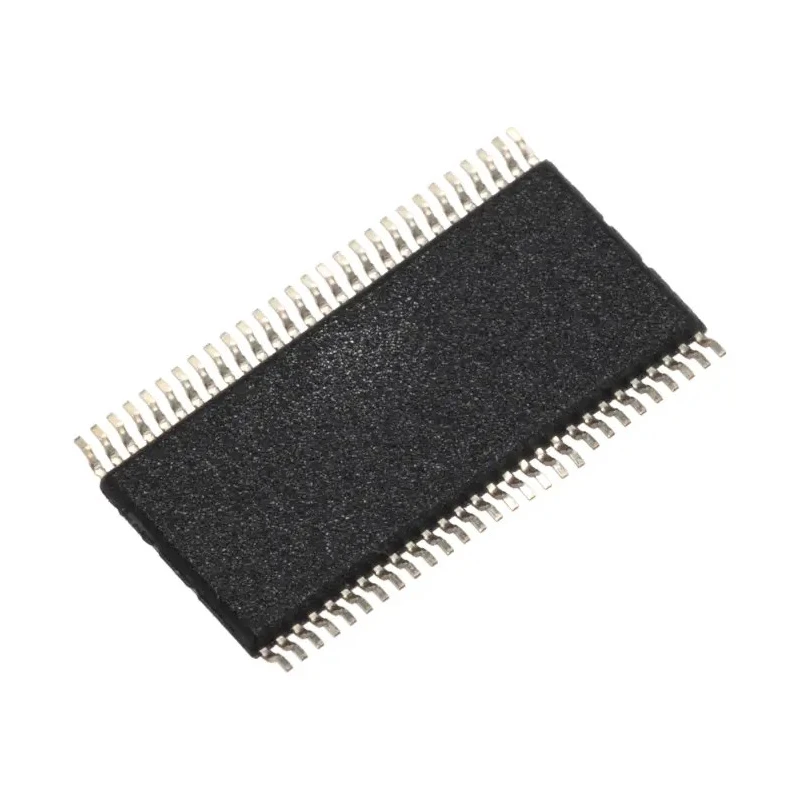

NXP 40-Channel OE & INT I/O Expander, TSSOP-56 Package, 1MHz, Surface Mount, 5.5V Max, PCA9698DGG,512

The NXP PCA9698DGG,512 is a highly integrated 40-channel output enable and interrupt (OE & INT) input/output (I/O) expander designed for expanding digital communication capabilities in embedded and industrial applications. Housed in a compact TSSOP-56 package, this device provides engineers and designers with a versatile solution for managing multiple digital signals and interfaces without increased board complexity.

This expander operates on a supply voltage up to 5.5V, with full digital logic compatibility down to 2.3V. With a high-speed clock operation of up to 1MHz, it is optimized for rapid switching, making it ideal for real-time control and monitoring tasks in electronic systems. The use of a surface-mount TSSOP-56 package enables easy integration into modern densely-packed PCBs, supporting high-volume automated manufacturing processes.

The PCA9698DGG,512 supports both output enable (OE) and interrupt (INT) functionalities, streamlining system responses to external events and toggling I/O states as needed. With a wide temperature operating range from -40°C to 85°C, this IC can be deployed in harsh industrial and commercial environments, ensuring reliable performance under demanding operating conditions.

Compliance with JEDEC standards - including JESD78, JESD22-A115, and JESD22-C101 - further guarantees reliable operation and interoperability with other system components. ESD protection as per JESD22-A114 ensures robust safeguarding against electrostatic discharge, making it suitable for sensitive automation, laboratory, automotive, and networking applications where signal integrity and protection are vital.

Typical use cases for the PCA9698DGG,512 include microcontroller and FPGA digital I/O expansion for industrial controllers, instrumentation boards, automated test equipment, building management systems, and networked embedded systems where real-time digital signals must be monitored or controlled across many channels. Its channel density and electrical characteristics are ideal for integration in high-reliability, industrial-grade systems.

As part of NXP's PCA9698 series, this I/O expander is trusted in applications demanding efficient digital signal routing and management. Explore further NXP semiconductor components and I/O Expander ICs in the Electronics & Electricals category on EnvMart for reliable and scalable solutions to your digital interface requirements.
