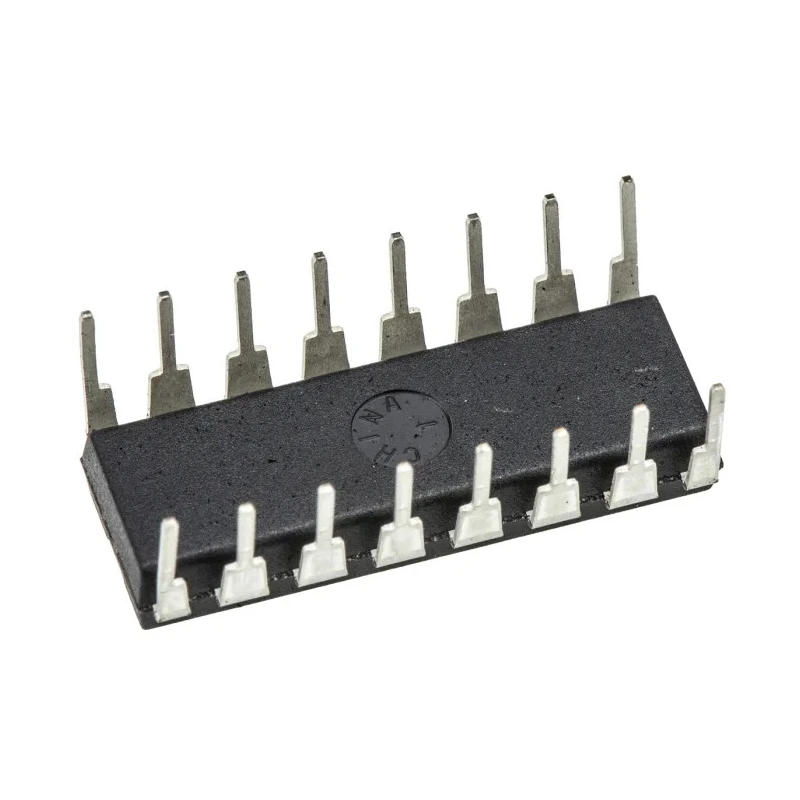

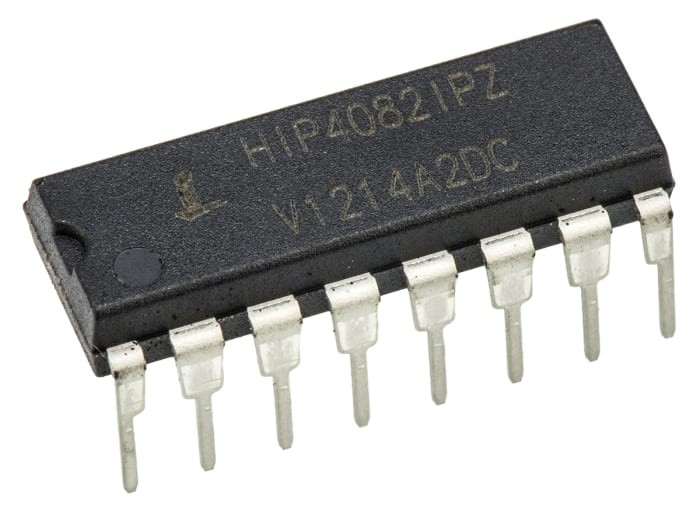

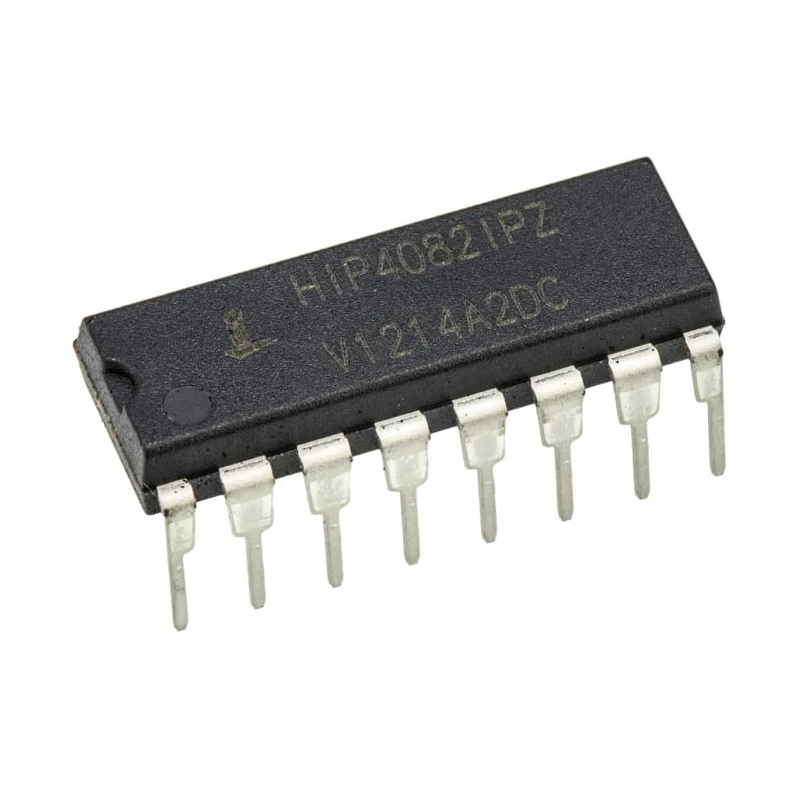

Renesas Electronics MOSFET Gate Driver, 4 Outputs, 1.25A, 16-Pin PDIP, 15V Supply HIP4082IPZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 4.95mm |
| Length | 19.68mm |
| Model | HIP4082IPZ |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | HIP4082 |
| Output Current | 1.25A |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Number of outputs | 4 |
| Rise Time | 9ns |
| Pin Count | 16 |
| Minimum Supply Voltage | 15V |
| Number of Drivers | 4 |
| Fall Time | 9ns |
| Driver Type | MOSFET |
Key Features
- Supports both half-bridge and full-bridge driver topologies.
- Delivers high input-to-output propagation delay performance.
- Operates at supply voltages up to 100V.
- Provides 1.25A maximum output current in a 16-pin PDIP package.
- Features fast 9ns rise and fall times for accurate switching.
- Works reliably in temperatures from -55°C to 125°C.
- Suitable for power management, industrial, and automotive applications.
Product Description
The Renesas Electronics HIP4082IPZ MOSFET Gate Driver is designed to efficiently drive MOSFET and IGBT devices in power management circuit applications. This high-performance driver is suitable for half-bridge, full-bridge, and three-phase topologies widely used in industrial and commercial equipment.
It provides four output channels with a maximum output current of 1.25A and is configured in a standard 16-pin PDIP package. The HIP4082IPZ maintains a rapid input-to-output propagation delay and offers fast switching with rise and fall times of just 9ns, making it ideal for applications where timing accuracy is essential.
The driver operates with a supply voltage of up to 15V and can be used at voltages up to 100V as required by high power circuits. The device supports a wide operating temperature range from -55°C to 125°C, ensuring reliable performance in harsh industrial, laboratory, or automotive conditions.
With through-hole mount type for convenient installation, the HIP4082IPZ simplifies integration into existing systems. Its robust design is well-suited for use in motor control, power supplies, inverters, and various power management and switching applications, including manufacturing, processing, and laboratory instrumentation where precise gate control is critical.
The compact PDIP form factor and multiple outputs allow engineers to implement multi-phase and complex gate driver circuits. The HIP4082IPZ offers high-speed operation, exceptional thermal stability, and rugged durability, addressing the demands of modern electronics in industrial, HVAC, manufacturing, automotive, and energy environments.
Explore more solutions in MOSFET Gate Drivers and Renesas Electronics products within the EnvMart semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HIP4082IPZ provides a maximum output current of 1.25A.
It operates reliably in temperatures ranging from -55°C to 125°C.
This model is available in a 16-pin PDIP package.
The rise and fall times for the output signals are both 9ns.
The driver operates at a supply voltage of up to 15V and can handle voltages up to 100V in high power circuits.
It features four output channels.
This model is suitable for power management, industrial applications, and automotive applications.
The height is 4.95mm and the width is 7.11mm.
It features a through-hole mount type for convenient installation.
The HIP4082IPZ is a MOSFET driver.
This model has a pin count of 16.
It belongs to the HIP4082 series.
